Specifications
QT10-15 ement sand hollow block making machines1.full automatic,simens motor
2.ISO9001/BV
3.Delta PLC
4.can Change moulds
brick factoory QT1-0-15 ement sand hollow block making machines
I.Main features and parts inroduction of brick factoory QT1-0-15 ement sand hollow block making machines :
Our automatic hydraform concrete fly ash brick making machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of fly ash bricks products:
1.Total weight 15T.
Every part all use thick steel plate.
2.Total power 51kw,vibration force 100KN,frequency 2850r/min.
To ensure the blocks have high density, high strength.
3.Moulding cycle is 15-20s. Here we ensure not more than 18s per mould, to achieve the intended capacity.
You can test the machine, if not that, we will return shipping with no doubt.
|
|
I.Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds; B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50% |
|
|
II. Hydraulic station use import Electro-hydraulic double proportional control valve:
A.The pressures and speeds can be adjusted according to machine requirements.
B. Can save more energy, reduce the impact to the machine, prolong block machine life. |
|
|
III. Shaft Transmission.
Patent product, less loss of motive &vibrating force, save more power.
Other suppliers’ are chain transmission. |
|
|

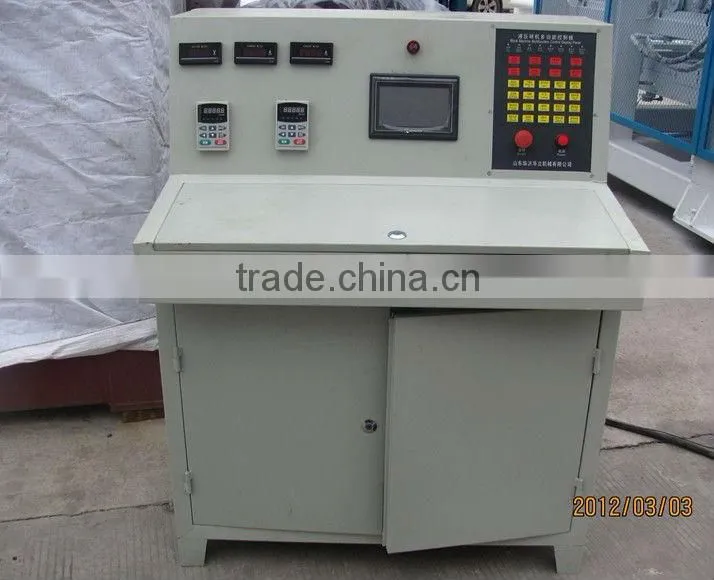

IV.PLC station
A.Adopt the latest technology, very easy touch screen operation.
B.Can warning the faults and displaying the faults place, easy to eliminate the problem, recover production in short time.
C.Power saving: 30%; |
II.Technical parameters of brick factoory QT1-0-15 ement sand hollow block making machines ;
Main Technical Specifications | |
Production per Mould: |
10 pcs/mould (Standard Block: 390x190x190mm) |
54 pcs/mould (Solid Block: 240x115x53mm) | |
20pcs/mould (Interlock Paver: 225x112.5x60mm) | |
21pcs/mould (Holland Brick:200x100x60-80mm) | |
Cycle Time: |
15-20 seconds |
Production per Day (8 Working Hours): |
Hollow Block (400x200x200mm): 11200-14400pcs |
Solid Block (240x115x53mm): 77760-86400pcs | |
Interlock Paver (225x112.5x60mm): 17280-21600 pcs | |
Holland Brick (200x100x60-80mm): 2419230240 pcs | |
Vibrating Frequency: |
2900 rolls/minute |
Vibrating Force: |
100 KN |
Motors Power: |
38 KW |
Machine Dimensions: |
9000x2060x2868mm |
Pallet Size: |
1250x880x25mm |
Gross Weight: |
about 15T |
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products: |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
We support technical for the automatic fly ash brick making machine,dispatch engineer to install the machine and training workers,supply enough spareparts,with best after-sales service.One year warranty,if fly ash bricks making machine have any faults in this period,we will keep in good repair by free.

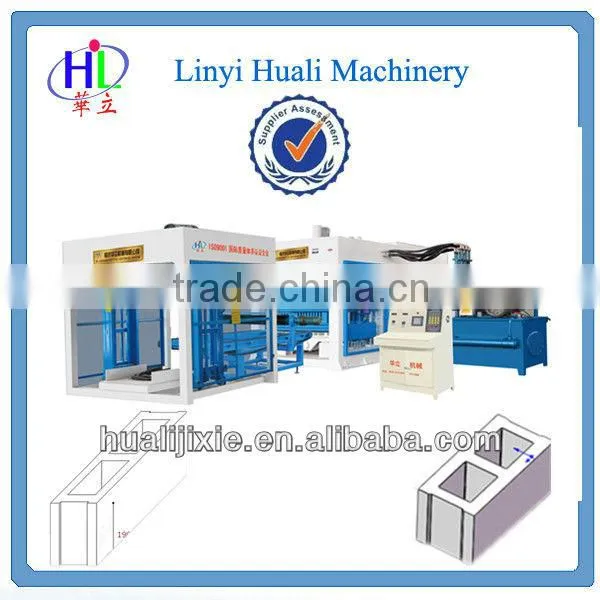

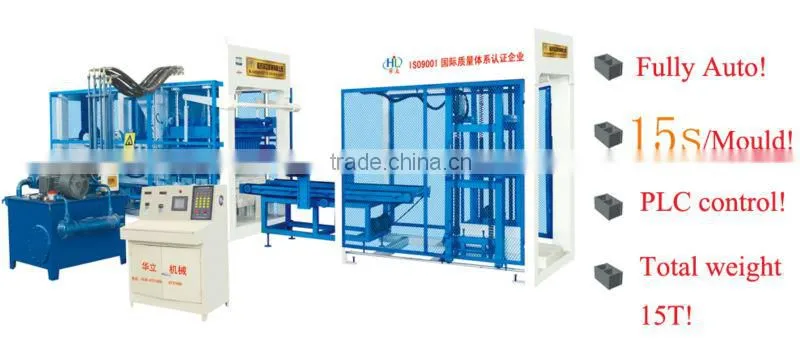

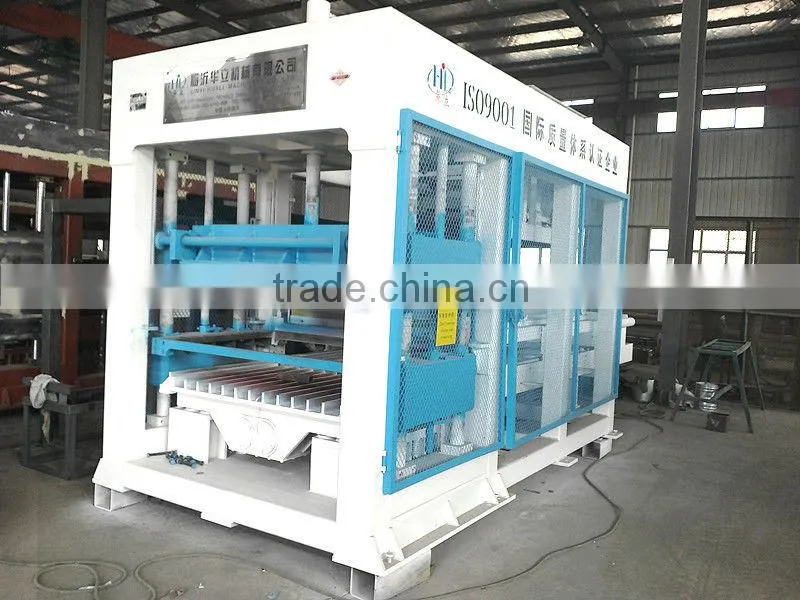

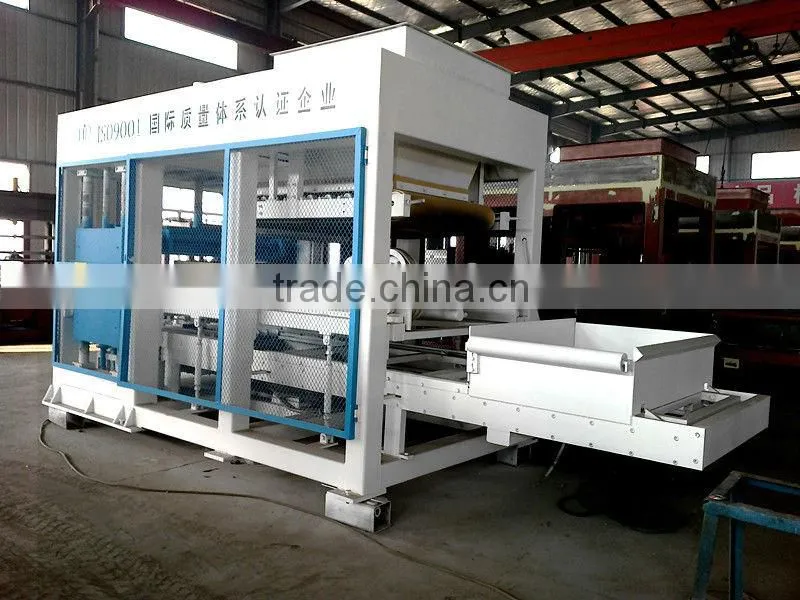

III..Pictures of QT10-15 full automatic fly ash brick making machine
IV.Some of our cuntomer all over the world
V.Certification of QT10-15 full automatic fly ash brick making machine
