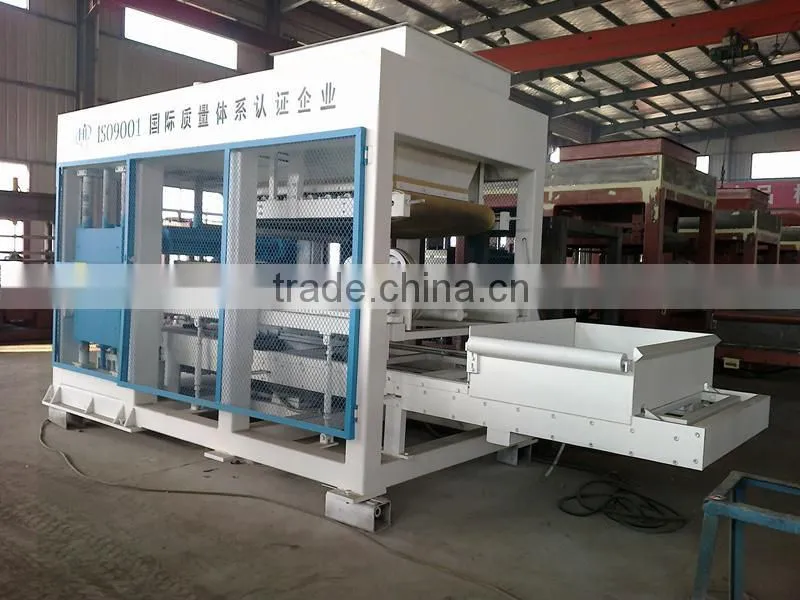

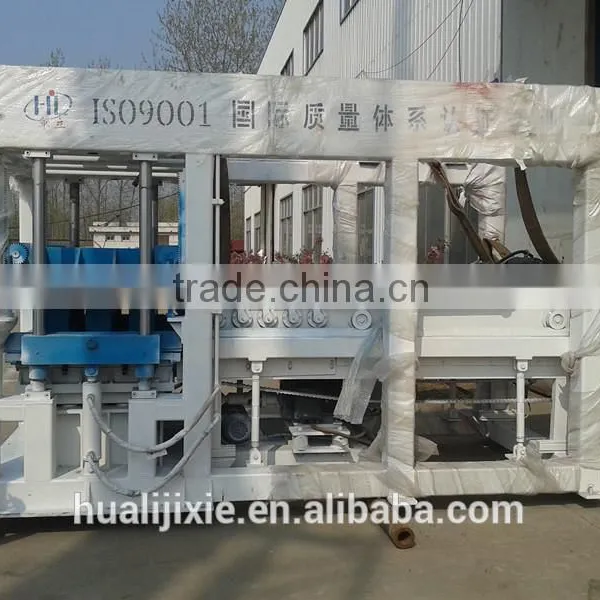

QT8-15 automatic concrete brick making machine for sale
- 50 Set / Sets per Month
- Qingdao
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Other, Hollow,solid,paving,interlocking blcoks | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 10400~11200/8h 390*190*190mm | Place of Origin: | Shandong, China | Brand Name: | Huali Brand cement brick block making machine price |
Model Number: | QT8-15A cement brick block making machine price | Voltage: | 220V/380V/440V | Power: | 42.5kw |
Dimension(L*W*H): | 5320*1950*2680mm | Certification: | ISO9001/BV | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

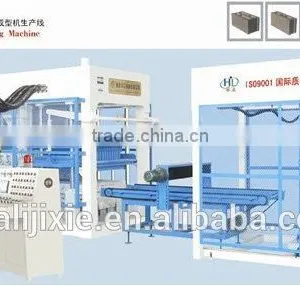

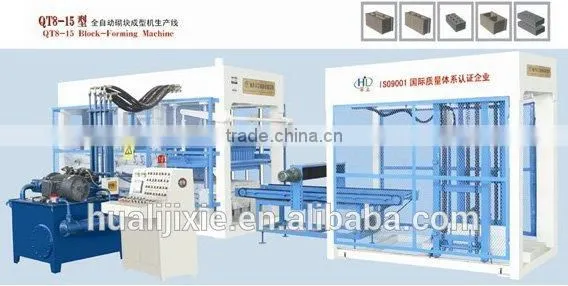

QT8-15A full automatic cement brick block making machine price
overall size | 5200*1950*2680mm |
molding cycle | 15-18S |
pallet size | 990*880*20mm |
weight | 13.5T |
rated power | 42.5KW |
Vibration force | 100KN |
Vibration frequency | 2850-4200/min |

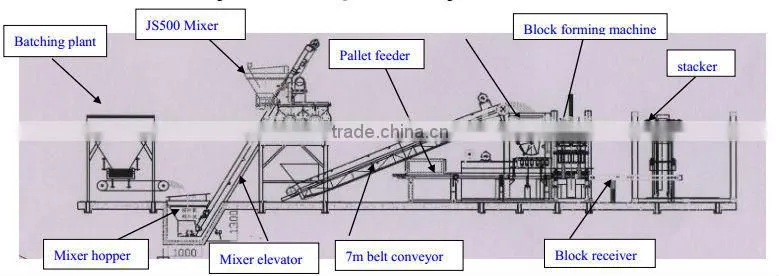

Mixer Model | JS500 |
Item | specification | Quantity/Hour | Pcs/Mould |
concrete block | 390*190*190 | 1300-1400 | 8 |
solid block | 240*115*53 | 7560-8894 | 42 |
porous block | 240*115*90 | 3780-4420 | 21 |
3. Details of Raw Material :
1). Area: Workshop area: 350-400m2, all factory area 3000m2, the bigger, the better.
2). Workers : 5 or 6
3). Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4).Hollow block weight:
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5). Raw material consumption per day:100-110T
6). Water consumption per day:3%-5% of raw material weight.
4. cement brick block making machine price guarantee:
We give our block making machine one year guarantee,during the period we can supply spares if they are broken.

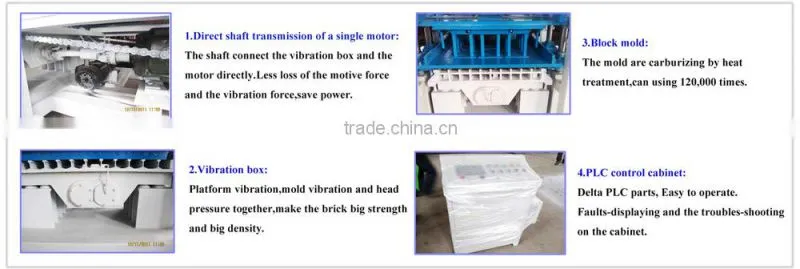

5. cement brick block making machine price Advantages:
6. cement brick block making machine price Intruduction:
1.QT8-15A adopt the frequency conversion control,so all its speeds and pressures can be adjustable.So the operation running of the machine is smooth and steady;reduce the impacts and noises;and increased the equipment stability.
2.The main sections and parts are treated by carburizing so that they are sturdy and wear resisting,and the cost in vulnerable parts are decreased.
3.Import main parts of electrical appliances and hydraulic system,so service life has been increased.
4.The trouble Warning System:Displaying the guidance and indications in maintenance and in trouble-shooting in time,in order to avoid any unnecessary losses.
7.Application:

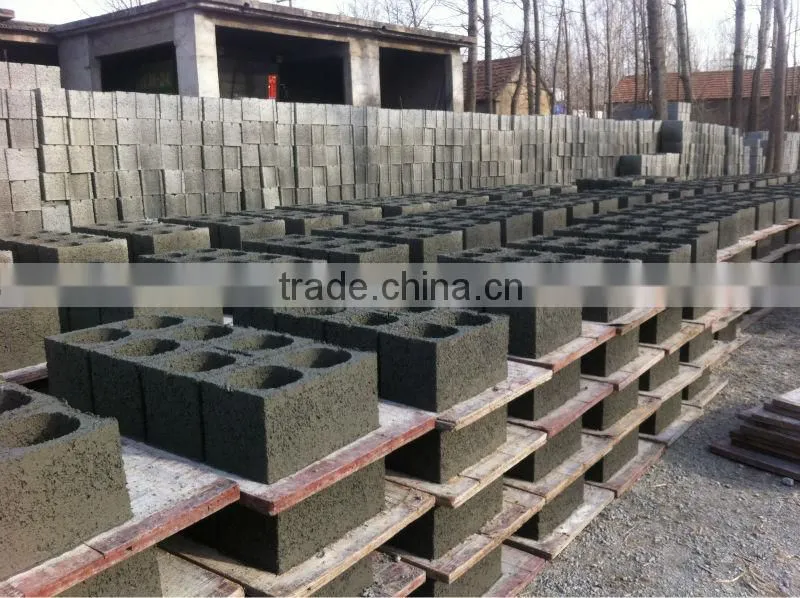

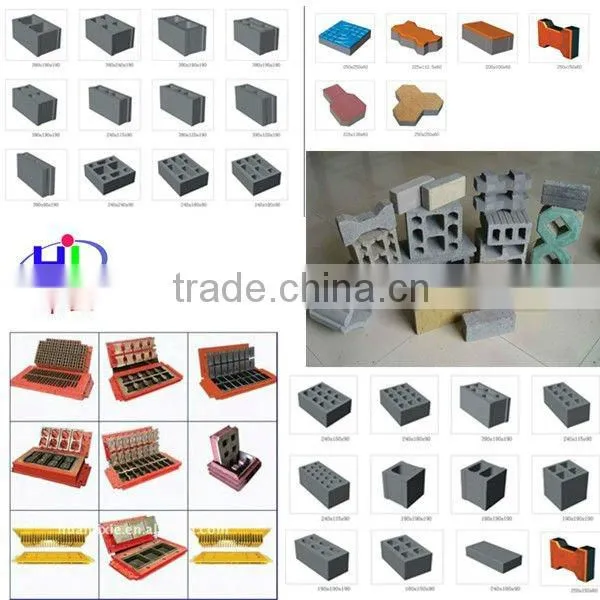

grass land blocks series, application examples for porous concrete block (as shown in the pictures)

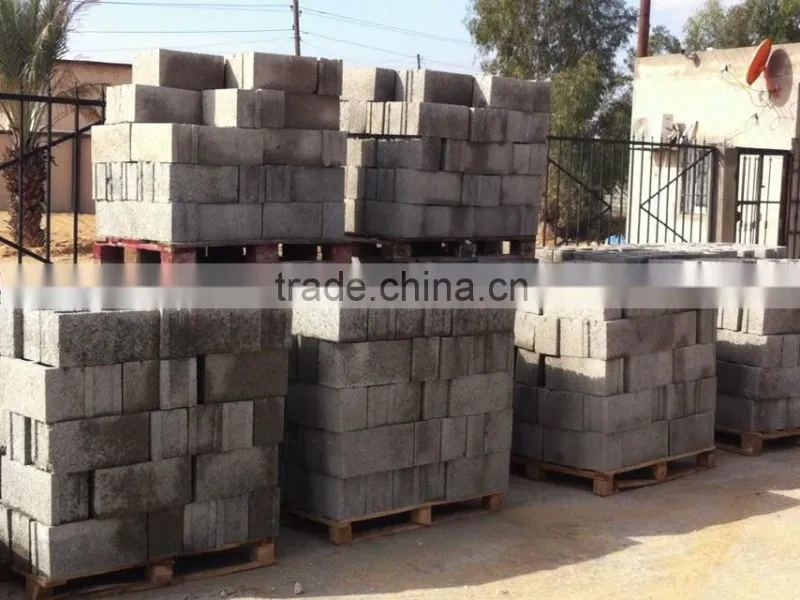

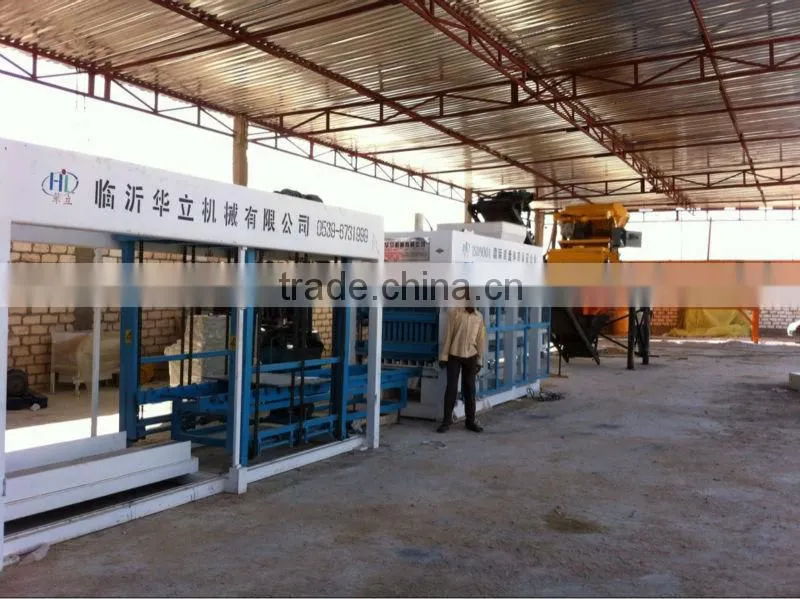

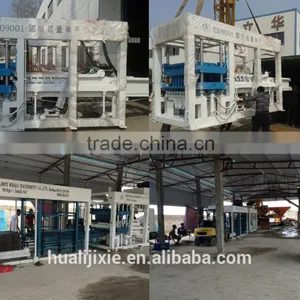

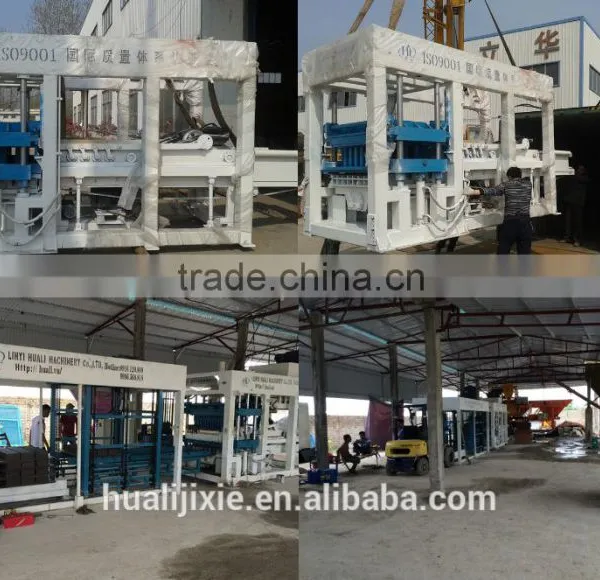

Successful cases:
You are always welcomed to visit our company and workshop!
Terms & Conditions:

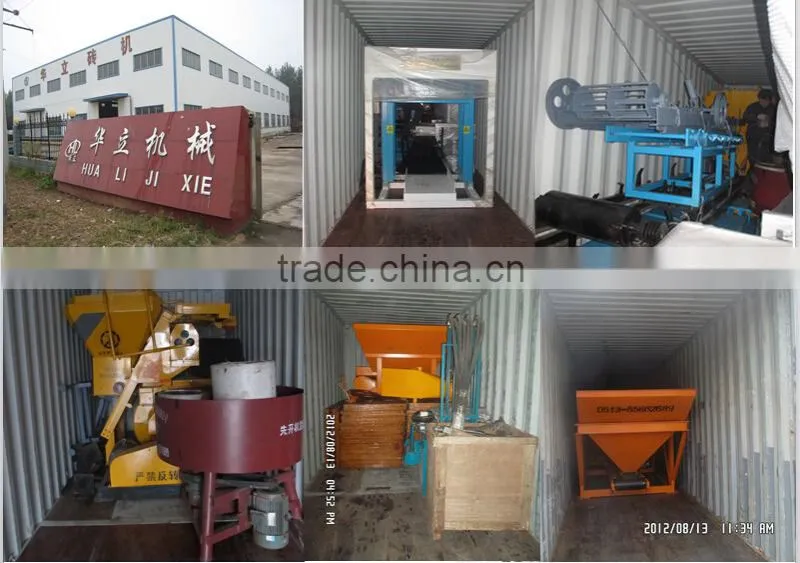

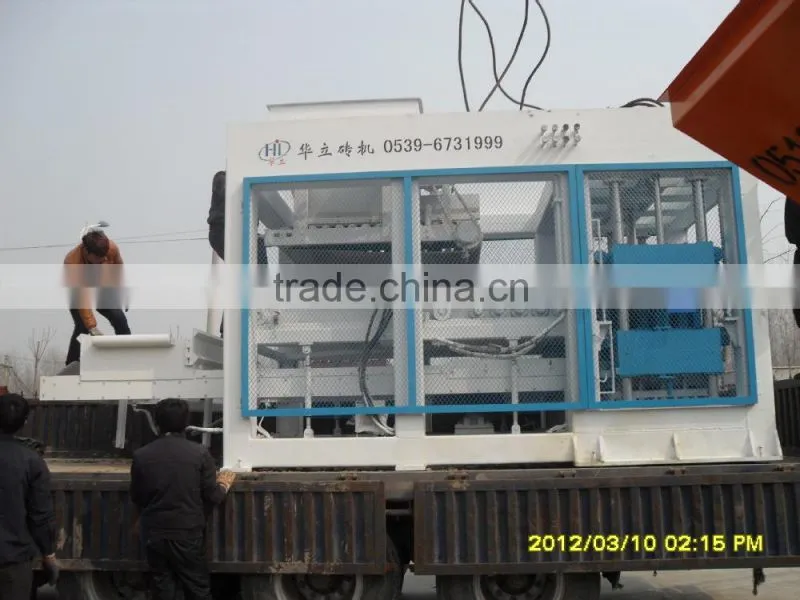

1) 1. FAST SHIPPING from our Linyi China Factory!
2. Delivery time: 15-20 working days after receive deposit.
3. Shipping Cost: Depending on the cement brick block making machine price size and weight of total order.
4. Accept the FOB/CIF/CNF terms of trade.
5. B/L will be sent to you as soon as after delivery.
2) Payment Term: 30% deposit,70% balance by T/T, Western Union or Money-Gram etc.
Warranty Period: One year after installation finished at buyer's factory.
As a professional exporter,our target is to serve worldwide clients with high-quality products,greatreliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
A:1) Competitive price(direct manufacturer)

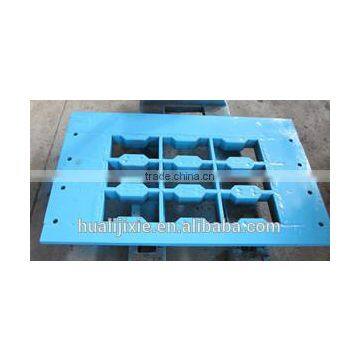

2) Can design different brick/block mould according to your size.
3) Our machine use strongth hight-strength steel structure,block mould all by heat treatment.
can use thirty million times.
4) Great after sales service!
Producing Video on YouTube: /watch?v=gO2QyCH753g
