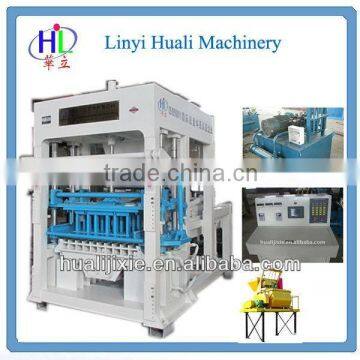

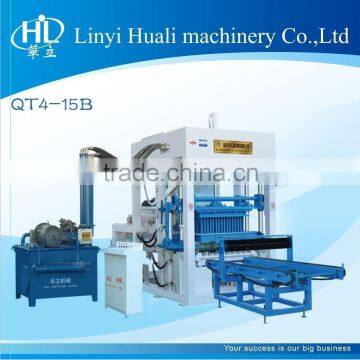

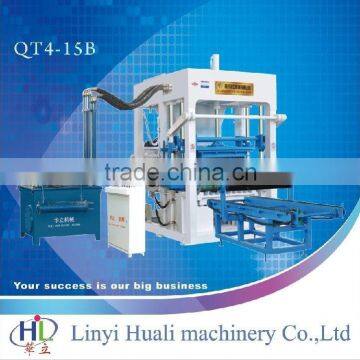

Linyi Huali Automatic and Hydraulic Block Making Machine
(full automatic&hydraulic machine,medium type machine, color pavers machine,reasonable &competitive price)
1. Technical Specifications
Main Technical Specifications | |
Overall Size | 3000*2200*2900mm |
Molding Cycle | 15-20S |
Pallet Size | 935*580*20/25mm |
Weight | 8.5T |
Rated Power | 15.5kw |
Vibration Force | 60KN |
Vibration frequency | 2850/min |
Mixer model | HL350 |
2. Capacity

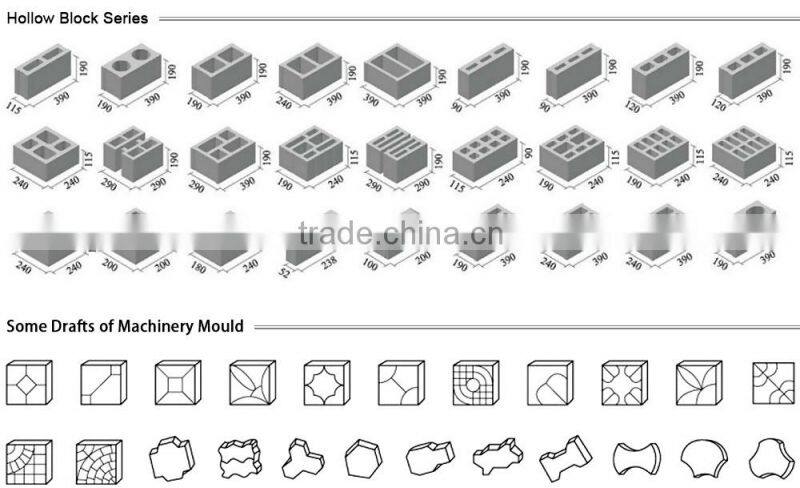

Item | Specification(L*W*H) | Quantity per hour(PCS) | PSC/Mould |
Concrete block | 390×190×190mm | 640-720 | 4 |
Solid block | 240×115×53mm | 3800-4500 | 30 |
Porous block | 240×115×90mm | 1900-2250 | 14 |
3. Introduction
1).Import PLC&Hydraulic control station.
2).Full automatic production line,can make difference blocks by change mold.
3).Table-vibrating,head-vibrating&mold-vibration together, to sure the blocks have high density and strength.
4).Get the certification of ISO9001/BV.One year warranty free.
4. Workshop and Brick products details
1). Area: Workshop area: 150-200m2, all factory area 2000m2, the bigger, the better.
2). Workers : 5 or 6 workers.
3). Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4). Hollow block weight:
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5). Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,Pavers and Interlocking bricks can reach 12-15Mpa,so they have a higt pressure,can be widely used.
6). Raw material consumption per day:100-110T
7). Water consumption per day:3%-5% of raw material weight.
5.Some of our cuatomers automatic cement hollow block machine

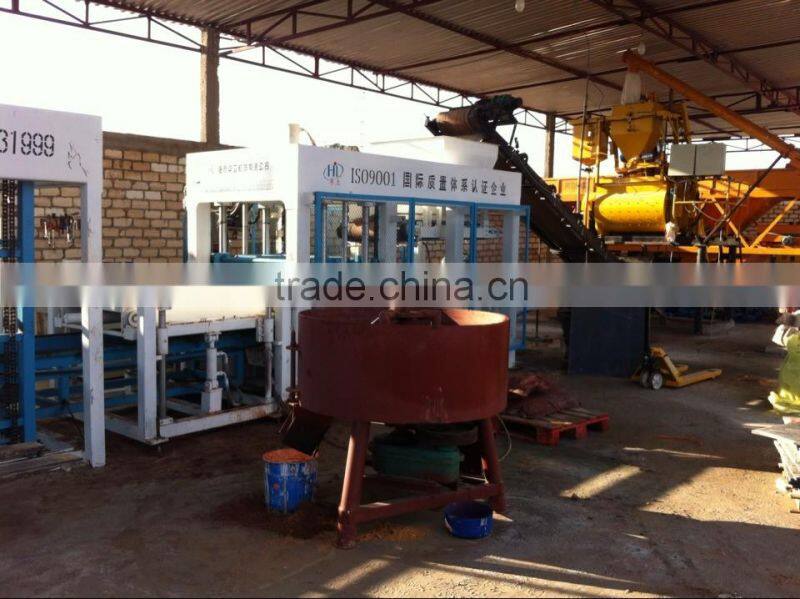

Full automatic cement block machine production line
