Specifications
QT10-15 concrete cover blocks making machine1,PLC control Germany technology
2.Europe standard switches
3.ISO9001/CE/BV

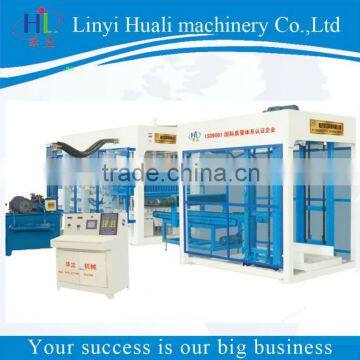

QT10-15 concrete cover blocks making machine
I.Technical Specifications of QT10-15 concrete cover blocks making machine :
| Overall size | 9000*2060*2680mm |
| Moulding cycle | 15-20s |
| Pallet size | 1250*880*30mm |
| Power | 48kw |
| Vibration force | 100KN |
| Weight | 15T |
| Vibration frequency | 2850/min |
| Mixer | JS750 |
II.Productivity of QT10-15 concrete cover blocks making machine
| Item | Specification(L*W*G) | Quantity(pcs/h) | pcs/mould |
| Conrete block | 390×190×190 | 1400-1800 | 10 |
| Solid block | 240×115×53 | 9720-10800 | 54 |
| Porous block | 240×115×90 | 4860-5400 | 27 |
III.Several advantages of automatic hydraform concrete block machine algeria:
(1)large productivity,different bricks
(2)low investment,high efficiency,can recover cost quickly
(3)training workers and support technical,with best after-sale service
IV.Main features and parts introduction of automatic hydraform concrete block machine algeria:
1.Import hydraulic and PLC control system,workers only need simple training before work,have function of fault warning,can reduce impact to machine,prolong life of machine.
2.Pallet Feeder: Automatic,stacking pallets into the feeder,the chain will lead pallets to mould area and receive blocks.
3.Vibrating section: Single frequency conversion motor,shaft drive transmisson technology.
4.Semi-closed feeding hopper:Material from hopper directly to skip car.
5.Doulbe-row function stacker:Saving the man power,transporting vehicles as well as a lot of cost.That is a patent product.
V.Full automatic brick production line of QT10-15 automatic hydraform concrete block machine algeria
V.Some our clients of QT10-15 automatic hydraform concrete block machine algeria
