automatic light weight brick making machine
1.AAC PRODUCTION LINE Introduce:
Aerated concrete brick (light brick ) is the light and porous buidling material. It has
light,keeping temperature ,can’t burn and other advantages . it can be made into many kinds of bricks (for example : 600×250×250 ,600×200×200,600×150×200,600×100×100) ,they could be used industry building and common building . they are more and more popular in the world .in the future ,they will replace the Clay brick completely .
2.The common conception:
Common concrete density is usually 1600-2400kg/m3,but Areated concrete are 500kg/m3,600kg/m3,700kg/m3.It has not the big grain ,main use silicon material (for example: coal ash , sand , stone dust and others ),through making the material small( for example sand ), they can be used directly if has enough degree of small (for example coal ash ).

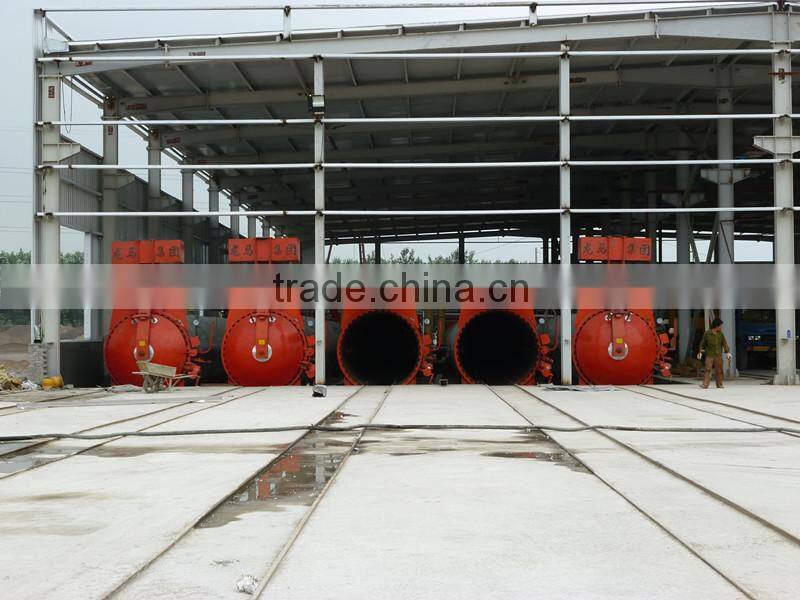

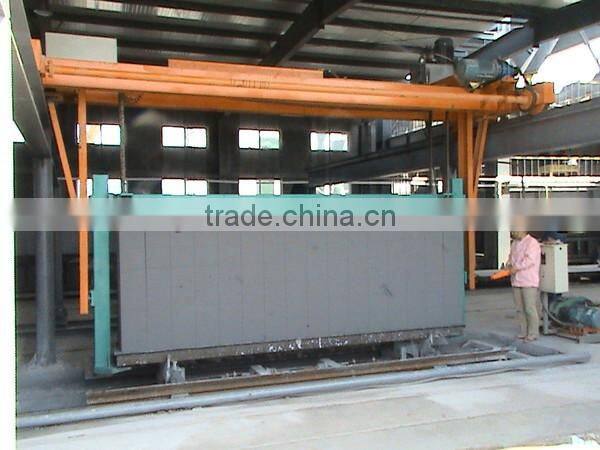

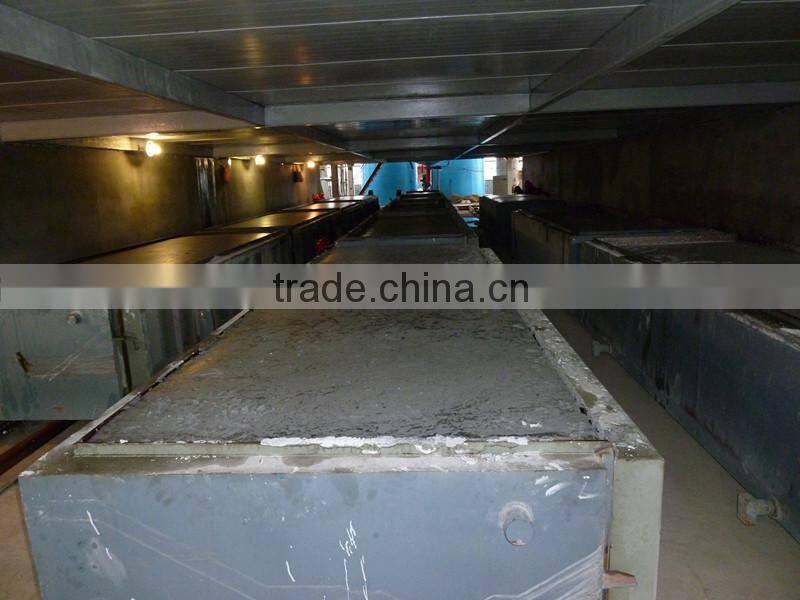

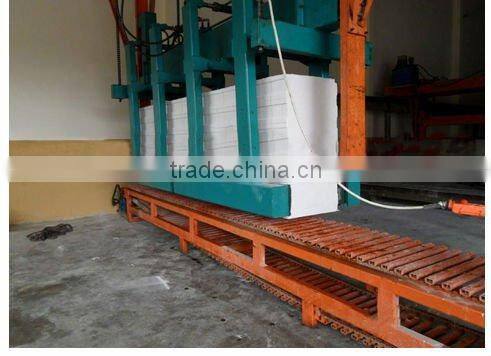

Mixing calcium material ,lime ,cement ,water to a special slop , then add the aluminum dust and the additive. Make the aluminum dust and the special slop have a Chemical reflect . then produce Hydrogen to make the concrete slop to expanding or swell,foam . Next , put them into the curing room to concreting ,cutting ,steaming ,curing . last , there will bacome the light brick . the porous rate is 70-80%.( according the line photo)
4.the common formula of the light weight brick:
Sand or flyash (percentage) |
69% |
Lime (percentage) |
20% |
Cement(percentage) |
8% |
Gypsum(percentage) |
3% |
Aluminum(percentage) |
0.074% |
5.The advantage of the AAC block.
1.keep the temperature
It has many are porous , the delivery hearting coefficient is 0.9-0.22W/(mk),the same as
1/4 or 1/5 of clay brick ,so it is best materials now in the world .
2.Light weight
Areated concrete density is usually 500-700kg/m3,(according the market ti produce ),same as
1/3 of clay brick and 1/5 common concrete.So use the Light brick can reduce the weight of the
beam of roof and pillar press best . then you can see ,it can save the material and cost ,it also
fighting shaking .
3.have many kinds material ,have lowest waste
Main Material : coal ash ,sand ,waste mine material ,coal stone,stone dust and other
silicon materials Save more soil , when produce 10000 m 3 light weight brick , will use
ash ,and save coal ash using area 400m2,save burning clay brick 3500m2 .
4.The flow-process diagram:
LINYI HUALI MACHINERY CO.,LTD is a factory specialized in the AAC production line and the block machine for many years with high quality and competitive price.
We ensure:
1.We warranty the product quality for 1 year.
2.We dispatch the technicians to your side for installing the machine ,commissioning and training your workers.
3.We supply the good quality with good price.
4.Good after sale service.
