High Quality PE Series Stone Jaw Crusher
We put you first. And make you ahead.

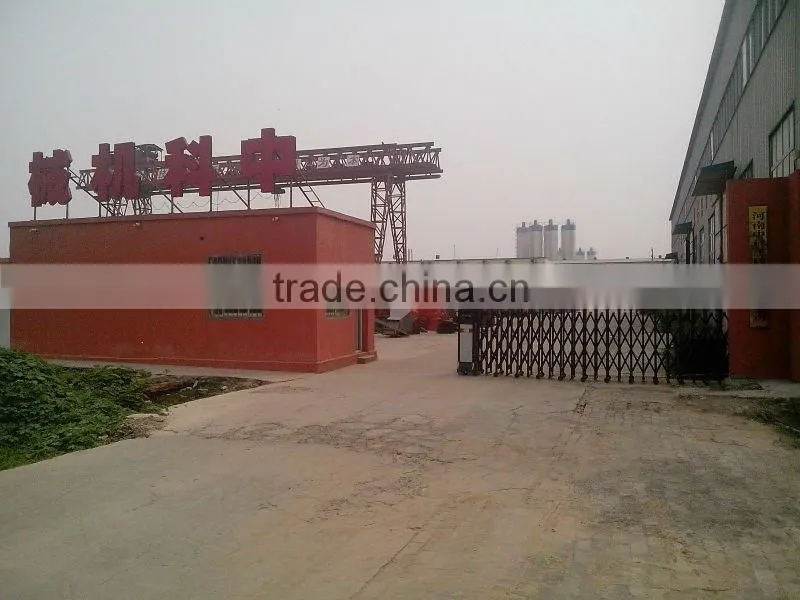

Company Introduction
We Henan Zhongke Engineering & Technology Co., Ltd. is a manufacturer and exporter of building material equipment & mining machinery in China.
Our main products are AAC block production line, stone crushing plant, cement machinery, active lime production line, jaw crusher, impact crusher, ball mill, rotary kiln, dryer, dust catcher, and etc.
All products are manufactured in strict accordance with ISO 9001:2008 quality standards. We do best quality products, and provide our best service for customers from home and abroad.

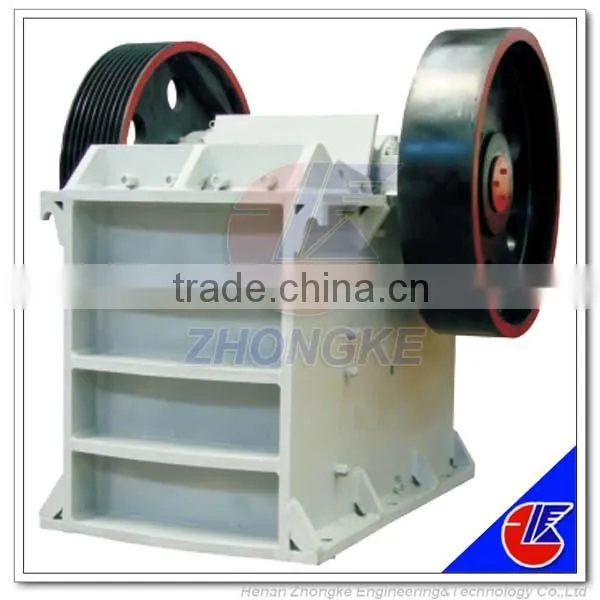

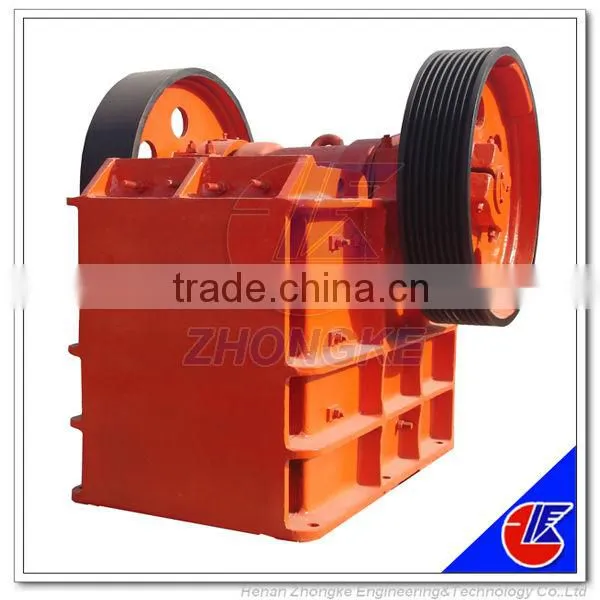

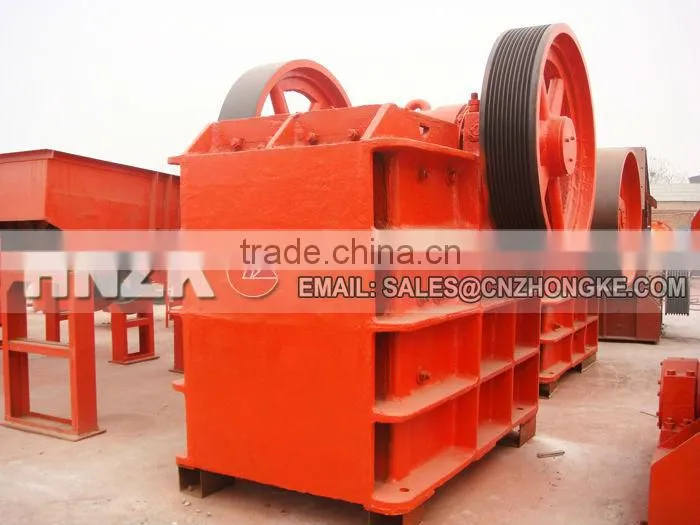

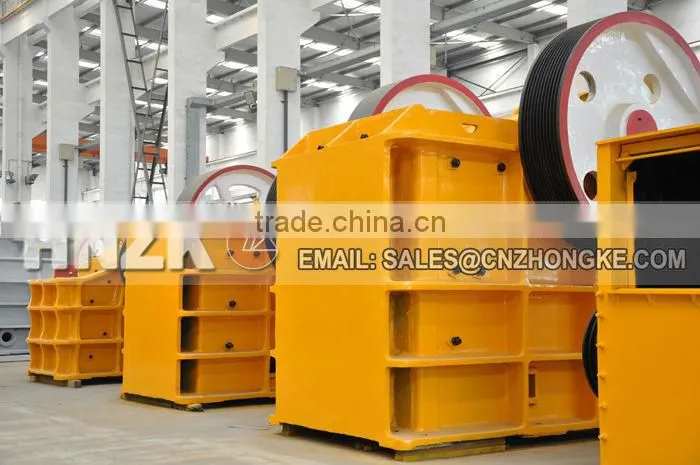

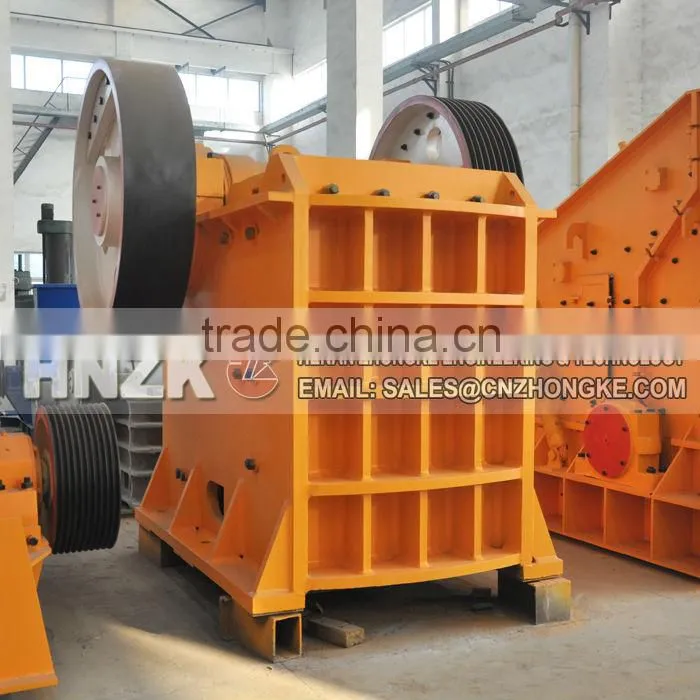

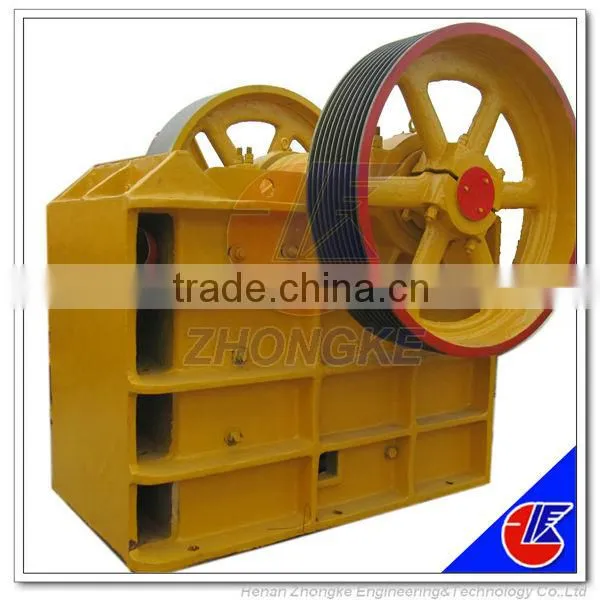

High Quality PE Series Stone Jaw Crusher Brief Introduction:
Jaw crusher features in
1. high broken ratio,
2. even product size,
3.simple construction,
4. reliable operation,
5. easy maintenance,
low consumption.
Jaw crusher mainly applicable to
No. 1. various ores and big blocks’ primary and secondary crushing,
No. 2. widely used in
1. mining,
2. quarry,
3. metallurgy,
4. building material,
5. highway,
6. railway,
nstruction waste processing,
8. water conservancy,
9. chemical industry, etc.
Why choose us?
Our PE series stone jaw crushers have:
1. Jaw crusher is stable performance;
2. Jaw crusher is even final particles and high crushing ratio;
3. Optimum structure for reliable quality;
4. Easy access to wear areas for inspection and maintenance;
5. Efficient, non-choking operation;
6. Higher crushing ratio; Lower power consumption;
7. Excellent jaw plate material.

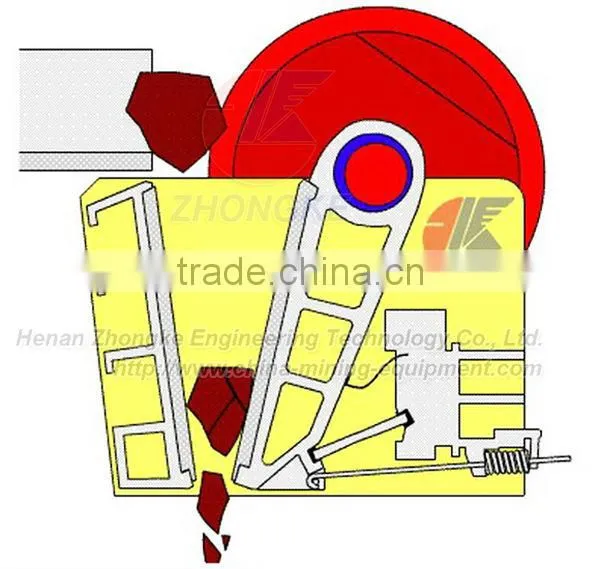

Working Principle of High Quality PE Series Stone Jaw Crusher:
High quality pe series stone jaw crusher is typically of the square opening design, and secondary jaw crusher is of the rectangular opening design. Jaw Crusher reduces large size rocks or ore by placing the rock into compression.

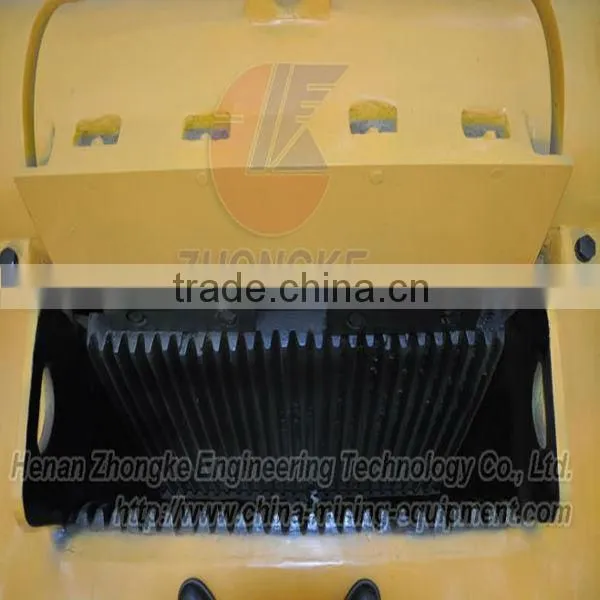

A fixed jaw board, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The spaces at the bottom of the “V” aligned jaw plates decide the crusher product size gap, or the size of the crushed product from the jaw crusher. The rock remains in the jaw until it is small enough to pass through the gap at the bottom of the jaws.
High Quality PE Series Stone Jaw Crusher Main Technical Parameters:
model |
feeding |
maximum |
adjustable |
Handling |
eccentric shaft |
Motor |
total weight |
Overall dimensions |
PE-150×250 |
150×250 |
125 |
10-40 |
1-3 |
250 |
5.5 |
0.8 |
720×660×850 |
PE-200×300 |
200×300 |
180 |
15-50 |
2-6 |
260 |
7.5 |
1.2 |
910×750×990 |
PE-200×350 |
200×350 |
180 |
18-70 |
3-10 |
260 |
11 |
1.5 |
1000×870×990 |
PE-250×400 |
250×400 |
210 |
20-60 |
5-20 |
300 |
15 |
2.8 |
1300×1090×1270 |
PE-400×600 |
400×600 |
340 |
40-100 |
16-60 |
275 |
30 |
7 |
1730×1730×1630 |
PE-500×750 |
500×750 |
425 |
50-100 |
40-110 |
275 |
55 |
12 |
1980×2080×1870 |
PE-600×750 |
600×750 |
500 |
150-200 |
80-240 |
275 |
55 |
15.8 |
2070×2000×1920 |
PE-600×900 |
600×900 |
500 |
65-160 |
50-180 |
250 |
55 |
17 |
2190×2206×2300 |
PE-750×1060 |
750×1060 |
630 |
80-140 |
110-320 |
250 |
90-110 |
29 |
2660×2430×2800 |
PE-800×1060 |
800×1060 |
640 |
160-220 |
130-330 |
250 |
110 |
29.8 |
2710×2430×2800 |
PE-830×1060 |
830×1060 |
650 |
160-220 |
150-336 |
250 |
110 |
30.7 |
2740×2430×2800 |
PE-870×1060 |
870×1060 |
660 |
200-260 |
190-336 |
250 |
110 |
31.5 |
2810×2430×2800 |
PE-900×1060 |
900×1060 |
685 |
230-290 |
230-390 |
250 |
110 |
33 |
2870×2420×2940 |
PE-900×1200 |
900×1200 |
750 |
95-165 |
220-450 |
200 |
110 |
52 |
3380×2870×3330 |
PE-1000×1200 |
1000×1200 |
850 |
195-265 |
315-500 |
200 |
110 |
55 |
3480×2876×3330 |
PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
180 |
160 |
100.9 |
4200×3300×3500 |
PEX-150×750 |
150×750 |
120 |
18-48 |
8-25 |
320 |
15 |
3.8 |
1200×1530×1060 |
PEX-250×750 |
250×750 |
210 |
25-60 |
13-35 |
330 |
30 |
5.5 |
1380×1750×1540 |
PEX-250×1000 |
250×1000 |
210 |
25-60 |
16-52 |
330 |
30 |
7 |
1560×1950×1390 |
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-61 |
330 |
37 |
9.7 |
2140×1660×1500 |
PEX-300×1300 |
300×1300 |
250 |
20-90 |
16-105 |
300 |
55 |
15.6 |
2720×1950×1600 |

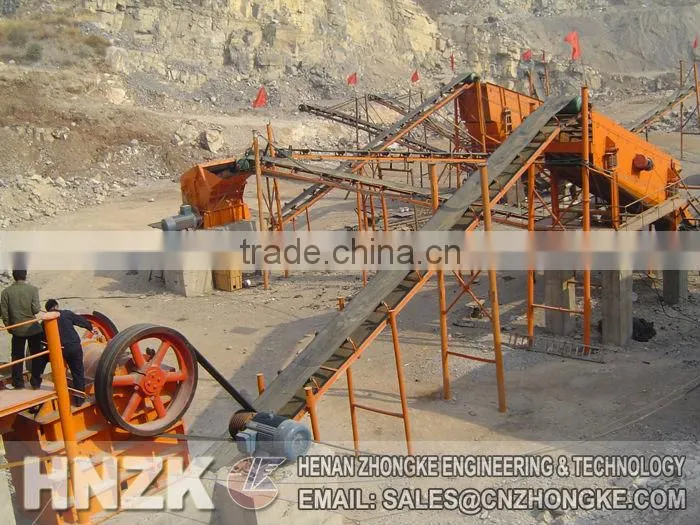

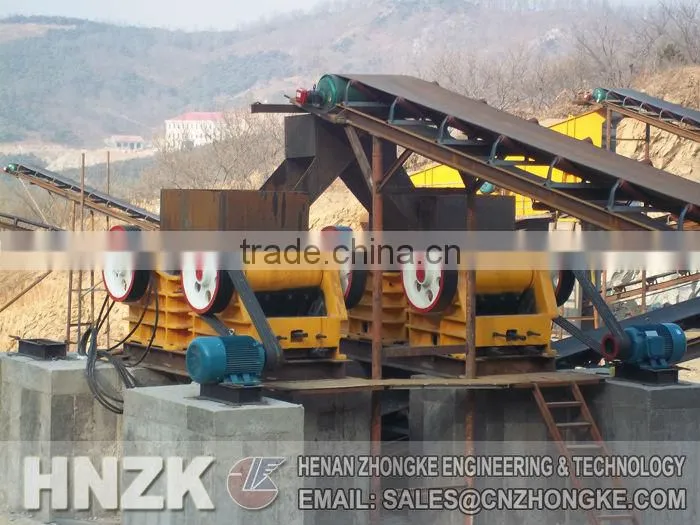

Scenes of High Quality PE Series Stone Jaw Crusher Production Line:
Packing & Shipping:
Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth.
We export through Qingdao Port, also can be nominated by customer.
We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.
We believe quality is the whole life of our company!
Sincerely welcome you to visit our factory!
]
