Ball Mill for Coal Gold Ore Iron Ore Cement Clinker

Ball Mill for Coal Gold Ore Iron Ore Cement Clinker thumbnail-1
Ball Mill for Coal Gold Ore Iron Ore Cement Clinker photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Zhongke
Model Number:
1830*7000
Contact Supplier Request Quote Chat Now
Henan Zhongke Engineering & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Zhongke
Model Number 1830*7000
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Weight 36t
Ball mill
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics
It can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear.

The materials are transferred to the grinding chamber through the quill shaft uniformly.

There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.

The ground materials are discharged through the discharging board thus the grinding process is finished.

Parameters



Model

input size(mm)

Output size(mm)

Weight of ball(t)

Speed of bucket(r/min)

Power(kw)

Capacity(t/h)

Weight(kg)

900*1800

15

0.075-0.89

1.9

37

15

0.5-2

3400

900*2100

15

0.075-0.4

2.3

37

18.5

0.4-2

3900

900*3000

25

0.075-0.4

3.85

35

30

1.1-2.5

7780

1200*2400

25

0.075-0.4

4.6

35

30

1.3-3.2

8650

1200*2800

25

0.075-0.4

5.4

35

37

1.5-3.7

10020

1200*4500

25

0.075-0.4

8.6

35

45

2.7-6.79

14000

1500*3000

25

0.047-0.4

9

29

75

3.3-8.2

14122

1500*3500

25

0.047-0.4

10.5

29

75

3.3-8.5

15636

1500*4500

25

0.047-0.4

13.5

29

90

4.5-12

20000

1500*5700

25

0.047-0.4

17

29

110

2.6-14

25000

1830*3000

25

0.047-0.4

13.5

24

135

4-15

28000

1830*4500

25

0.047-0.4

20

24

155

4-19

32000

1830*7000

25

0.047-0.4

31.5

24

210

6-22

37500

2100*3000

25

0.047-0.4

18

22

210

6.4-28

40790

2100*4000

25

0.047-0.4

21.5

22

210

7.6-28

43454

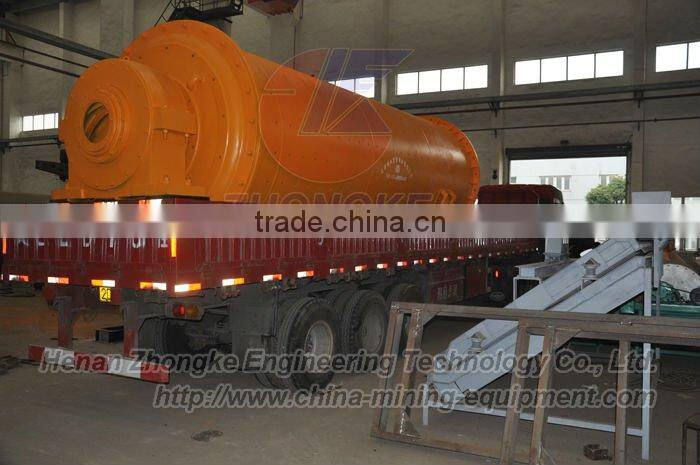

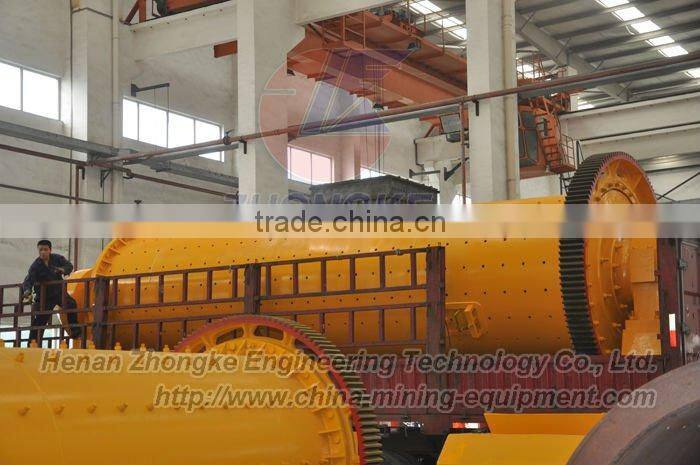

Ball Mill for coal gold ore iron ore cement clinker



Ball Mill for coal gold ore iron ore cement clinker



Ball Mill for coal gold ore iron ore cement clinker



Ball Mill for coal gold ore iron ore cement clinker
