Specifications
Wind generator 400W1. Start in breeze 2.5m/s
2. Spinning then charging
3. High efficient output.
4. MPPT inner controller
Wind turbine generator motor with MPPT build in controller.
Sample Purchase online: Click here
Please leave a message about whether you need
12V or 24V.
Technical Data
Model |
SFMP-600-5 |
Rated Power |
400W |
Max Power |
600 W |
Turbine Controller |
MPPT(Maximum Power Point Tracking) controller) |
Rated Voltage |
12V/24V |
Rated Wind Speed |
12m/s |
Number of blade |
5 PCS |
Start-up wind speed |
3.5m/s |
Vane Diameter |
1230mm |
Rated speed |
900r/min |
Blade material |
Carbon fiber with nylon |
Tower diameter |
50mm |
Life span |
20years |
Battery PCS |
1-2PCS |
Battery capacity |
12V 200AH |
Weight |
8.5kg |
Package dimension |
672mm*350mm*210mm |
Product Certification |
CE,ISO9001:2000, RoHS |

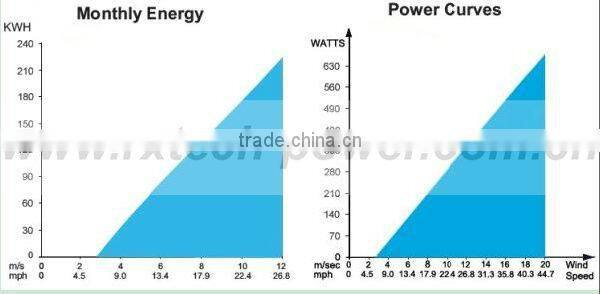

Curves |
|
Drawing |
|
MPPT charge controller
The MPPT charge controller is a sophisticated multi-stage battery charger that uses several regulation stages to allow fast recharging of the battery
system while ensuring a long battery life.
When the turbine produces only 3V, it can rise to more than 12V, to charge your 12V battery.
When turbine produce 6V, it can charge a 24V battery. But on a normal controller, only when
turbine produce more than 12or 24V, It will start to charge the battery. In short much wind is
required.
Features
1.Enables the 600 watt max land turbine to achieve its highest possible performance by periodically tracking the maximum power point of the turbines output
2. Can be used with battery systems of either 12v or 24v DC
3. Includes 12 /24 volt automatic detection system, temperature-compensated and three-stage charge regulation, fully waterproof design, inline 40 amp fuse, and a manual/automatic braking system
Description
1. Charges both 12 Volt and 24 Volt battery banks
2. Low noise aerodynamic fiberglass blades
3. Safe and efficient charging with Maximum Power Point Tracking Charge Controller
4. Weatherproof industrial strength design
5. Designed to perform in low wind speeds
6. Do it Yourself' Maintenance free Installation
Packing list
1. Wind turbine
2. 5 PCS of blades
3. Wind turbine hub
4. Screw bolts and nose cone
5. MMPT build in controller
Application
