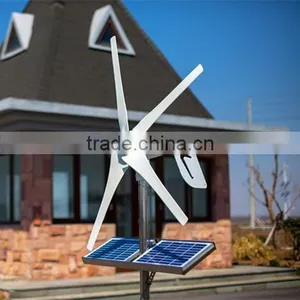

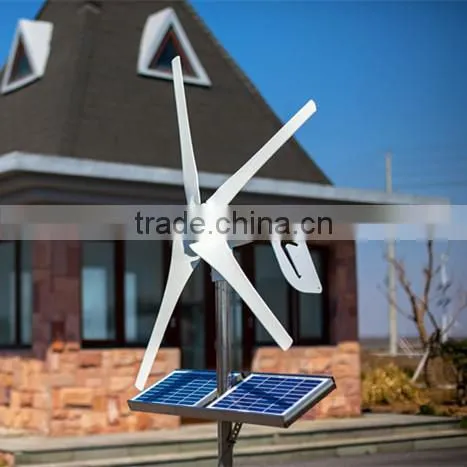

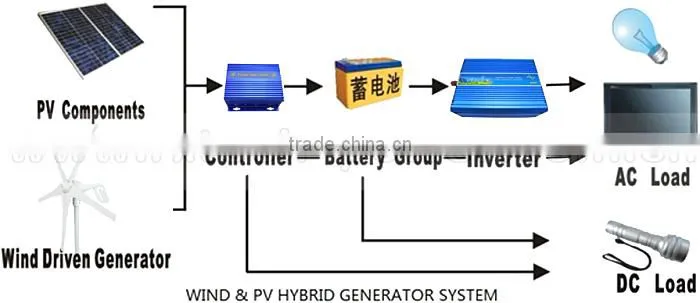

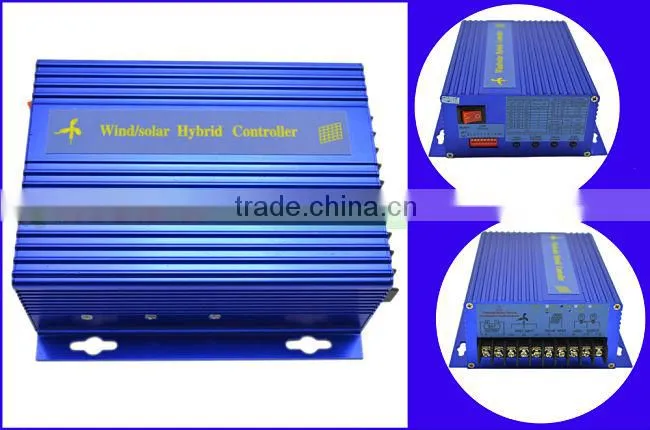

Wind Turbine Generator , Combine With Wind/Solar Hybrid Controller,CE RoHS Approval

US$ 200 - 350 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

R&X

Model Number:

SF-600-5

Nantong R&X Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name R&X

Model Number SF-600-5

Type Wind Power Generator

Specifications

Wind Turbine Generator
1, Low Price

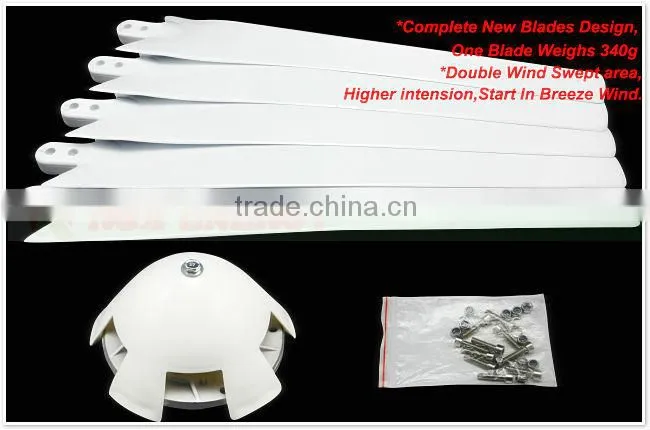

2,Carbon fibre blades
3,Small in size,Big power
d/solar hybrid street lighting pow

Sample Purchase online: Click here

UPDATED Wind Turbine Generator Kit 600W Max 12/24V Option NEW

Brand New in box

Introduction	Wind is in nature inexhaustible energy, but also not pollute the environment is one of the energy. Changeing the wind energy to power energy is used in industy production and normal life,which is human ideal energy acquisition modes. This Wind Turbine Generator includes a high efficiency motor to get the most from the turbine.This turbine comes with one of the best warranties in the industry. This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max. It features a special coating that protects the generator, making it suitable for locations. The turbine begins to supply power in wind speeds as low as 15m/s
Introduction
Technical Data	Model	SF-600-5
	Name	White Pigeon (II)
	Rated Power	400W
	Rated DC Voltage	DC12V/24V
	Rated Current	33A/25A
	Rated Speedy	640r/m
	Max Power	600W
	Start-up wind speed	2.5m/s
	Cut-in wind speed	3.5m/s
	Cut-out wind speed	15m/s
	Rated wind speed	12m/s

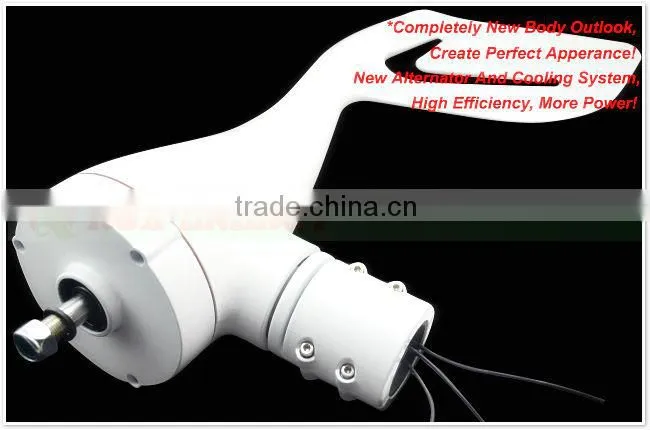

	Engine	Three-phase permanent magnet generator
	Rotor diameter	1185 mm
	Output line anti-winding device	Overall three-phase commutator
	Wind protection	Tip stall protection+turned protection+electromagnetic brake
	Life span	15 years
	Equipment surface protection	Aluminum oxide+plastic coating
	working temperature	-40°c to 70°c
	Weight	8.5kg
Power Curve
Monthly Power Generation Cure
