2x6mm2 Solar Cable 100meters/roll Double Core 6mm2 PV Cable

US$ 1.13 - 1.45 MOQ: 100 Meters

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

R&X

Model Number:

2x6mm sq

Nantong R&X Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name R&X

Model Number 2x6mm sq

Insulation Material XLPE

Type High Voltage

Application Other, Solar power system

Conductor Material Copper

Jacket Other, XLPE

2x6mm2 solar cable 100meters/roll double core 6mm2 PV cable

Description

Name : solar cable

Model: PV1-F

Type: 2x6mm2

Rated date: 600/1000V 1800V DC, -40°C~120°C

Standard: 2PfG1169/08.07

Techincal Data

Cross Section (mm²)	Conductor Construction (n/mm)	Conductor Stranded OD.(mm)	Insulation Min.Wall Thickness (mm)	Core colors	Cable OD. Round (mm)	Cable OD. Flat (mm)	Single Core Conductor Max.Resistance AT 20°C (Ω/km)	Single Core Current Araaing Capacity AT 60 °C(A)
2x2.5mm²	TXR 50/0.25*2	2.02*2	0.67	Black Red	9.2	5.45	7.98	41
2x4mm²	TXR 56/0.30*2	2.60*2	0.67	Black Red	12	6.10	4.95	55
2x6mm²	TXR 84/0.30*2	3.42*2	0.8	Black Red	13.5	7.20	3.30	70
2x10mm²	TXR 228/0.30*2	4.56*2	0.9	Black Red	16	9.0	1.91	98

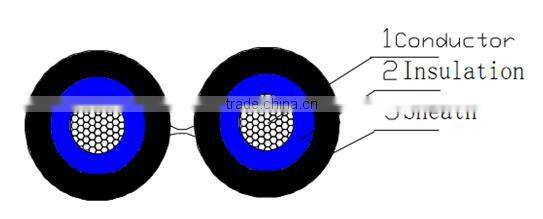

Drawing

Mainly structure and dimensions

conductor	material	tinned copper tape
	structure	56/0.30
	Maximum overall diameter of the conductor	2.7mm
insulation	material	Photovoltaic with irradiation cross linking polyolefin insulating materials
insulation	Overall diameter	4.2±0.1mm
jacket	material	Photovoltaic with irradiation cross linking polyolefin insulating materials
	Overall diameter	6.1±0.1mm
	color	black
Mark	The content and color of print	Printed with ink
Mark	The content and color of print	white

Mainly performance index

conductor	The maximum resistance of conductor at 20°C	DC resistance≤5.09Ω/kg
conductor	appearance	bright and clean
insulation	elongation at break	≥160%
insulation	volume resistivity at 20°C	≥1.01012Ωm
jacket	elongation at break	≥160%
jacket	volume resistivity at 21°C	≥1.01012Ωm
