Specifications
solar pv connector cable1.TUV&UL approval
2.1*4mm2,25 years use life

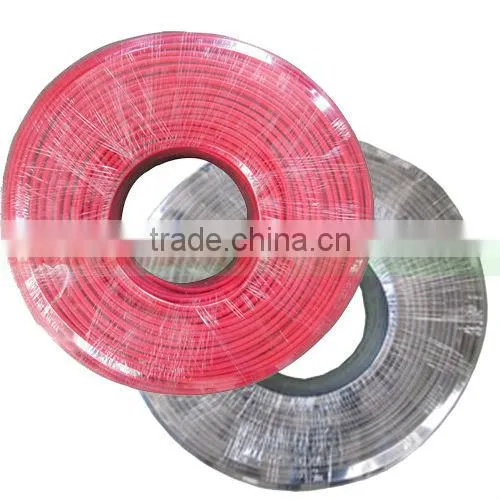

3.UV resistance,250meters/roll
4.Factory Price

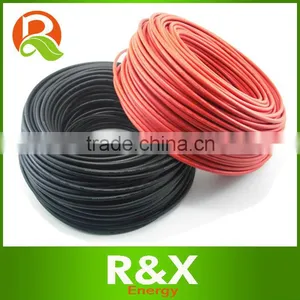

Solar pv connector cable 4mm sq
Sample Purchase online: Click here
Techincal Data
|
Cross Section (mm²) |
Conductor Construction (n/mm) |
Conductor Stranded OD.(mm) |
Insulation Min.Wall Thickness(mm) |
Sheath Min.Wall Thickness(mm) |
Cable OD.(mm) |
Conductor Max.Resistance AT20°C (Ω/km) |
Current Araaing Capacity AT 60°C(A) |
1.5mm² |
TXR30/0.25 |
1.58 |
0.67 |
0.73 |
4.90 |
13.3 |
30 |
2.5mm² |
TXR50/0.25 |
2.02 |
0.67 |
0.73 |
5.45 |
7.98 |
41 |
4mm² |
TXR56/0.30 |
2.60 |
0.67 |
0.73 |
6.10 |
4.95 |
55 |
6mm² |
TXR84/0.30 |
3.42 |
0.8 |
0.80 |
7.20 |
3.30 |
70 |
10mm² |
TXR142/0.30 |
4.56 |
0.9 |
0.90 |
9.00 |
1.91 |
98 |
16mm² |
TXR228/0.30 |
5.60 |
1.00 |
0.90 |
10.20 |
1.21 |
132 |
25mm² |
TXR361/0.30 |
6.95 |
1.19 |
0.92 |
12.00 |
0.780 |
176 |
35mm² |
TXR276/0.40 |
8.74 |
1.20 |
1.00 |
13.80 |
0.554 |
218 |
Drawing |
|
||||||
Description
1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C

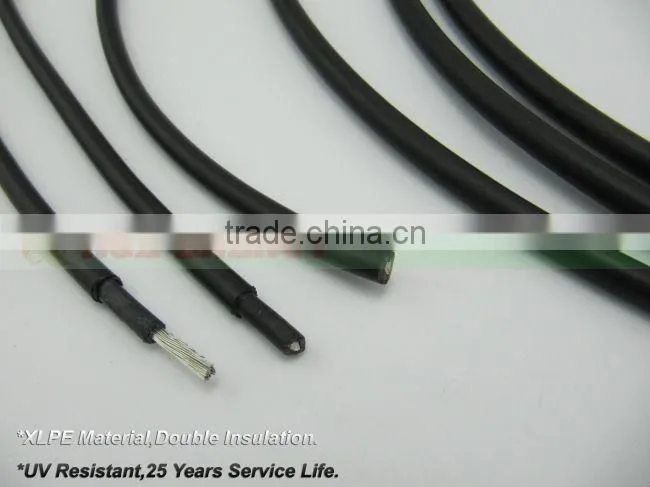

2. Description: (1)Conductor: Tinned annealed copper
(2)Insulation:120°C XLPE , black

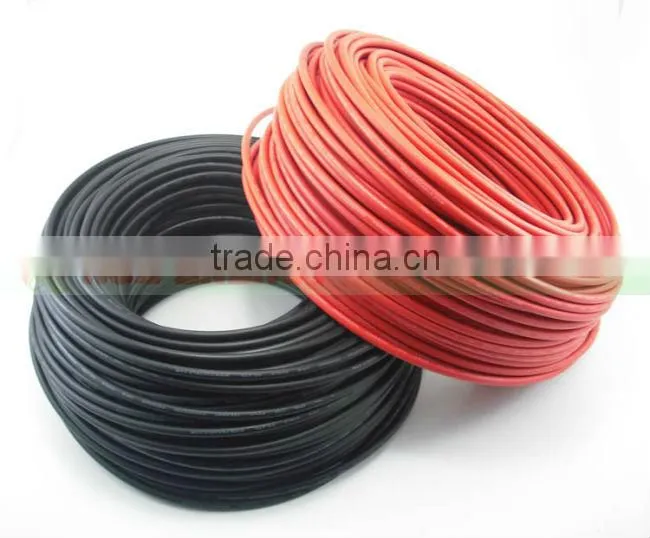

(3)Jacket:120°C XLPE , black or red

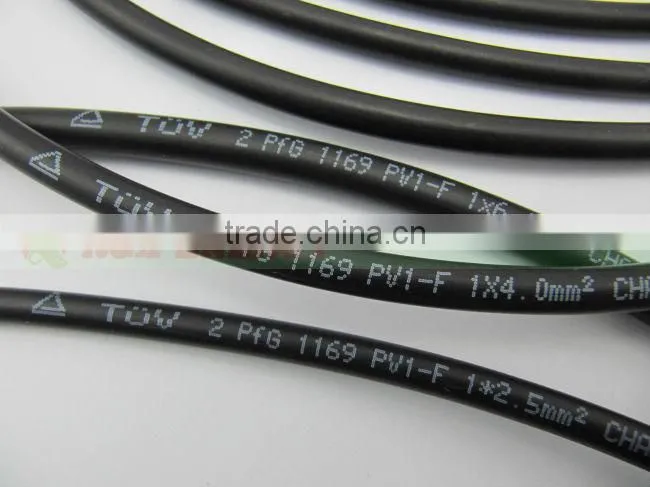

3.Marking:TÜV 2 PfG 1169 PV1-F 1×**mm2
4.Application: Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
5.General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,
UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.
