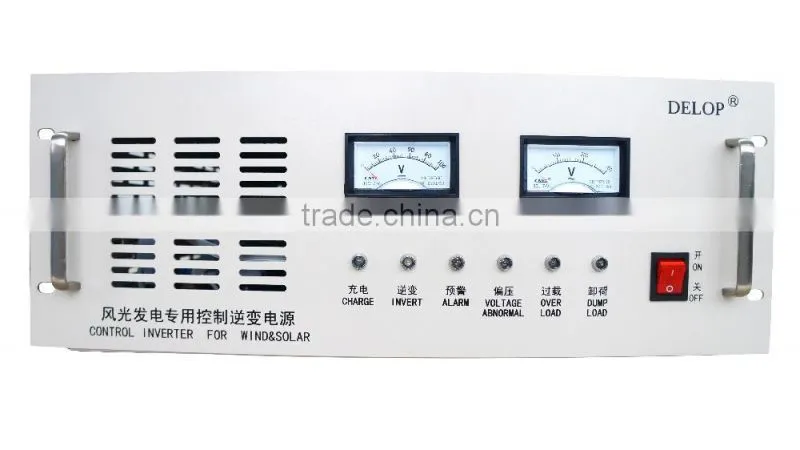

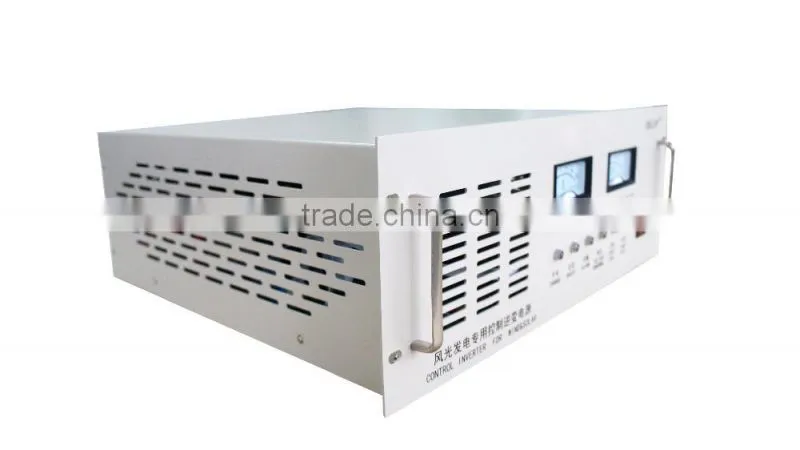

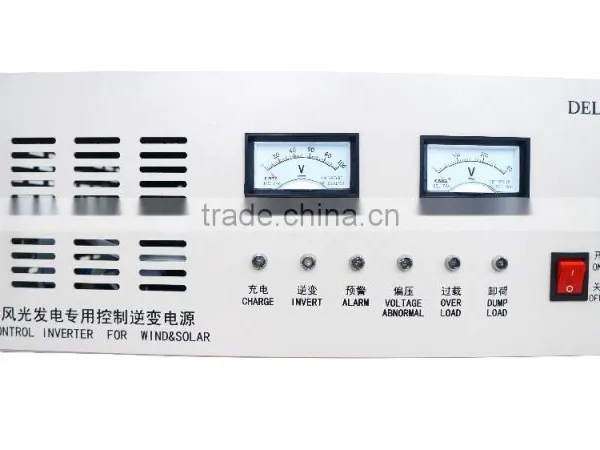

600W Wind/solar Hybrid off Grid Pure Sine Wave Inverter With PWM Controller 600w

600W Wind/solar Hybrid off Grid Pure Sine Wave Inverter With PWM Controller 600w thumbnail-1
600W Wind/solar Hybrid off Grid Pure Sine Wave Inverter With PWM Controller 600w thumbnail-2
600W Wind/solar Hybrid off Grid Pure Sine Wave Inverter With PWM Controller 600w photo-1
600W Wind/solar Hybrid off Grid Pure Sine Wave Inverter With PWM Controller 600w photo-2
US$ 220 - 270 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
R&X
Model Number:
RX-600-CI
Contact Supplier Request Quote Chat Now
Nantong R&X Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENHEN/SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name R&X
Model Number RX-600-CI
Output Power 500 - 1000W
Output Type Single
Size 485*485*180mm
Weight 15kg
Input Voltage 12V/24V
Output Voltage 110/120/220/230/240 VAC
Type Other, Controller&Inverter
Output Frequency 50/60 Hz±0.05Hz

600W wind/solar hybrid off grid pure sine wave inverter with PWM controller 600w













Technical Data



Product model

 12V 24V

Wind power generator rated power input

600W

Rated input power solar

200W

Battery rated voltage

12V

24V

Fan maximum input current

100A

50A

Fan maximum input power

1200W

Discharge start voltage

15.5V

31V

Over charge recovery charging voltage

12.6V

25.2

The inverter output rated capacity

600VA

Rated output voltage

110/120/220/230/240 VAC

Rated output frequency

50/60 Hz±0.05Hz

Dynamic response

5%

Inverter efficiency

≤90

No load loss

0.1A±0.05A

The inverter input over voltage protection

16V

32V

Overload, short circuit protection

>660VA

Battery discharge protection voltage

10V

20V

Insulation class

A

Display mode

Voltmeter, ammeter + LED status indicator

Display content

The battery voltage, the charging current, AC output

voltage and various state LED instructions

The use of the environment

Dry, clean, ventilated, free of flammable, explosive,

corrosive gas

Ambient temperature

 -10°~+40°C

Relative humidity

≤90

The use of time

Long term continuous (as the battery capacity

decisions)

Weight ( Kg )

About12Kg

Machine size

Net size:485*485*180mm

In order to better serve customers, our company can be adjusted according to customer

requirements and configuration parameters.











Description



This machine adopts the world's newest PWM technology,in the process of battery DC voltage

into 220V voltage , using pulse width ways to keep the output voltage and frequency stability,

this machine is completely different from the traditional transformer &three transistor and the

two generation product ring ox & module type. This machine has many advantages.

1 .Advanced technology guarantee of environmental protection and energy saving.

Many currently on the market of the inverter power supply basically adopts high power

transistor or module, no-load loss current is generally a few amperes, and the machine no-load

loss current only0.1 amperes, this one index to rely on battery power supply area users

importance and economy it is self-evident.

2  This machine uses the PWM technology of NC function, set up a battery voltage too high

shutdown, automatic shutdown, charging full inverter discharge low voltage protection,

overload and short circuit protection, battery reverse protection function.

3   This machine is arranged inside the phase-shift drive circuit, output waveform to a

simulated sine wave.

4  Circuit having automatic frequency stabilization, automatic voltage stabilizing

function, a battery voltage drop, AC output voltage automatically adjust upward, maintained

in the 220V, this feature allows the output voltage in the battery voltage and load changes can

remain stable.

5   Machine provided with a dual socket, a socket three for the use of different appliances,

panel set charge, inverter, under voltage, overload protection indicator stick out a mile,

working condition.
















600W wind/solar hybrid off grid pure sine wave inverter with PWM controller 600w600W wind/solar hybrid off grid pure sine wave inverter with PWM controller 600w
