Solar inverter Inverter 600W ;Apply to Solar/Wind System,Home
- 500 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | R&X | Model Number: | RX-600-S |
Output Power: | 500 - 1000W | Output Type: | Single | Size: | 210mm*150mm*70mm |
Weight: | 1.8±0.2Kg | Input Voltage: | DC12V/24V | Output Voltage: | AC100-120V AC220-240V |
Type: | DC/AC Inverters | Output Frequency: | 50HZ/60HZ | Output Current: | Pure Sine Wave |
Product Description
Specifications
600W Solar Inverter1. 100% PURE SINE WAVE OUTPUT
2. CE APPROVED
3. HIGH EFFICIENCY
4. AUTO FULLY PROTECTION
Sample Purchase online: Click here
600W Pure Sine Wave Inverter
Feature: ·Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology. ·Pure sine wave output. ·Small, light and artistic, benefited from adopting the SMD pastern technology. ·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.
Application: ·Solar electric energy generation. ·Wind power generation. ·Communication equipment. ·Industrial intellectual control system. ·Small sized emergency power supply system.
Functions: ·BUzzer alarm . ·Convenient and high efficiency power converter that gives solution for AC power supply. ·Supplies pure sine wave while normal types mostly supply square or corrected sine wave. ·CE approved.
Technical Data:
MODEL | RX-600-S | |||
AC output voltage | 100/110/120/V or 200/220/230/240V | |||
Output power | 600W | |||
Instant peak power | 1200W | |||
output wave form | pure sine wave | |||
output frequency | 50HZ or 60HZ(±2%) | |||
Output | THD | <4% | ||
Input | DC input voltage | 12V or 24V or 36V or 48V | ||
voltage range | 10.5-15V or 21-30V or 33-45V or 42--60V | |||
no-load current | <0.6A | |||
Efficiency | >88% | |||
Fuse | 12V | 40A*2 | ||
24V | 20A*2 | |||
48V | 20A*2 | |||
Protection | Low voltage alarm | 10±0.5V or 20±1V or 30±1V or 38±2V | ||
Low voltage shut down | 9.5±0.5V or 19±1V or 28±1V or 37±2V | |||
Over voltage shut down | 15.5V or 31V or 46V or 64V | |||
Over temperature shut down | Yes | |||
short-circuit protection | Yes | |||
Over load protection | 120% | |||
Inversed protection | Fuse Inversed | |||
Enviroment | Work temperature | —20°c to +50°c | ||
Humidity | 20%~90%RH non-dondensation | |||
Storage tmeperature | —30°c to+70°c | |||
Others | Size(mm) | 210*150*70 | ||
N.W.(KG) | 1.8±0.2Kg | |||
G.W.(KG) | 2.5KG |

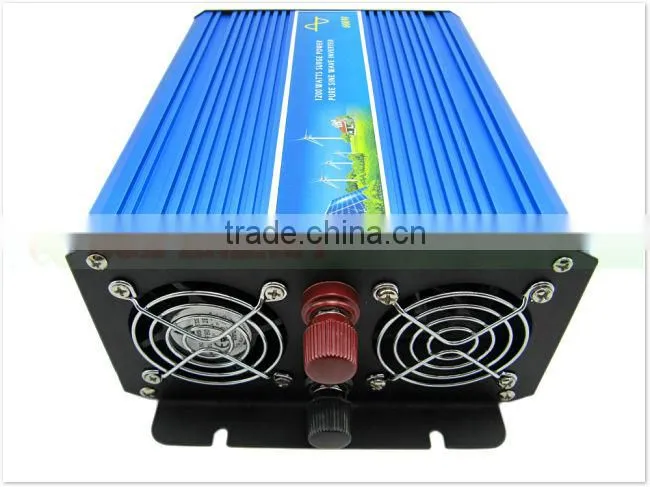

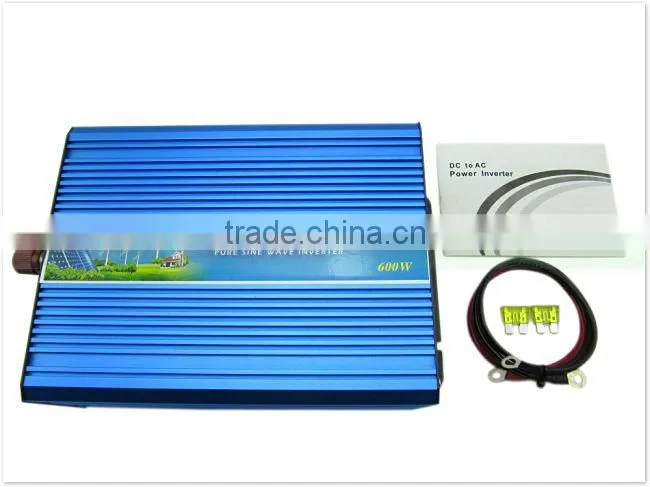

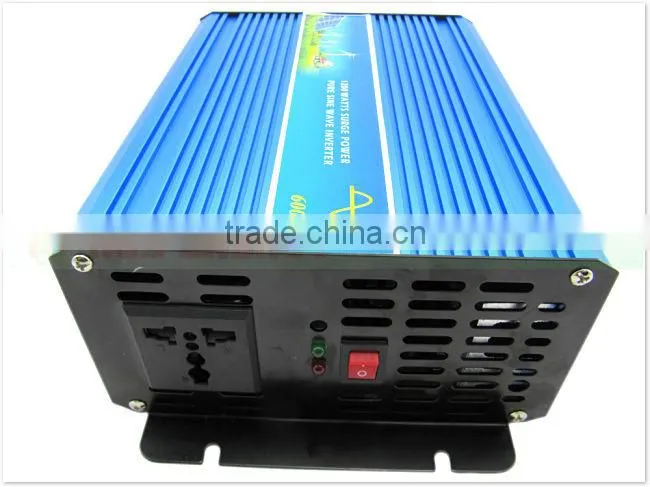

Photos of Inverter RX-600-S:

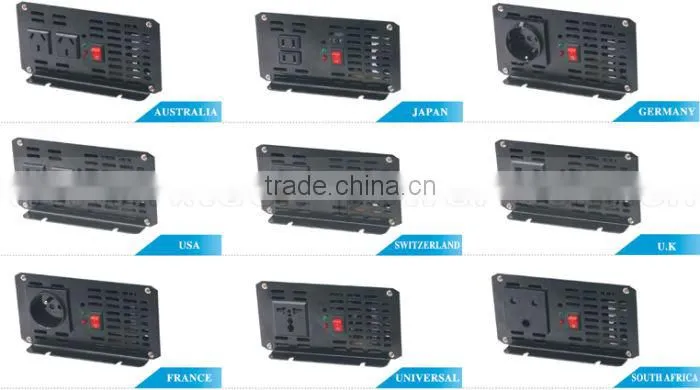

Sockets designed for various appliances of different countries
