500W Ac To Dc Inverter,CE Approval+ 2 Years Warranty!

Specifications

500W Ac To Dc Inverter
1. 100% PURE SINE WAVE OUTPUT
2. CE APPROVED
3. HIGH EFFICIENCY
4. AUTO FULLY PROTECTION

Sample Purchase online: Click here







500W Pure Sine Wave Inverter

Feature: ·Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology. ·Pure sine wave output. ·Small, light and artistic, benefited from adopting the SMD pastern technology. ·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.



Application: ·Solar electric energy generation. ·Wind power generation. ·Communication equipment. ·Industrial intellectual control system. ·Small sized emergency power supply system.



Functions: ·BUzzer alarm . ·Convenient and high efficiency power converter that gives solution for AC power supply. ·Supplies pure sine wave while normal types mostly supply square or corrected sine wave. ·CE approved.



Technical Data:

MODEL			RX-500-S
AC output voltage			100/110/120/V or 200/220/230/240V
Output power			500W
Instant peak power			1000W
output wave form			pure sine wave
output frequency			50HZ or 60HZ(±2%)
Output	THD		<4%
Input	DC input voltage		12V or 24V or 36V or 48V
	voltage range		10.5-15V or 21-30V or 33-45V or 42--60V
	no-load current		<0.6A
	Efficiency		>88%
	Fuse	12V	35A*2
		24V	20A*2
		48V	20A*2
Protection	Low voltage alarm		10±0.5V or 20±1V or 30±1V or 38±2V
	Low voltage shut down		9.5±0.5V or 19±1V or 28±1V or 37±2V
	Over voltage shut down		15.5V or 31V or 46V or 64V
	Over temperature shut down		Yes
	short-circuit protection		Yes
	Over load protection		120%
	Inversed protection		Fuse Inversed
Enviroment	Work temperature		—20°c to +50°c
	Humidity		20%~90%RH non-dondensation
	Storage tmeperature		—30°c to+70°c
Others	Size(mm)		210*150*70
	N.W.(KG)		1.4±0.2Kg
	G.W.(KG)		2.0KG

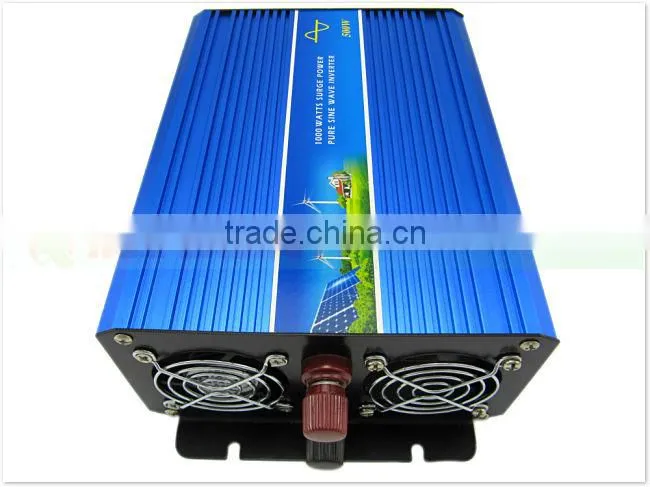

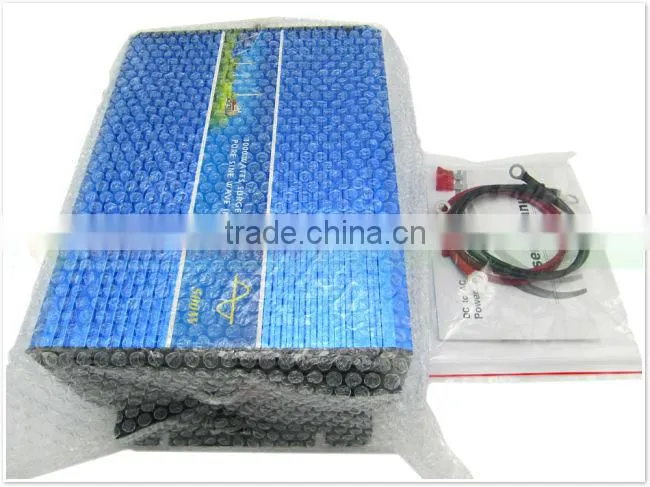

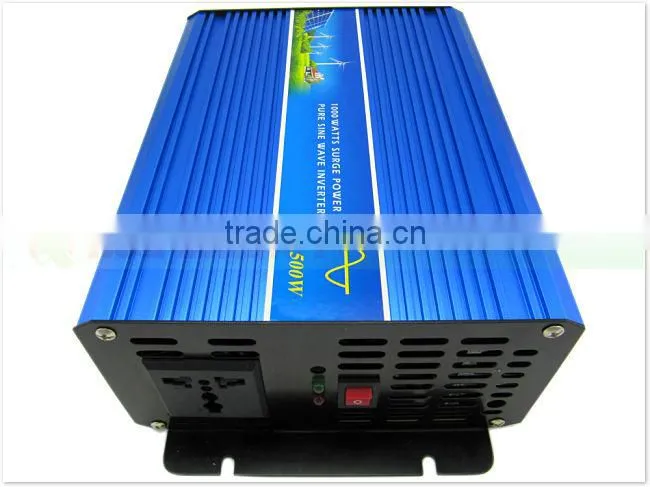

Photos of Inverter RX-500-S:

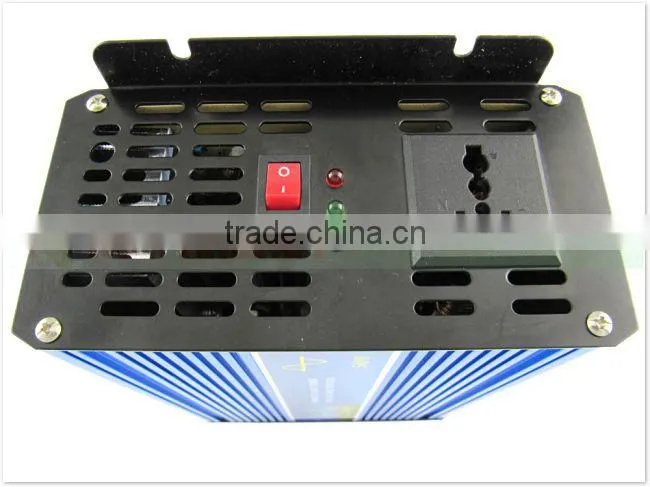

Sockets designed for various appliances of different countries
