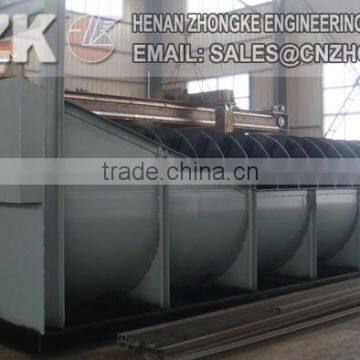

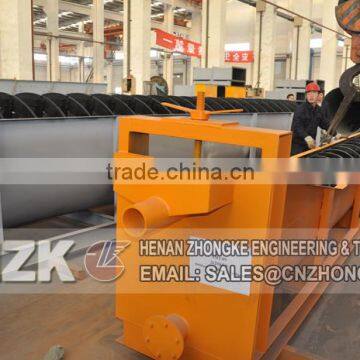

2016 selling websites China top new online product spiral classifier for sale

1.Introduction of classifier

The classifying ores  machine can be divided into the high weir classifier and immersed classifier according to the height of grading liquid surface. The high weir classifier is applicable for coarse-grained grading, size above 0.15mm, and the immersed classifier is applicable for fine-grained classification, size below 0.15mm. In addition, there is also a kind of low weir spiral classifier, the grading level lower than the spiral bearing on the bottom, with small liquid surface and large agitation, mainly used for the ore washing of mud-containing sand.

2.Application of classifier

The classifying ores machine is widely used with a ball mill to make a closed-circuit circulation to classify the mineral sands, or to classify ore sand and fine silt in gravity mill. It is also applied to classifying granularities in metal mineral separation, or desliming and dewatering in ore washing. The classifier features simple structure, reliable and easy operation.

The spiral classifier mainly includes the single spiral classifier and double spiral classifier. According to the different depth immersed by the spiral blade of overflow, it has the following two kinds:
     1, High weir type: the top of spiral blade upper than overflow surface and spiral center lower than overflow surface. Mainly used for the grading of minerals of overflow size 0.83-0.15mm.
     2, Immersed type: spiral blade completely immersed below overflow surface. Mainly used for the grading of minerals of overflow size 0.15-0.07mm.

3.Working pricinple of classifier

   Classifier equipment is by solid grain sizes, a proportion of different, so the fluid in settling velocity different principle, fine magnetic particles floating in the water, forming the overflow outflow, crude ores grain drowned in the bottom of the channel, the spiral into upper eduction, to conduct mechanical classification of a kind of classifying equipment, can put the mill inside machine grinded the pulp classification in filter, and then put the coarse material using spiral slice into grinding machine, the filter out the feeding port of fine material from the overflow pipe eduction.

 4.Structure of classifier

1. motor  2. reduction gears  3. gearwheel  4. wash tube pip  5. Cylindrical sieve   6. Internal helical blade 7. feeder  8. Outer spiral blade  9.axle  10. Trough  11. feeder  12. over flow trough  13. undersize pick mine shafts   14. Discharge port   15. return sand trough

5.Main technical parameter of classifier

6. Other products in our company

Packaging details:

standard export packing container,spare parts in wooden case, bulk goods packaged in plastic cloth or as required

Shipping:

Qingdao, Tianjin or depends on requirement .

Delivery details:

15-20 days after receiving the pre-payment

Pre-sales service:

to provide you the project design, process design, suitable for your machine equipment purchase plan, according to your special needs, design and manufacture of products, for your training technical personnel.

Sale of services:

to accompany you to complete the equipment acceptance, to assist in the formulation of construction scheme and detailed process.

After sale service:

the company sent technical personnel to the scene to guide the installation, debugging and training of operators.

24-hour service, including holidays service

Henan Zhongke Engineering Technology Co.,Ltd  is specialized in Machines as Shaking Table, Mixing Bucket, Tailing Recovery Machine,Vibrating Feeder,Ball Mill ,etc . Our company benefited from the geographical advantage of the Company and the professionalism of staff fighting, after years of development, the company has created a wealth of experience in sales and after-sales service team. Manufacturers and users in the formation of a very high reputation.

Welcome warmly to choose and inspect machines you need.
If you have any questions, please feel free to contact us. We will always be at your service.

Qualification & honour of Henan Zhongke:

Customer visiting:

Scenes of Henan Zhongke workshop:

For more information, please contact me!

  1.How about your products' quality?
Our products are manufactured strictly in accordance with the national and international standard, and we always test every equipment before the delivery.

2.Will you give us reliable price?
Yes, we are manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that “According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ”
