medical tube drilling machine,tube holing,punching machine
Specifications
Applicable to all kinds of medical tube punching with high efficient working
A. Main application:
Widely used for all kinds of medical tube punching such as urethral catheter, stomach tube, feeding tube,
etc.
B. Working principle:
Inserting the medical tube into the punching die, then photoelectric switch detects the tube position,
sending signal and the cylinder makes action for punching knife. There is a special drawer to collect and
clean the tube sweeps.
C. Technical data:
C1. Model: DT-12.
C2. Tube diameter: Ø2-Ø12mm.
C3. Working speed: 1,250pcs/h.

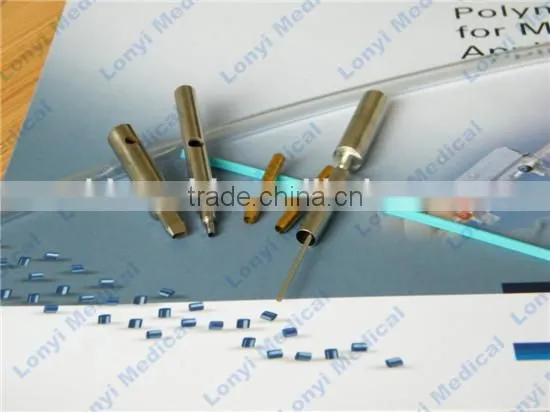

C4. Quantities of punching die: 15 sets for Ø2-Ø12mm medical tube.
C5. Weight of punching die: 1kg/set.
C6. Material of the punching die: High quality die-steel.
C7. Quantities of punching knives: 2 pcs of high precisely punching knives for each kind of Ø2-Ø12mm medical tube punching die, which means 30 pcs totally.
C8. Machine size: 400x400x600mm.
C9. Total weight for punching machine and punching dies: 45KG.
