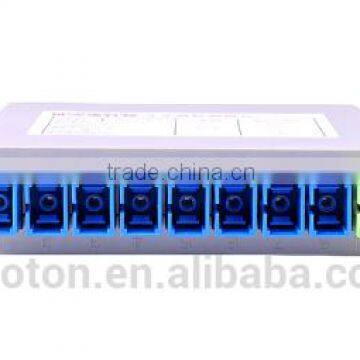

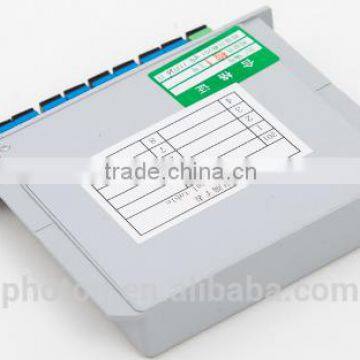

CATV FTTX LGX BOX 1*8 Fiber Optic PLC Splitter

SC adaptor

Description:

Planar Lightwave Circuit (PLC) Splitter is a passive component used for uniformly splitting or combining the optical signals inside the fiber. The PLC Splitter is built based on accurate alignment system and the mature manufacture technology.

The PLC Splitter is widely used in optical communication systems, passive optical network (PON), fiber CATV and test equipment .It is fully compliant with Telcordia GR-1209/1221 reliability qualification requirement.

Features:

* Low Insertion loss and low PDL (Polarization Dependent Loss)

* Good Uniformity

* Wide Operating wavelength range 1260nm to 1650nm

* Compact Design

* High Reliability and Stability

* Telecordia GR-1209/1221 Compliance

* ROHS Compliance

Applications:

* FTTX System

* PON Networks

* CATV Networks

* Optical Signal Distribution

Performance Parameters

1xN Series

Parameter	1×2 1X4	1×4 1X16	1×8 2X2	1×16 2X8	1×32 2X32	1×64
Operating wavelength (nm)	1260~1650
Insertion loss(at 23℃) (dB)	≤3.8 ≤7.4	≤7.1 ≤13.9	≤10.4	≤13.6	≤16.9 ≤17.4	≤21.2
Channel uniformity (dB)	≤0.8 ≤0.8	≤0.8 ≤1.0	≤1.0 ≤1.2	≤1.4	≤1.6 ≤1.5	≤2.0
PDL (dB)	≤0.3 ≤0.2	≤0.3 ≤0.3	≤0.3 ≤0.3	≤0.3	≤0.3 ≤0.3	≤0.5
Return loss (dB)	≥55 (Without Connector); ≥50 (UPC ); ≥55 (APC ).
Directivity (dB)	≥55
Operating temperature(℃)	-40~85

2xN Series

Parameter	2×2 1X4	2×4 1X16	2×8 2X2	2×16 2X8	2×32 2X32	2×64
Operating wavelength (nm)	1260~1650
Insertion loss(at 23℃) (dB)	≤4.4 ≤7.4	≤7.7 ≤13.9	≤10.8	≤14.1	≤17.4 ≤17.4	≤20.7
Channel uniformity (dB)	≤0.8 ≤0.8	≤1.0 ≤1.0	≤1.2 ≤1.2	≤1.7	≤2.0 ≤1.5	≤2.5
PDL (dB)	≤0.3 ≤0.2	≤0.3 ≤0.3	≤0.3 ≤0.3	≤0.3	≤0.3 ≤0.3	≤0.5
Return loss (dB)	≥55 (Without Connector); ≥50 (UPC ); ≥55 (APC ).
Directivity (dB)	≥55
Operating temperature(℃)	-40~85

Note: Above specifications are for device without connector. For the Insertion loss with connector, please add 0.3dB for each channel.

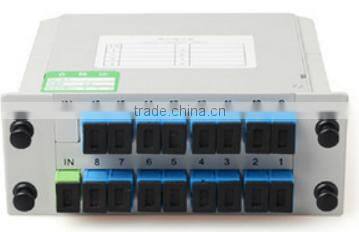

LGX Type

FC, SC etc connectors and adaptors are available

1xN Series	1×2	1×4	1×8	1×16	1×32	1×64
Module dimension (L×W×H)(mm)	130x100x25	130x100x25	130x100x25	130x100x50	130×100×102	130×100×206
2xN Series	2×2	2×4	2×8	2×16	2×32	2×64
Module dimension (L×W×H)(mm)	130x100x25	130x100x25	130x100x50	130x100x50	130×100×102	130×100×206
