Fiber Optic PLC Coupler

Name: Fiber Optic PLC Coupler
Brand: Photon
SKU: 132015953

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Photon

Model Number:

1*8 Module type

Contact Supplier Request Quote Chat Now

Shenzhen Photon Broadband Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Photon

Model Number 1*8 Module type

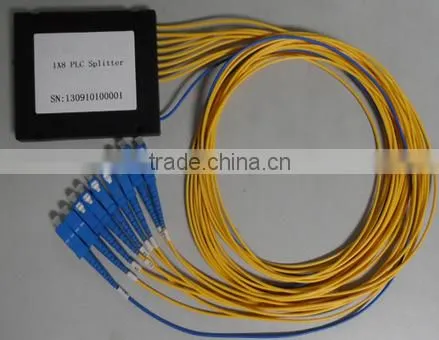

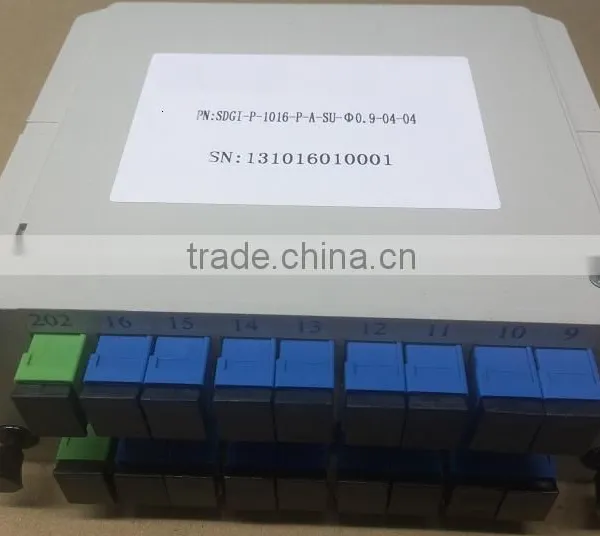

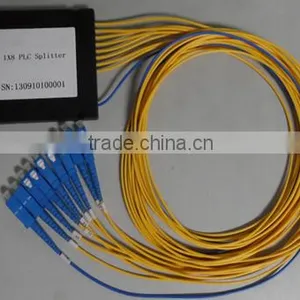

Fiber Optical PLC Splitter

Description:

Planar Lightwave Circuit (PLC) Splitter is a passive component used for uniformly splitting or combining the optical signals inside the fiber. The PLC Splitter is built based on accurate alignment system and the mature manufacture technology.

The PLC Splitter is widely used in optical communication systems, passive optical network (PON), fiber CATV and test equipment .It is fully compliant with Telcordia GR-1209/1221 reliability qualification requirement.

Features:

* Low Insertion loss and low PDL (Polarization Dependent Loss)

* Good Uniformity

* Wide Operating wavelength range 1260nm to 1650nm

* Compact Design

* High Reliability and Stability

* Telecordia GR-1209/1221 Compliance

* ROHS Compliance

Applications:

* FTTX System

* PON Networks

* CATV Networks

* Optical Signal Distribution

Performance Parameters

1xN Series

Parameter	1×2 1X4	1×4 1X16	1×8 2X2	1×16 2X8	1×32 2X32	1×64
Operating wavelength (nm)	1260~1650
Insertion loss(at 23℃) (dB)	≤3.8 ≤7.4	≤7.1 ≤13.9	≤10.4	≤13.6	≤16.9 ≤17.4	≤21.2
Channel uniformity (dB)	≤0.8 ≤0.8	≤0.8 ≤1.0	≤1.0 ≤1.2	≤1.4	≤1.6 ≤1.5	≤2.0
PDL (dB)	≤0.3 ≤0.2	≤0.3 ≤0.3	≤0.3 ≤0.3	≤0.3	≤0.3 ≤0.3	≤0.5
Return loss (dB)	≥55 (Without Connector); ≥50 (UPC ); ≥55 (APC ).
Directivity (dB)	≥55
Operating temperature(℃)	-40~85

2xN Series

Parameter	2×2 1X4	2×4 1X16	2×8 2X2	2×16 2X8	2×32 2X32	2×64
Operating wavelength (nm)	1260~1650
Insertion loss(at 23℃) (dB)	≤4.4 ≤7.4	≤7.7 ≤13.9	≤10.8	≤14.1	≤17.4 ≤17.4	≤20.7
Channel uniformity (dB)	≤0.8 ≤0.8	≤1.0 ≤1.0	≤1.2 ≤1.2	≤1.7	≤2.0 ≤1.5	≤2.5
PDL (dB)	≤0.3 ≤0.2	≤0.3 ≤0.3	≤0.3 ≤0.3	≤0.3	≤0.3 ≤0.3	≤0.5
Return loss (dB)	≥55 (Without Connector); ≥50 (UPC ); ≥55 (APC ).
Directivity (dB)	≥55
Operating temperature(℃)	-40~85

Note: Above specifications are for device without connector. For the Insertion loss with connector, please add 0.3dB for each channel.

Standard Module Type

1. ABS BOX

2. FC, SC, ST etc connectors are available

3. 900um, 2.0mm fan out cable

4. G.657A fiber or as required

5. Fan out cable color: Input-Blue; Output-Yellow; or as required

6. Fan out length: 1.5m (2.0mm) or 0.5m (0.9mm) or as required

1xN Series	1×2	1×4	1×8	1×16	1×32	1×64
Module dimension (L×W×H)(mm)	100×80×10	100×80×10	100×80×10	120×80×18	120×80×18	140×114×18
2xN Series	2×2	2×4	2×8	2×16	2×32	2×64
Module dimension (L×W×H)(mm)	100×80×10	100×80×10	100×80×10	120×80×18	120×80×18	140×114×18

Box Type

FC, SC etc connectors and adaptors are available

1xN Series	1×2	1×4	1×8	1×16	1×32	1×64
Module dimension (L×W×H)(mm)	130x100x25	130x100x25	130x100x25	130x100x50	130×100×102	130×100×206
2xN Series	2×2	2×4	2×8	2×16	2×32	2×64
Module dimension (L×W×H)(mm)	130x100x25	130x100x25	130x100x50	130x100x50	130×100×102	130×100×206

Mini Module Type

Stainless packaging
FC, SC, ST etc connectors are available
0.9mm fan out loose tube
Fan out color: White or as required
Fan out length: 0.5m or as required

1xN Series	1×2	1×4	1×8	1×16	1×32	1×64
Module dimension (L×W×H)(mm)	60x7x4	60x7x4	60x7x4	70×12×4	80×20×6	100×40×6
2xN Series	2×2	2×4	2×8	2×16	2×32	2×64
Module dimension (L×W×H)(mm)	60x7x4	60x7x4	60x7x4	70×12×4	80×20×6	100×40×6

Bare device Type

1. Stainless packaging

2. Input: 0.9mm fan out loose tube; length: 0.5m

3. Output: bare ribbon fiber; length: 0.5m

1xN Series	1×2	1×4	1×8	1×16	1×32	1×64
Module dimension (L×W×H)(mm)	50×4×4	50×4×4	50×4×4	50×7×4	50×7×4	60×12×4
2xN Series	2×2	2×4	2×8	2×16	2×32	2×64
Module dimension (L×W×H)(mm)	50×4×4	50×4×4	50×4×4	60×7×4	60×7×4	60x12x4

Tray Module Type

1. Mainly apply to ODC (Optical Distribution Cabinet)

2. Compact design

3. FC, SC, ST etc connectors and adaptors are available

1xN Series	1×2	1×4	1×8	1×16	1×32	1×64
Module dimension (L×W×H)(mm)	302x180x25	302x180x25	302x180x25	302x180x25	302x180x50	302x180x100
2xN Series	2×2	2×4	2×8	2×16	2×32	2×64
Module dimension (L×W×H)(mm)	302x180x25	302x180x25	302x180x25	302x180x25	302x180x50	302x180x100
