1 GHz FTTP/FTTH Fiber Optical Node
Description
PTR3232D optical node is a compact, cost-effective optical node specially designed for volume utilization of FTTP/FTTH application. It can configure IP transponder for network management. High performance, low receiver optical power and lower cost provide RFTV broadcast network solution for MSO.
Features
870MHz/1 GHz bandwidth
Two passive outputs for RF signal out
Output level up to 102dBuV (98dBuV for 2 Ports)
Optical AGC function
Single power module with 60VAC or 220VAC option
HMS compliant status monitor transponder

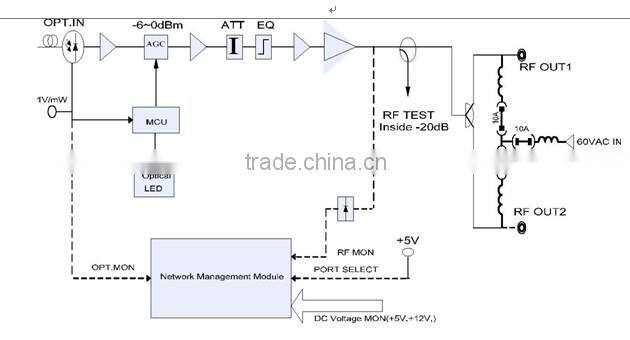

Block Diagram

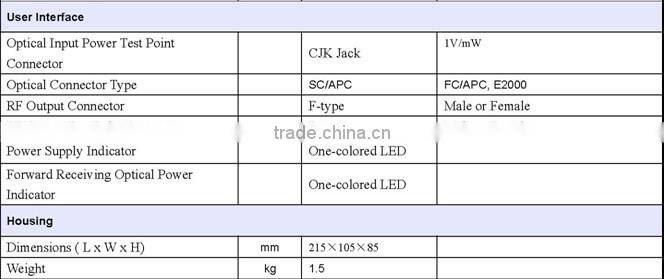

Specifications
1 Lead time,for the sample,we will ship within 3 working days after receive you payment,for the bulk order,within 7-30working days
2 Express: DHL,Fedex,UPS,TNT,EMS and so on other can be shipped by ocean or air.
1 All products have proceeded aging test before shipment and we guarantee to use our products safety.
2 Heip to design and build the network if needed,also offer technical support
3 Can support your logo on the products
4 warrange 1 year,don't pay the freight
5 Any problens happen when you use our product,our team will do the best to solve it.
