Help CenterOptic Receiver FTTB/FTTC Network 2 Output Ports Node PTR3202S Dual Active Ports for RF Signal Out
Related Products
-
Optic Node With Reverse Way PTR3502SUS$ 1 - 500MOQ: 1 Piece -
FTTB Optic Node &2 Output Ports With AGC -PTR3232US$ 1 - 100MOQ: 1 Piece
-
Passive Optical Receiver PTR3292 Without Power SupplyUS$ 1 - 10MOQ: 100 Pieces
-
Mini FTTH Optical Receiver With AGC Function 1100-1600nm WavelengthUS$ 1 - 20MOQ: 1 Piece
-
FTTH Mini Optical Receiver/ Node /With WDM PTR3282DUS$ 1 - 25MOQ: 10 Pieces
2 Output ports optical receiver

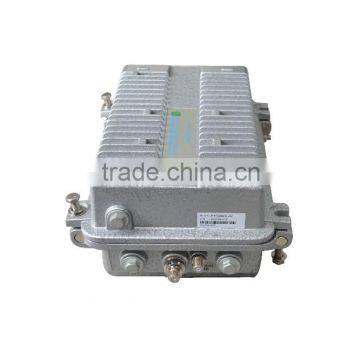

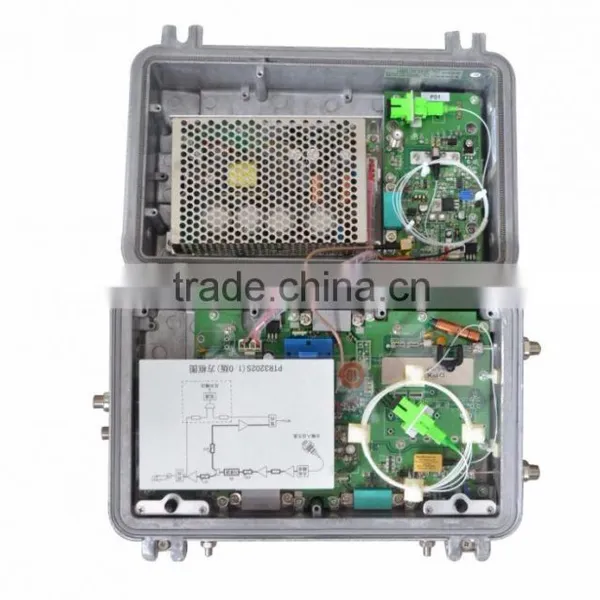

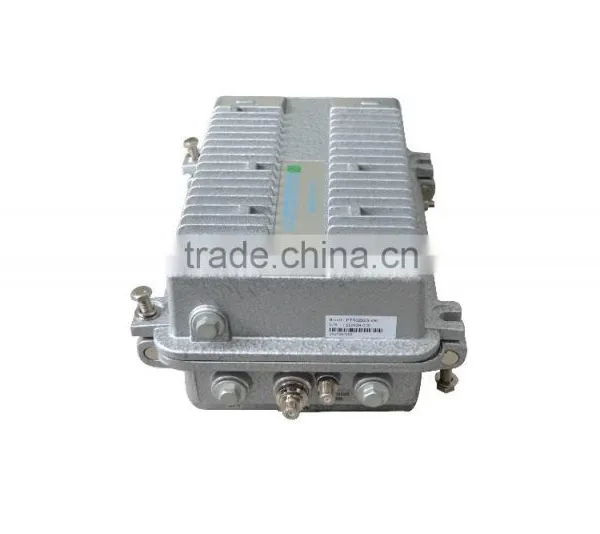

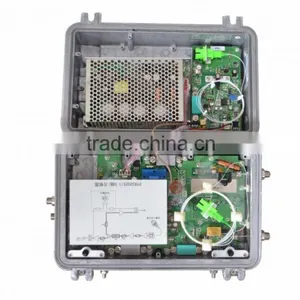

PTR3202S is a two independent output ports optical receiver, with beautiful house, excellent performance and high output level which can achieve FTTB/FTTC network. The optical node can been added the return path transmitter module (optional), which can achieve network two-way network upgradewhich is optimal product for big cities build modern HFC network. Besides, it has network management system which enables distant monitoring and managing (optional). LEDs indicate receiving optical power value for easily setup and configuration. 60VAC or 220VAC power module is optional.
Features
l 870MHz/1 GHz bandwidth
l 1310/1550nm two operation windows
l
l Output level up to 112dBuV
l Plug-in equalizer and attenuator, which can regulate output slope and level based on requirement
l One return path transmitter module
l FP, DFB or CWDM return path offerings
l Single power module with 60VAC or 220VAC option
l HMS compliant status monitor transponder
l High precision AGC function controlled by CPU
Specifications
Output Power |
dBm |
3±0.5 |
|
||||
Optical Return Loss |
dB |
≥40 |
|
||||
RF Specifications (Return Path) | |||||||
Bandwidth |
MHz |
5~200 |
|
||||
Flatness |
dB |
≤±1.0 |
|
||||
Return Loss |
dB |
≥14 |
5-200 MHz |
||||
Dynamic Range of NPR |
dB |
>12 |
@33dB |
||||
Nominal RF Input Level |
dBuV |
70 |
From RF output ports |
||||
RF Input Test Point Level |
dB |
-20±1.5 |
Relative to RF input ports |
||||
Laser Modulation Level Test Point |
dBmV |
10±1.0 |
8% OMI at room temperature |
||||
Power Supply | |||||||
Input Voltage Range |
VAC |
40~95 |
For 60VAC power supply |
||||
160~265 |
For 220VAC power supply |
||||||
Power consumption |
W |
<40 |
|
||||
Environmental Parameters |
1 Lead time,for the sample,we will ship within 3 working days after receive you payment,for the bulk order,within 7-30working days
2 Express: DHL,Fedex,UPS,TNT,EMS and so on other can be shipped by ocean or air.
1 All products have proceeded aging test before shipment and we guarantee to use our products safety.
2 Heip to design and build the network if needed,also offer technical support
3 Can support your logo on the products
4 warrange 1 year,don't pay the freight
5 Any problens happen when you use our product,our team will do the best to solve it.
