CATV Optical Receiver

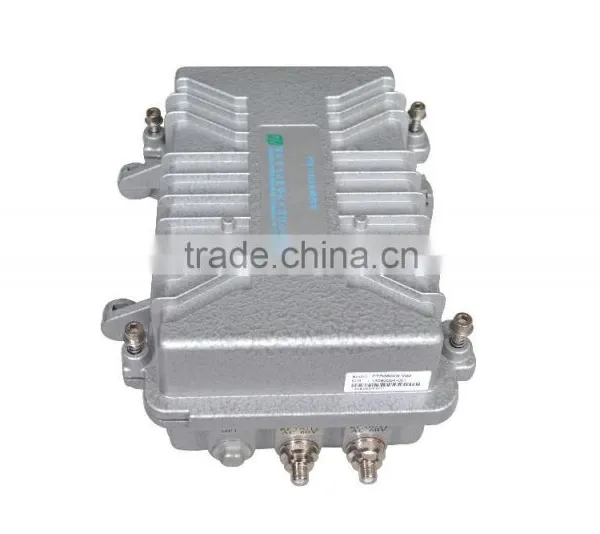

PTR3502S
PTR3502S optical node is a compact, cost-effective optical node specially designed for volume utilization of FTTB/FTTLA application. FP, DFB & CWDM return path offerings and replaceable modular power supply are available. The design supports an easy-to-use fiber-management system and easy-accessible external optical input port and RF output port for operations.
Features
l 870MHz/1 GHz bandwidth of CATV system
l Two passive outputs for RF signal out
l Output level up to 108dBuV with optical AGC for 2 RF output ports
l One optical transmitter module
l FP, DFB or CWDM return path offerings
l Single power module with 60VAC or 220VAC option
l HMS compliant status monitor transponder
l High precision AGC function controlled by CPU

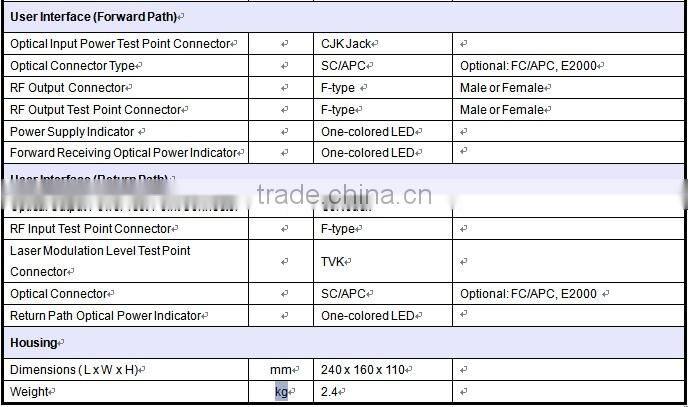

Specifications
Description |
Unit |
Value |
Conditions / Notes |
|
Optical Specifications (Forward Path) | ||||
Wavelength |
nm |
1100~1600 |
|
|
Optical Power Input Range |
dBm |
-7~+2 |
|
|
Optical AGC Range |
dBm |
-5~0 |
|
|
Optical Input Power Test Point |
V/mW |
1 |
|
|
Optical Input Return Loss |
dB |
≥45 |
|
|
RF Specifications (Forward Path) | ||||
Bandwidth |
MHz |
45~870 |
Without diplex |
|
Flatness |
dB |
≤±0.75 |
|
|
Nominal Slope |
dB |
0~1 |
|
|
Nominal RF Output Level |
dBμV |
1*108 |
@870MHz, 4% OMI, -5~0 dBm optical input with AGC |
|
2*104 | ||||
RF Output Level Test Point |
dB |
-20±1.5 |
Relate to RF output port |
|
Return Loss |
dB |
≥14 |
|
|
Impedance |
Ohm |
75 |
|
|
CNR |
dB |
≥51 |
59 PAL CW carrier, 1310nm transmitter, 4.0% OMI, 10km optical fiber plus attenuator, -1 dBm optical input power, 108 dBuV output level at 870MHz with 8 dB slope with optical AGC |
|
CSO |
dBc |
≥60 |
||
CTB |
dBc |
≥65 |
||
Surge Compliance |
V/A |
5000 |
Surge (1.2/50us), IEEE62.41 and IEC 61000-4-5 |
|
Optical Specifications (Return Path) | ||||
Laser Type |
|
FP, DFB, CWDM |
|
|
FP Laser |
Wavelength |
nm |
1310±20 |
|
Output Power |
dBm |
-3±0.5 |
|
|
0±0.5 |
|
|||
3±0.5 |
|
|||
DFB Laser |
Wavelength |
nm |
1310±20 |
|
1550±20 | ||||
Output Power |
dBm |
-3±0.5 |
|
|
0±0.5 | ||||
3±0.5 | ||||
CWDM Laser |
Wavelength |
nm |
1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 |
ITU-T G.694.2 |
Output Power |
dBm |
3±0.5 |
|
|
Optical Return Loss |
dB |
≥40 |
|
|
Optical Output Power Test Point |
V/mW |
1 |
|
|
RF Specifications (Return Path) | |||
Bandwidth |
MHz |
5~200 |
|
Flatness |
dB |
±0.75 |
|
Return Loss |
dB |
≥16 |
|
Dynamic Range of NPR |
dB |
>12 |
@33dB |
Nominal RF Input Level |
dBuV |
75 |
From RF output ports |
RF Input Test Point Level |
dB |
-20±1.5 |
Relative to RF input ports |
Power Supply | |||
Input Voltage Range |
VAC |
40~95 |
For 60VAC power supply |
90~265 |
For 220VAC power supply |
||
Power consumption |
W |
<50 |
|
Environmental Parameters | |||
Operating Temperature |
°C |
-25~60 |
|
Storage Temperature |
°C |
-40~85 |
|
Storage Humidity |
RH% |
≤95 |
No Condensation |
1 Lead time,for the sample,we will ship within 3 working days after receive you payment,for the bulk order,within 7-30working days
2 Express: DHL,Fedex,UPS,TNT,EMS and so on other can be shipped by ocean or air.
1 All products have proceeded aging test before shipment and we guarantee to use our products safety.
2 Heip to design and build the network if needed,also offer technical support
3 Can support your logo on the products
4 warrange 1 year,don't pay the freight
5 Any problens happen when you use our product,our team will do the best to solve it.
