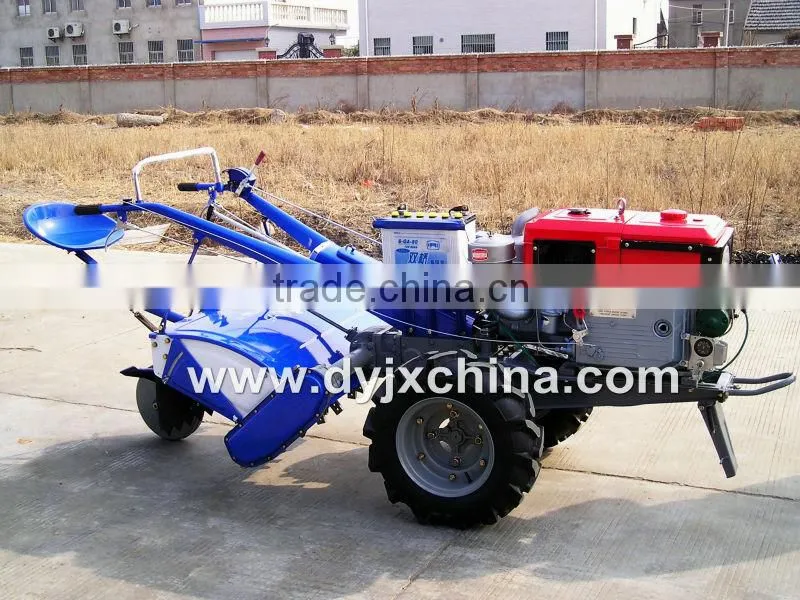

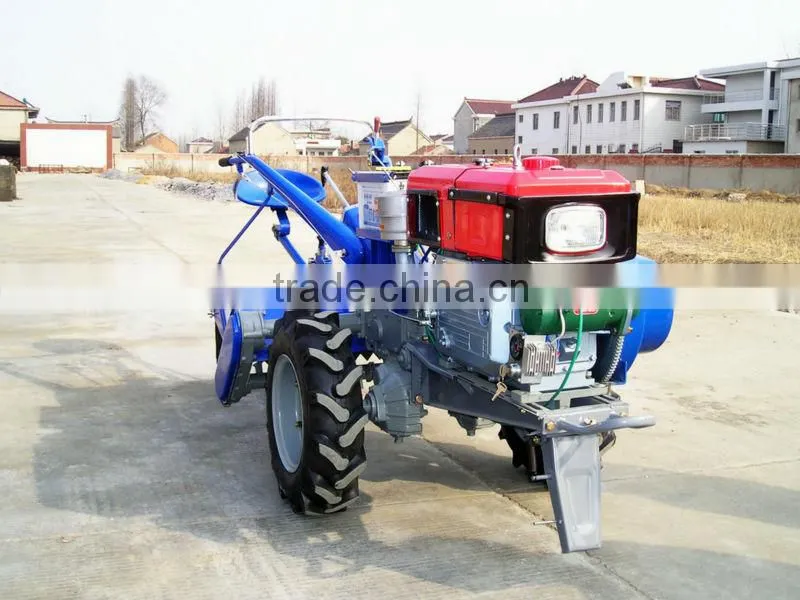

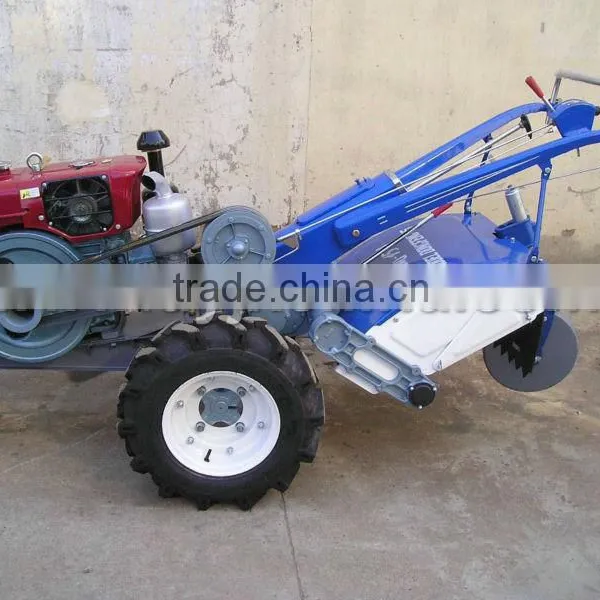

DF-15/15L 15hp Power Tiller, Walking Tractor with Cultivator

Specifications

Features:
1. Simple and compact constraction
2. High efficient output
3. Various implement
4. Good price & long-time service



1.Instruction

The tractor is featured by its simple and compact construction , reliability , long service life ,easy operation , ample output , light weight and high versatility This tractor is very suitable for use in paddy field , small dry field , orchards , vegetable gardens of hilly land with small inclination . It can be used for ploughing , rotary cultivating , harrowing in paddy field , harvesting , transportation ,etc .if suitable implements or accessories are attached . In addition , the tractor can be extensively used as a stationary power station for small scale drainage and irrigation , spraying , grain threshing , cottons ginning , flour milling , fodder cutting , etc.

2.Main specifications



Model		DF-15		DF-15L
Overall dimensions(L×W×H) (mm)		2680×960×1250
Wheel tread  (mm)		800  740   640    580
Ground clearance (mm)		182
Tyres		6.00-12
Construction weight (kg)		360
Walking Speed (km/h)	Forward	1.54  2.75  4.51  5.83  10.34  16.83
	Reverse	1.2  4.18
Rotary cultivator speed(rpm)		High 275 ; Low 219
Engine model		ZH1100	ZH1100NL
Type		Single      cylinder, horizontal,   4 stroke, hopper water  cooled diesel	Single      cylinder, horizontal,   4 stroke, hopper water by diesel condenser
Rated power[kw hp]		11.76kw 16hp
Rated speed (rpm)		2200
Net weight(kg)		170
