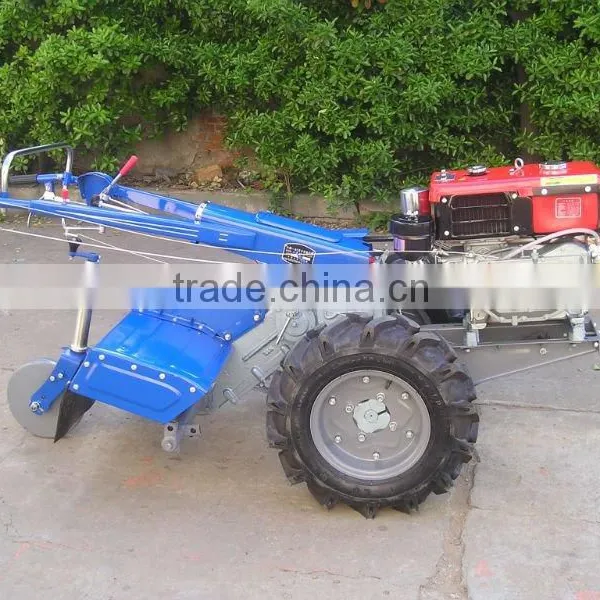

Walking Tractor(HY-61 and HY-61L)

Walking Tractor(HY-61 and HY-61L) thumbnail-1
Walking Tractor(HY-61 and HY-61L) photo-1
US$ 800 - 900 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Yancheng Dayang Farm Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, tractor
By wheel 2WD
Usage Farm Tractor
Certificate Other
Brand Name huiyou
Model Number HY-61& HY-61L
Place of Origin Jiangsu, China

Specifications

Features of power tiller:
1. simple and compact constraction
2. ample output
3. high versatility
4. long service life

1.Instruction of power tiller

The power tiller is featured by its simple and compact construction , reliability , long service life ,easy operation , ample output , light weight and high versatility This tractor is very suitable for use in paddy field , small dry field , orchards , vegetable gardens of hilly land with small inclination . It can be used for ploughing , rotary cultivating , harrowing in paddy field , harvesting , transportation ,etc .if suitable implements or accessories are attached . In addition , the tractor can be extensively used as a stationary power station for small scale drainage and irrigation , spraying , grain threshing , cottons ginning , flour milling , fodder cutting , etc.

2.Main specification



Model

 HY-61

HY-61L

Diesel engine

R175AN

R175ANL

Type

1-cylinder, 4stroke, horizontal, hopper water cooled diesel

1-cylinder, 4stroke, horizontal, hopper water by diesel condenser

Rated power (kW/hp)

4.41 / 6

Rated speed (rpm)

2600

Cooled system

Evaporative

Radiator

Overall dimension
(LXWXH)  (mm)

2180x 890x1250

Wheel tread (mm)

650, 730

Tyre

6.00 - 12

Ground clearance (mm)

234

Clutch type

Two-disc, constant-contact, friction

Construction  weight (kg)

155

Forward (km/hr)

2.31     3.82   6.11   7.77   12.83  20.51

Reverse (km/hr)

3.77     12.66

Optional implement
  1. 1LS-120 One share plough
  2. 1LGK-125 Once share plough
  3. 7C-1.0 Trailer
  4. 65BP-40 Water pump
  5. 4GL-100 Reaper
  6. PY series Sprinkler

About the detail of implement , please visit our website:



 walking tractor(HY-61 and HY-61L)walking tractor(HY-61 and HY-61L)

walking tractor(HY-61 and HY-61L)walking tractor(HY-61 and HY-61L)
