Dong Feng Walking Tractor / Power Tiller
Tractor , Mini tractor , Farm tractor , Hand Tractor, Walking tractor, Power Tiller, Two Wheel Tractor
Diesel Engine Power, Evaporative / Radiator Cooling system
HUIYOU Brand tractor
1.Instruction of tractor
tractor , mini tractor ,farm tractor
The Tractor is featured by its simple and compact construction , reliability , long service life ,easy operation , ample output , light weight and high versatility This tractor is very suitable for use in paddy field , small dry field , orchards , vegetable gardens of hilly land with small inclination . It can be used for ploughing , rotary cultivating , harrowing in paddy field , harvesting , transportation ,etc .if suitable implements or accessories are attached . In addition , the tractor can be extensively used as a stationary power station for small scale drainage and irrigation , spraying , grain threshing , cottons ginning , flour milling , fodder cutting , etc.
2.Main specifications of tractor
tractor , mini tractor ,farm tractor
Model: |
HY-121/121L |
HY-151/151L |
HY-181/181L |
HY-201/201L |
|||
Engine: |
Model |
ZS195/ZS195NL |
ZS1100/ZS1100NL |
ZS1105/ZS1105NL |
ZS1110/ZS1110NL |
||
Type |
1 - cylinder, Horizontal, 4- cycle |
||||||
Combustion System |
Direct Injection |
||||||
Bore × Stroke |
95 × 115 mm |
100 × 115 mm |
105 × 115 mm |
110 × 115 mm |
|||
Rated output/speed |
12hp / 2000 rpm |
15hp / 2200rpm |
18hp / 2200 rpm |
20hp / 2200rpm |
|||
Cooling System |
Evaporative / Radiator |
||||||
|
Overall dimension (L x W x H) |
2680 × 960 × 1250 mm |
||||||
Wheel tread |
800, 740, 640, 580 mm |
||||||
Tyre |
6.00 - 12 |
||||||
Ground clearance |
182 mm |
||||||
Clutch type |
Two-disc, constant-contact, friction |
||||||
Speed |
6 forward |
1.40 / 2.50 / 4.10 / 5.30 / 9.40 / 15.30 km/h |
1.54 / 2.75 / 4.51 / 5.83 / 10.34 / 16.83 km/h |
||||
2 reverse |
1.10 / 3.8 km/h |
1.20 / 4.18 km/h |
|||||
Rotary Cultivator |
Model |
1GS9L-60 |
|||||
Tilling width |
600 mm |
||||||
Blade Qty. |
18 pcs |
||||||
Net Weight |
500 kg |
505 kg |
515 kg |
525 kg |
|||
Packing method(Optional) |
Wooden case ;Veneer case ; Nude(Shipping by SKD) |
||||||
Packing Size |
1.16 × 1.10× 1.10 m |
||||||

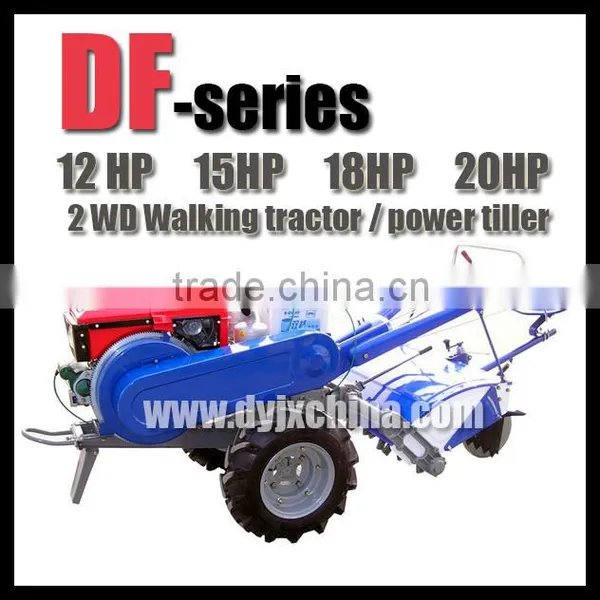

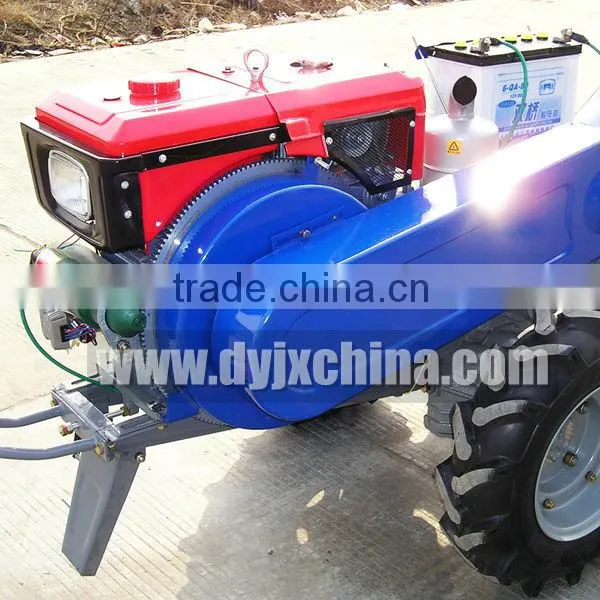

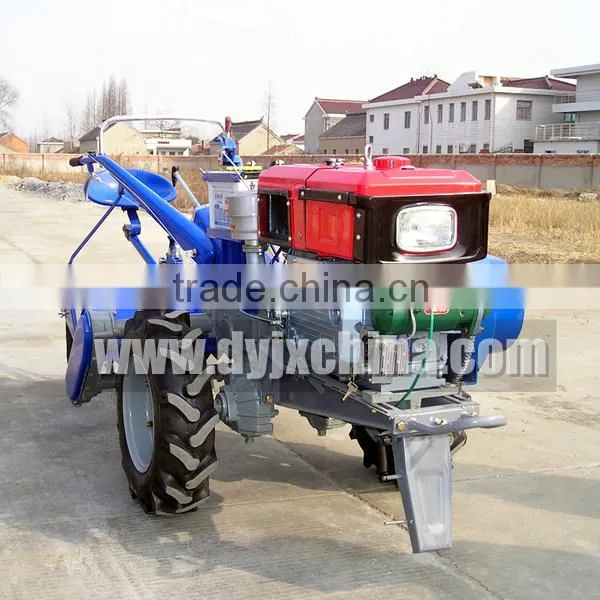

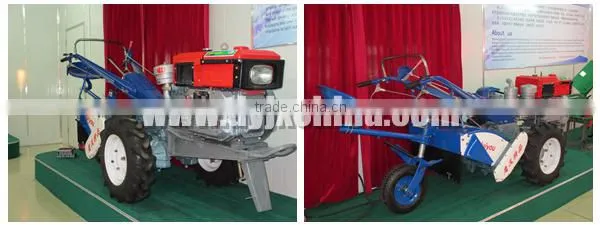

3. Product photo

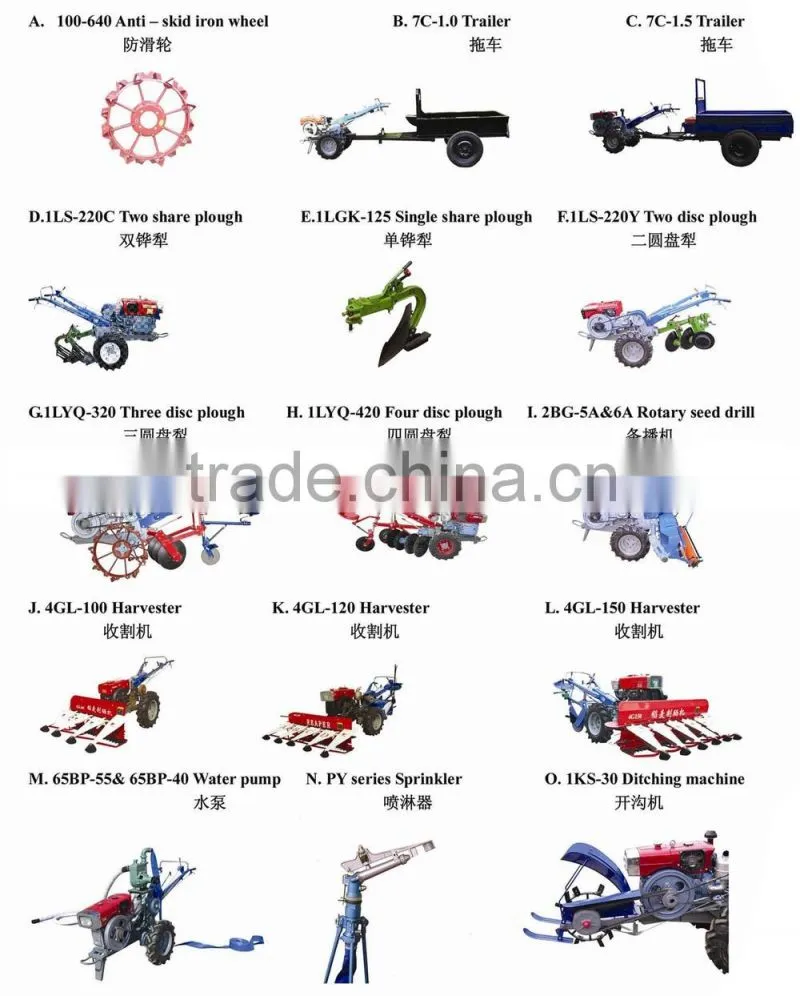

Accessories of Tractor

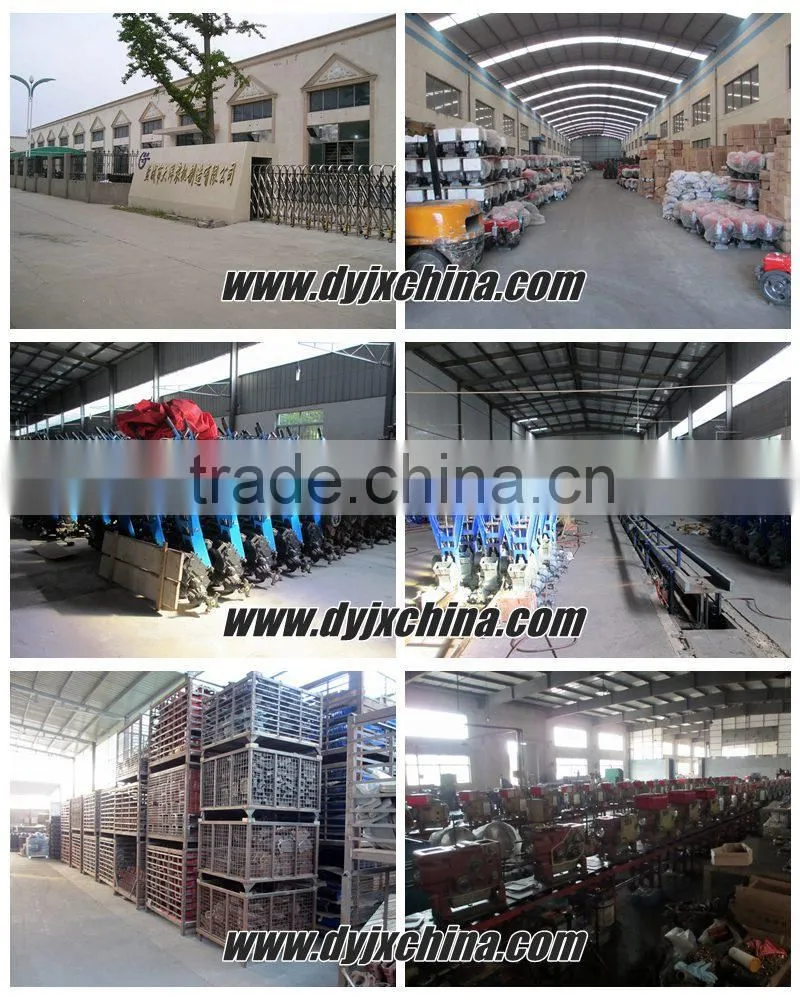

Enterprise qualification

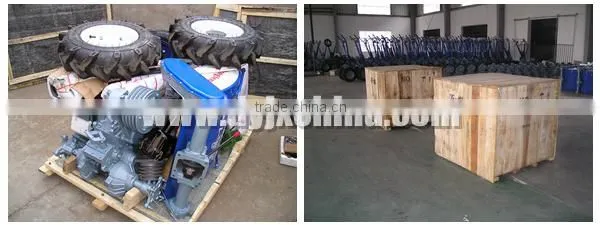

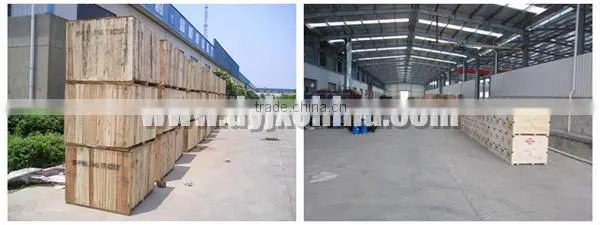

Package

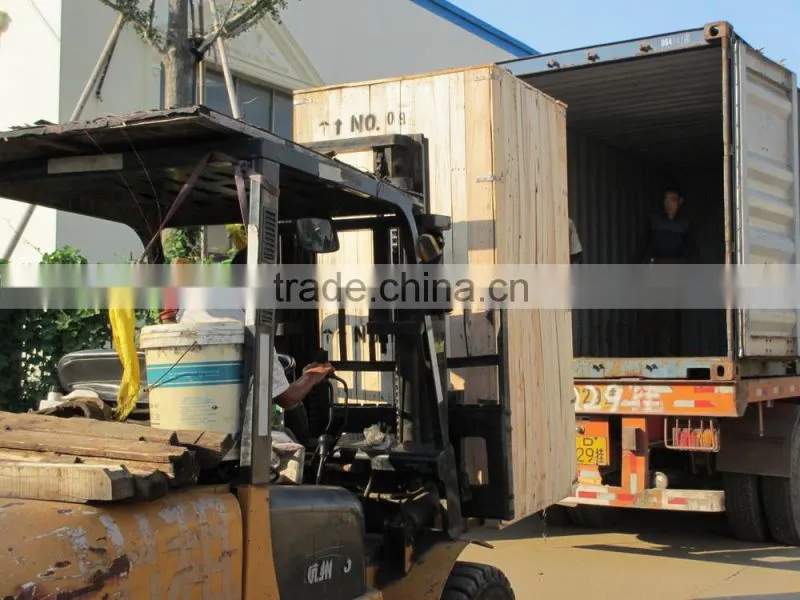

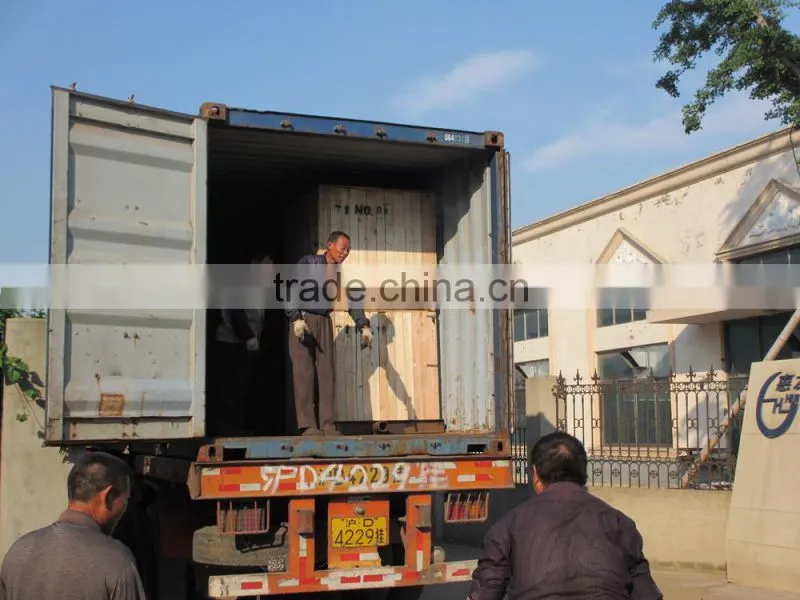

Shipping
1. We supply freely the quick-wear part which will be delivered together with our tracotor ;
2. We provide the operational manual for installing and using the tractor ;
3. According to your requirement , we will be also able to use your logo on our tractor .
1. How to get a favorable quotation?
To get a quotation list, please send inquiry on Alibaba or send email to us directly. The email address is shown in the contact detail page.
As we have different models and different implements, please indicate following details in your inquiry email:
a) Output (how many HP) or Model No.
b) Cooling system (evapoative / radiator)
c) Starting method (hand crank / motor start)
d) Order quantity!
These information are very important.
2. What is the minimum order quantity?
Our minimum order quantity is 2 sets in an order, please be sure that your order quantity is at least 2 sets.
3. About the shipment
If there is no specific requirement in your inquiry email, usually we only quote you FOB price which does't include shipping cost.
If you need delivery service, please tell us the destination sea port in your country.
Due to the heavy weight of our machines, we can only arrange sea transportation for you .
Thank you!
Best wishes.
