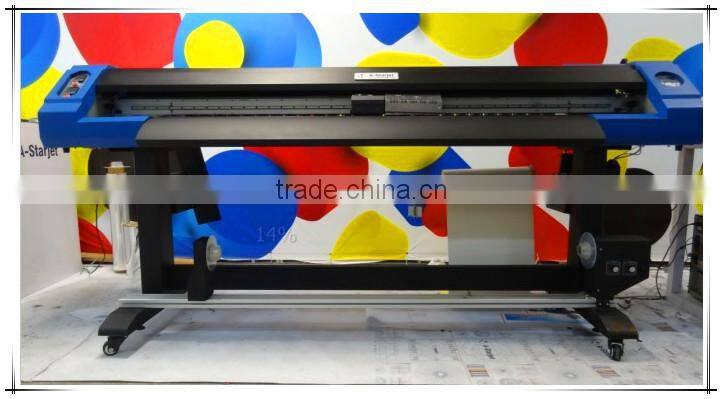

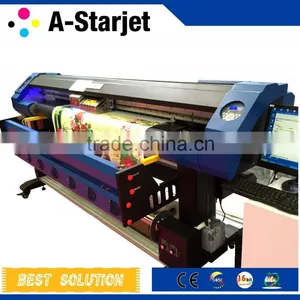

| A-Starjet Digital LED UV+White Ink Printer, Large Format Printer |
Our UV printer is Roll to Roll version which is one of our new stable printers since 2012. UV printer is dedicated in upscale market, providing the best performance in advertisement. The distinct characteristic is that UV printer use UV Curing ink which dried on the surface of the materials to instead of eroding into the materials, so it can provide more vivid and colorful pictures. By this distinct feature, UV printer is able to print on any kind of material, especial for leather, PU, curtain Fabric, wall paper, transparent materials and so on.
|
Specification of A-Starjet Digital LED UV+White Ink Printing Machine |
Briefing: 1.Print width is 1.8m. White ink is acceptable.
2.Roll to roll version.
3.There are several version UV ink, 1) For soft material
2) For leather, won’t crack when wrinkle
We also have UV ink and Coating liquid for hard material.
4.Up to 1440Dpi provides finest details.
5.Suit for most media including leather,fabric,semi-rigid substrates.
6. UV ink curing on surface instead of being absorbed by media, provide vividness.
Video Link:
/watch?v=ve5wwp7k6NY&index=4&list=PL3nfrqB1qbFEuDZjiDmhgNyPFFk8bZz4n
Three heads, CMYK+White+CMYK mode
| Item | A-starjet 7703UVW |
||||
| Print Head | Three DX7 print heads | ||||
| Number of Nozzles | 1440/Head | ||||
| Color | 4 Colors:KCMY/KCMY+White | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of Head | 2-5mm | ||||
| Size of Ink Droplet | 1.5-21pl | ||||
| Printing Width | 1600mm | ||||
| Media Width | 1900mm | ||||
| Speed | 3 pass | 30m2/hour | |||
| 4 pass | 22m2/hour | ||||
| 6 pass | 14.7m2/hour | ||||
| 8 pass | 11m2/hour | ||||
| Feeder/Take up | Yes | ||||
| Payload | 70kgs | ||||
| Heating System | Print heater and Post heater with PID temperature control | ||||
| Ink | Environmental protection type LED UV ink | ||||
| Ink Cartridge | 12× 350ml ink cartridges | ||||
| RIP Software | Iprint 3.8.2 Optional(Photoprint) | ||||
| Control Software | Print console | ||||
| PC System | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W2840× D900× H1250 | ||||
| Packing Dimension | W2940× D980× H700 | ||||
| Gross Weight | 360Kgs | ||||
| Power of IR Heater: 1200W | |||||
| Notice:A-starjet 7703 series printer all could use Color-White-Color mode for printing | |||||
|
Advantages of A-Starjet Digital LED UV+White Ink Printing Machine |
- Basically print on any media,dry instantly
- LED cold UV resource, environment-friendly
- Vivid color,3D,long last image
- Modularity, to upgrade former eco-solvent printer to get dominate
- UV ink curing on surface instead of absorb by media, provide vividness, sharpness. Suit for most media including leather, fabric, semi-rigid semi- rigid. UP to 1440Dpi provides finest details.
-

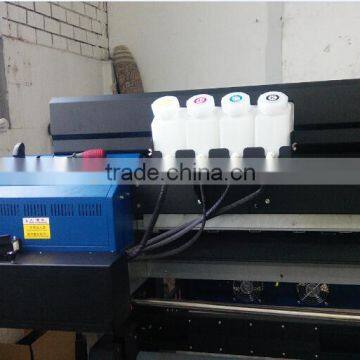

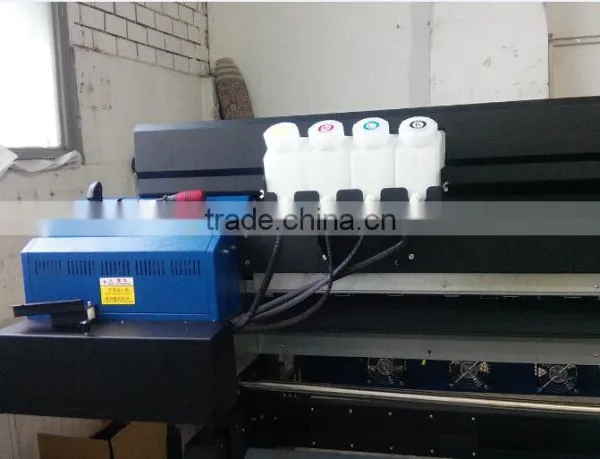

When we build A-Starjet UV LED, put the UV LED light at one side with cool fan will be
enough. We build the LED light all by ourselves because we know what we need and how we can control. Even after we made the printer for a few years. There are many copy cats need purchase two LED to put on carriage's both sides. What is the point when one is enough and why we need two of them. UV ink will curve immediately after contact UV light.
|

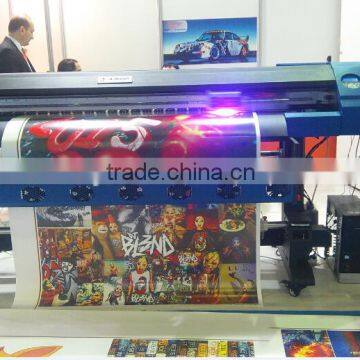

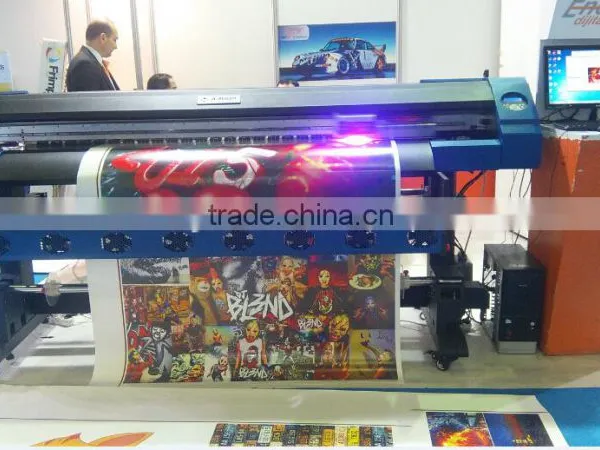

Three print heads, CMYK+White, A-Starjet UV printer |
|
Printing Samples of A-Starjet Digital LED UV+White Ink Printing Machine |
|

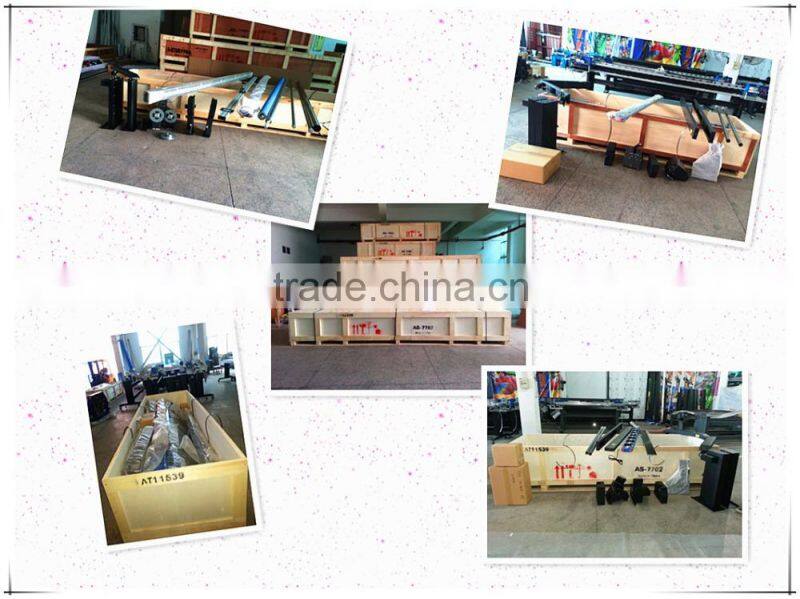

Packing of A-Starjet Digital LED UV+White Ink Printing Machine |
a. Videos, pictures are provided for examination
b. High quality Fumigation-free wooden pallet can bear 1200kgs
c. Load container service is provided
Comprehensive Guarantee Term
- Print heads are guaranteed when A-Starjet ink being used
- Motors are guaranteed for 6 months
- Printer's boards are guranteed for 15 months
- Counting from the day printer leaves factory
- Within guarantee time, send spare parts in advance and we'll cover all the freight
- After guarantee time, repair fee will be charged
Comfortable After-Sale Service
- Online support Skype, Whats app, TeamView, Youtube, etc.
- All parts directly contact with ink are not guaranteed except use A-Starjet's ink
- 5 months guaranteed for DC motor
- 15 months for all Boards
- Counting from the day that printer leaves factory
- Within Guarantee time, factory covers freight for sending parts
- Working time: Monday to Saturday--8:30 a.m. to 11:30a.m. , 12:30 p.m. to 17:30 p.m. Personally, every day's 20:00 p.m. to 22:30 p.m. is also my working time.
We are R&D background manufacturer who launched the first eco-solvent printer in China. And now comes the highest resolution of UV printer suits roll to roll usage. Creativity, high quality, comfortable after-sale service are what we have.
In May 2009, we successfully launched the A-starjet series printers, the high-precision indoor&outdoor printers, making great influence in the market. The machine is mainly used in the fields of indoor&outdoor advertising, labels and signs, textile printing, decoration, gifts, wedding photos, and so on. Based on customer particular requests, we can provide the overall resolution packages refer to machine/software design, printing technique, ink development etc.
