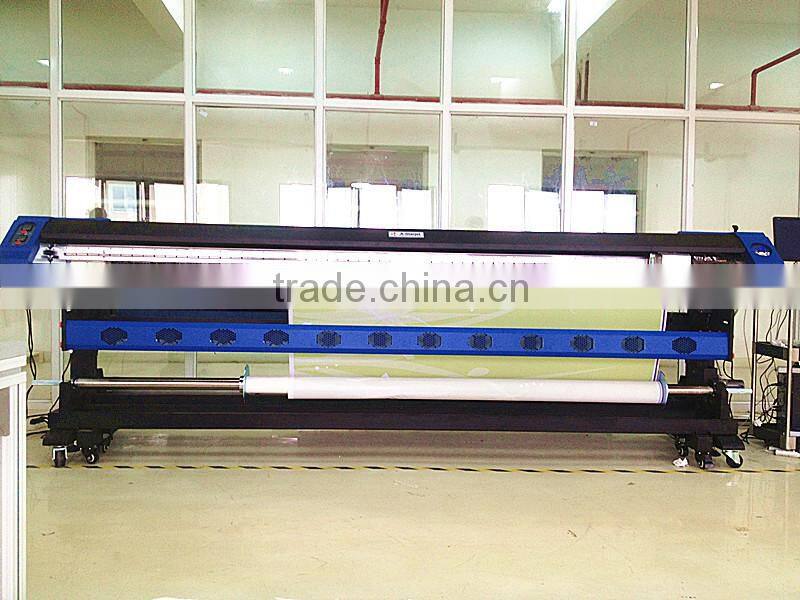

| 1. 3.2M A-Starjet LED UV Printing Machine,7702L |
Our UV printer is Roll to Roll version which is one of our new stable printers since 2012. UV printer is dedicated in upscale market, providing the best performance in advertisement. The distinct characteristic is that UV printer use UV Curing ink which dried on the surface of the materials to instead of eroding into the materials, so it can provide more vivid and colorful pictures. By this distinct feature, UV printer is able to print on any kind of material, especial for leather, PU, curtain Fabric, wall paper, transparent materials and so on.
Briefing: 1.Print width is 3.2m. White ink is acceptable.
2.Several version UV ink.
3.Special take up system.
4.Bulk ink system.
5.Up to 1440Dpi provides finest details.
6.Suit for most media including leather, fabric, semi-rigid substrates.
7.UV ink curing on surface instead of being absorbed by media, provide vividness.
Link: /watch?v=EqZji5GWJYc&list=PL3nfrqB1qbF
EuDZjiDmhgNyPFFk8bZz4n&index=5
Three heads, CMYK+White+CMYK mode
/watch?v=921G4HjyVkU&list=PL3nfrqB1qbF
EuDZjiDmhgNyPFFk8bZz4n&index=2
One head printing at two pass
| 2. Specification of A-Starjet LED UV Printing Machine |
| Item | A-starjet 7702L LED UV Printer | A-starjet 7703L LED UV Printer | |||
| Print Head | Two DX7 print heads | Three DX7 print heads | |||
| Number of Nozzles | 1440/Head | ||||
| Color | 4 Colors:KCMY/KCMY+White | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of Head | 2-5mm | ||||
| Size of Ink Droplet | 1.5-21pl | ||||
| Printing Width | 3000mm | 3000mm | |||
| Media Width | 3300mm | 3300mm | |||
| Speed | 3 pass | 35.9m2/hour | 48m2/hour | ||
| 4 pass | 29m2/hour | 38m2/hour | |||
| 6 pass | 17m2/hour | 25m2/hour | |||
| 8 pass | 12.5m2/hour | 19m2/hour | |||
| Feeder/Take up | Yes | ||||
| Payload | 200kgs | 200kgs | |||
| Heating System | Print heater and Post heater with PID temperature control | ||||
| Ink | Environmental protection type LED UV ink | ||||
| Ink Cartridge | Bulk ink supply | Bulk ink supply | |||
| RIP Software | Iprint 3.8.2 Optional(Photoprint) | ||||
| Control Software | Print console | ||||
| PC System | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W4300× D900× H1250 | ||||
| Packing Dimension | W4500× D980× H700 | ||||
| Gross Weight | 575Kgs | ||||
| Notice:A-starjet 7703 series printer all could use Color-White-Color mode for printing | |||||

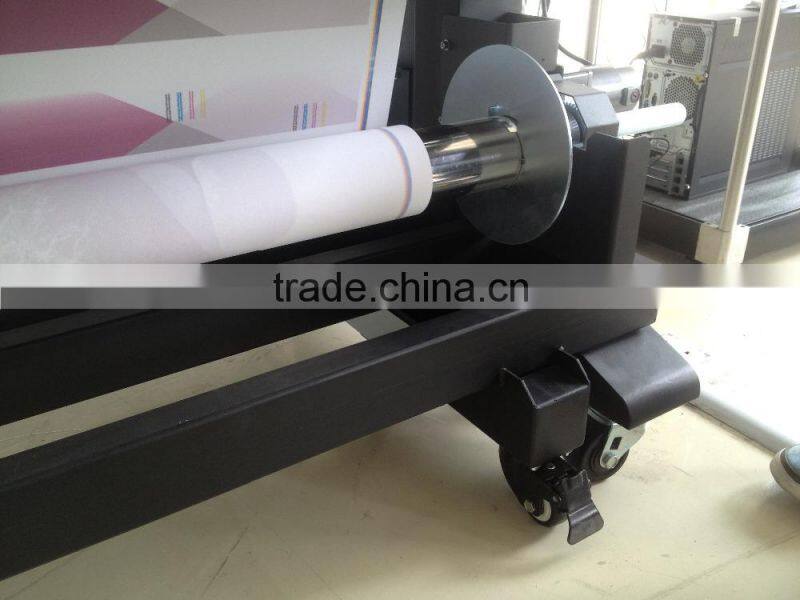

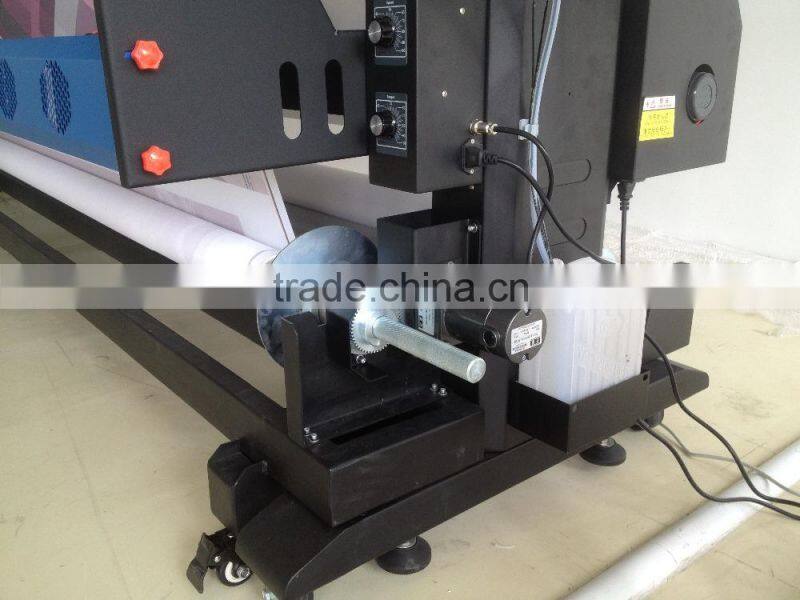

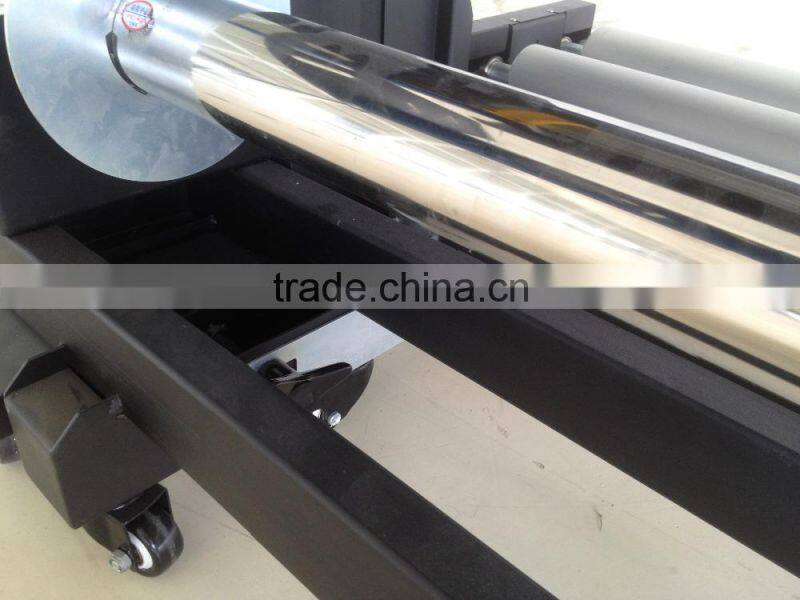

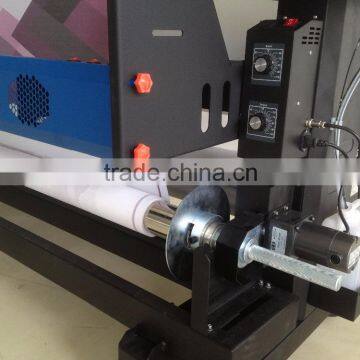

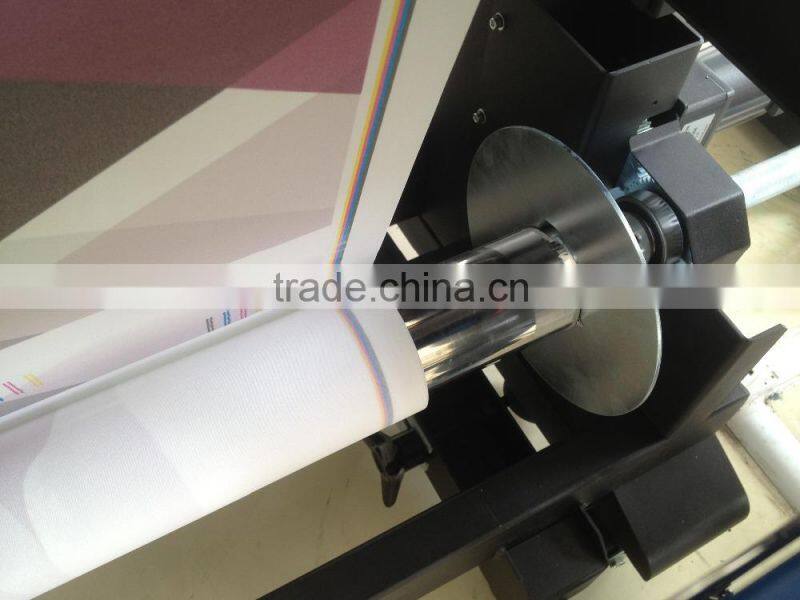

| 3. Special Take-up System of A-Starjet LED UV Printing Machine |

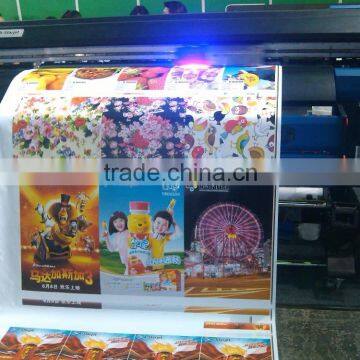

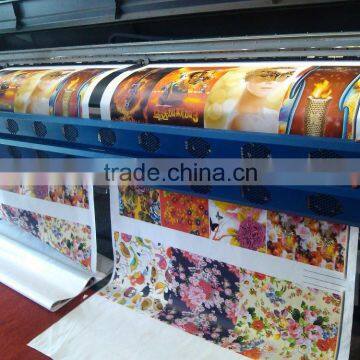

| 4. Printing Sample of A-Starjet LED UV Printing Machine |
1. Banners--- A-Starjet LED UV inkjet printer is perfect for cranking out eye-catching banners for outdoor and indoor use. UV inks are able to deliver vibrant,eye-catching color.
2. Signs--- A-Starjet LED UV inkjet printer can help any print service provider produce more sellable, attention-grabbing signs.
3. Vehicle wraps--- offering exceptional production capability, exxellent imaging and unmatched reliability,
A-Starjet LED UV inkjet printer is outstanding for vehicle graphics applications.
4. Decor--- A-Starjet LED UV inkjet printer is capable of delivering art and photographic reproductions with impressive accuracy and brilliant color.
|
5. Our Service of A-Starjet LED UV Printing Machine |
Reasonable Price
- Directly cooperate with R&D factory.
Comprehensive Guatantee Term
- Print heads are guaranteed when A-Starjet ink being used
- Motors are guaranteed for 6 months
- Printer's boards are guranteed for 15 months
- Counting from the day printer leaves factory
- Within guarantee time, send spare parts in advance and we'll cover all the freight
- After guarantee time, repair fee will be charged
Comfortable After-Sale Service
We are a highly efficient and experienced team.
- Online support Skype, Whats app, TeamView, Youtube, etc.
-
Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale - 24 hours self-service available by Arthur's Youtube channel.
- All printer, parts in stock, able to ship out on any workday.
- Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for 6-7 years.
- Onsite Service is acceptable
Great products with awesome quality!
You deserve it!
