UV LED Printer
- Print on almost any media.
- Provides vivid color and 3D feeling.
- LED and UV resource, environment-friendly.
- Modularity, to upgrade former eco-solvent printer to get dominate.
| 1. LED UV Digital Wall Paper Printer's Details |
Briefing:
UV version’s print width is 3.10m. White ink is acceptable.
1. Generally speaking, UV printer is able to print on any kind of material.
a. Our UV is roll to roll version
b. There are several version UV ink,
1) For soft material
2) For leather, won’t crack when wrinkle
c. We also have UV ink and Coating liquid for hard material,
2.If use DX5 head, it is able to install 1/2 heads.
If use DX7 head, it is able to install 1/2/3 heads.

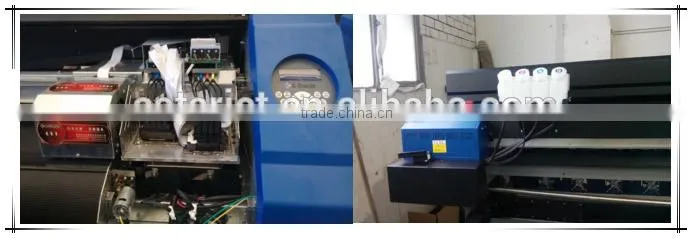

Carriage and Bulk Ink System

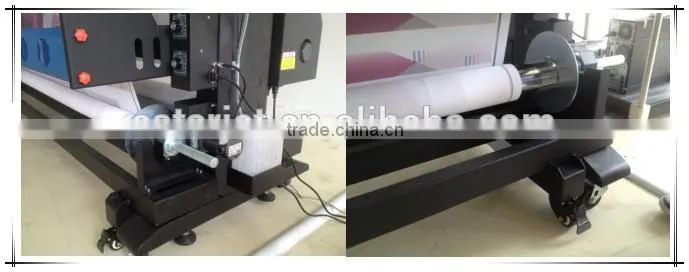

Customized Take Up Carriage
| 2. LED UV Digital Wall Paper Printer's Specification |
| Item | A-starjet 7702L UV | A-starjet 7703L UV | |||
| Print Head | Two DX7 print heads | Three DX7 print heads | |||
| Color | 4 Colors:KCMY/KCMY+White(Optonal) | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of head | 2-5mm | ||||
| Size of ink droplet | 1.5-21pl | ||||
| Printing width | 3200mm | 3200mm | |||
| Media width | 3300mm | 3300mm | |||
| Speed | 3 pass | 35.9m²/hour | 48m²/hour | ||
| 4 pass | 29m²/hour | 38m²/hour | |||
| 6 pass | 17m²/hour | 25m²/hour | |||
| 8 pass | 12.5m²/hour | 19m²/hour | |||
| Feeder/Take up | Standard/Tension and Speed Controllable | ||||
| Payload | 250kgs | 250kgs | |||
| Heating system | Print heater and Post heater with PID temperature control | ||||
| Ink | UV for Micro Piezo head | ||||
| Ink cartridge | 8× 350ml ink cartridges | 12× 350ml ink cartridges | |||
| RIP software | Iprint 3.8.2/Optional Photoprint, Wasatch, Onyx, SDK available | ||||
| PC system | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W4300× D900× H1250 mm | ||||
| Packing Dimension | W4500× D980× H700 mm | ||||
| Net/Gross weight | 360/560Kgs | ||||
| 3. LED UV Digital Wall Paper Printer's Packing |
a. Videos, pictures are provided for examination
b. High quality Fumigation-free wooden pallet can bear 1200kgs
c. Load container services are provided
|
| 4. Samples Print Out By LED UV Digital Wall Paper Printer |
LED UV printing samples
Print at 4+4 Pass, picture produced by Iphone 6
Directly Print on Fabric
Directly Print on Leather
| 5. Company Information |
Terminator Image(Changzhou) Tech. Co., Ltd was a software developer founded in 2006. It's major R&D
developers had engaged in cutting, printing industry over 10 years before founding the company. In 2008
we built our own factory and launched the A-Starjet series printers. A legend begins...
OUR ACHIEVEMENT
| ||
|
8.2008 A-Starjet 5.5 The first eco-solvent printer in China. |
2010 A-Starjet 5.5L/5L The first 3.2M eco-solvent printer in the world. |
Early 2011 A-Starjet NEO The most affordable printer uses DX5 head. |
| ||
|
July 2012 A-Starjet 77802/L The first auto calibrate double side printer in the world. |
March 2013 A-StarCut Roll to Roll The first roll to roll label finisher |
March 2014 A-Starcut sheet |
| 6. Why Us |
Two years experience on UV LED printer, Continuing.
-
From Sep, 2013 to Sep, 2015 (continuing), we have clients using A-Starjet UV series for two years.
The abundance experience allows us able to block problems such as Ink, Cooling, Curving.

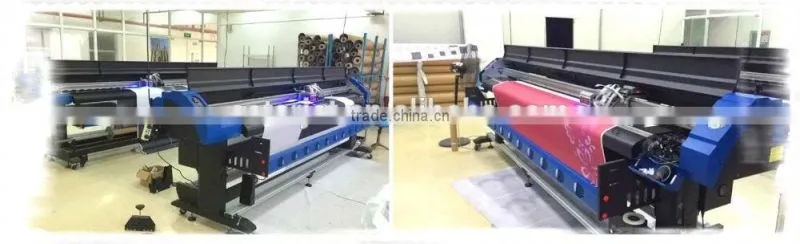

In this picture, one A-Starjet 7702L UV is purchased on Sep 2013, the other A-Starjet 7703L UV is
purchased on March, 2015
Reasonable Price
- Directly cooperate with R&D factory.
Comprehensive Guarantee Term
- Print heads are guaranteed when A-Starjet ink being used
- Motors are guaranteed for 6 months
- Printer's boards are guranteed for 15 months
- Counting from the day printer leaves factory
- Within guarantee time, send spare parts in advance and we'll cover all the freight
- After guarantee time, repair fee will be charged
Comfortable After-Sale Service
- Online support such as Skype, Whats app, TeamView, Youtube, etc
- Onsite Service is acceptable
-
Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale - 24 hours self-service available by Arthur's Youtube channel.
- All printer, parts in stock, able to ship out at any time.
- Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for 6-7 years.
