Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > UV Ink PrinterA-starjet LED UV Print 7701 /7702/ 7703 1.8M

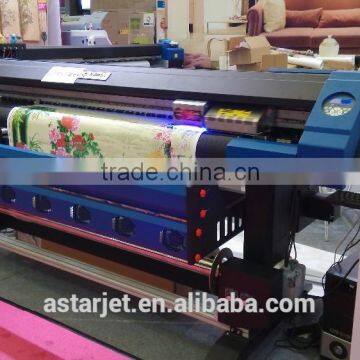

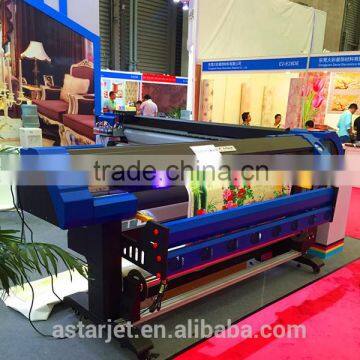

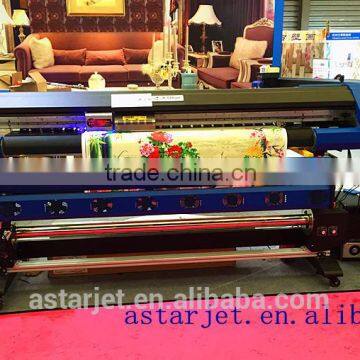

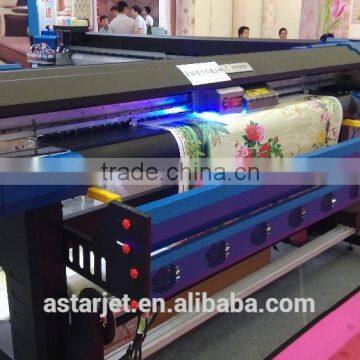

UV Ink PrinterA-starjet LED UV Print 7701 /7702/ 7703 1.8M
US$ 15,700 - 15,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, roll to roll
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai beijing shandong zhejiang jiangsu shenzheng chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
A-Starjet 7702 / 7703 UV LED Flatbed Large Format PrinterUS$ 21,000 - 21,100MOQ: 1 Set -
High Speed Large Format Inkjet Printer For Leather / Pu And CanvasUS$ 15,700 - 15,800MOQ: 1 Set
-
Automatic Flatbed LED UV Printer 1700MM With CMYK Color/Two Print HeadsUS$ 21,000 - 21,100MOQ: 1 Set
-
Large Format Printer, 3.2M/10.5ft/126inch LED UV Printer for Any Material Like Leather/PU/Textile With Epson PrintheadUS$ 21,700 - 21,710MOQ: 1 Set
-
Wide Format LED UV Inkjet Printer With DX7 Head for Printing on Textile/Leather / PU / Wall Paper1.8M/5.9ft/70inchUS$ 16,650 - 16,660MOQ: 1 Set
Condition
New
Plate Type
Other, roll to roll
Place of Origin
Jiangsu, China
Brand Name
A-starjet
Model Number
7701/7702/7703 Print UV Flatbed
Usage
Card Printer, Cloths Printer, Label Printer, Paper Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, Advertising, Textile, Leather, etc
Automatic Grade
Semi-Automatic
Voltage
AC220-240V,50-60Hz / AC110-120V, 50-60Hz
Gross Power
1500W
Dimensions(L*W*H)
W x L x H: 2.84 x 0.90 x 1.25(M)
Weight
220kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
| Item | A-starjet 7702UV | A-starjet 7703UV | |||
| Print Head | Two DX7 print heads | Three DX7 print heads | |||
| Color | 4 Colors:KCMY/KCMY+White(Optonal) | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of head | 2-5mm | ||||
| Size of ink droplet | 1.5-21pl | ||||
| Printing width | 1600mm | 1600mm | |||
| Media width | 1900mm | 1900mm | |||
| Speed | 3 pass | 30.7m²/hour | 44m²/hour | ||
| 4 pass | 23.6m²/hour | 33.7m²/hour | |||
| 6 pass | 15m²/hour | 24m²/hour | |||
| 8 pass | 11.5m²/hour | 16m²/hour | |||
| Feeder/Take up | Standard | ||||
| Payload | 70kgs | 70kgs | |||
| Heating system | Print heater and Post heater with PID temperature control | ||||
| Ink | LED UV ink (RoHs, Reach Cetification) | ||||
| Ink cartridge | 8× 350ml ink cartridges | 12× 350ml ink cartridges | |||
| RIP software | Iprint 3.8.2/Optional Photoprint, Wasatch, Onyx, SDK available | ||||
| PC system | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃ ,Humidity:40-60% | ||||
| Printer Dimension | W2840× D900× H1250 mm | ||||
| Packing Dimension | W2940× D980× H700 mm | ||||
| Gross weight | 360Kgs | ||||
Briefing
* Up to 1440Dpi provides finest details.
* Suit for most media including leather,fabric,semi-rigid substrates.
* UV ink curing on surface instead of absorb by media, provide vividness,sharpness.

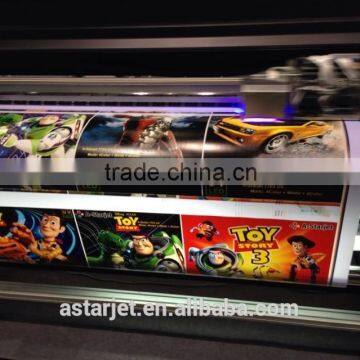

Optimal Vividness and Sharpness
Fabric Availbale
Emsed texture
Print directly on leather
Youtube Video :/watch?v=hDqtEBJ2koY
about exhibition
about the company:
packing:
Fugimation-free wooden pallet,
Printer Dimension(M): W x L x H 2.84 x 0.90 x 1.25/ 220kg
Packing Dimension(M):W x L x H 2.94 x 0.98 x 0.70/360kg
After-Sales Service
Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for
6-7 years.
- Online support such as Skype, Whats app, TeamView, Youtube, etc
- Onsite Service is acceptable
-
Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale - 24 hours self-service available by Arthur's Youtube channel.
-
All printer, parts in stock, able to ship out at any time.
