High impact wear resistance rubber ceramic liner for ball mill,chute and pipe,alumina ball,brick
Cner Advanced Materials Co., Ltd
No.145 Zhengtong Road, Gaoxin district, Zibo city,Shandong province, China 255000
PH: +(86) 533 3147677 Fax: +(86) 533 6286612
Mobile Ph: +86 13678838105 Skype: cner-olga
1>Specifications
1.Product description:
Ceramic Rubber Liner is compounded by rubber sheet, flat or spherical ceramic tiles and
steel plate through hot vulcanizing process.It is fixed to equipment surface by means of bolts
connection. There are two types of ceramic surface:flat and spherical.Ceramic Rubber Liner is
high wearable,high cut-resistant, and super impact-resistant.
2.Features:
High wear and cut resistance
High impact resistance
3.Technical parameters:
3.1.Aluminum Oxide content of ceramic:92±1%;specific gravity of ceramic :3.6±0.1;hardness of ceramic:>mohs hardness 9;color: white.
3.2.Rubber:NR;speeling strength:≥800N/cm
3.3.Steel plate:Q235A
3.4.Selection principles:
The impact surface of direct blanking point should adopt spherical ceramic rubber liner,
other abrasive surface could use flat ceramic rubber liner.
3.5.We can supply concrete working drawing.
4.Selection of standard ceramic liner:
|
Surface shape of ceramic |
Note |
|
spherical |
flat |
||
Iterm of ceramic surface |
17.9mm×17.9mm×10mm |
17.9mm×17.9mm×7.5mm |
|
Item of adhesive liner |
250mm×250mm×15mm |
250mm×250mm×12.5mm |
Adopt import adhesive and special adhesive bonding technology. |
Item of Bolt-Connection liner |
250mm×250mm×21mm |
250mm×250mm×8.5mm |
Thickhess of steel plate :6mm;number of connecting bolts:2; exposed screw bolt length: 35mm. |
Note:We make products according to customers' requirements.
2> Inspection Report of Rubber:
| No. | Item | Test Result |
| 1 | Shore hardness |
65 |
| 2 | Tensile Strength(MPa) | 19 MPa |
| 3 | Tensile elongation(%) | 589.08% |
| 4 | Bond strength of rubber and ceramic (MPa) | 18 MPa |
| 5 | Bond strength of rubber and steel(MPa) | 17 MPa |

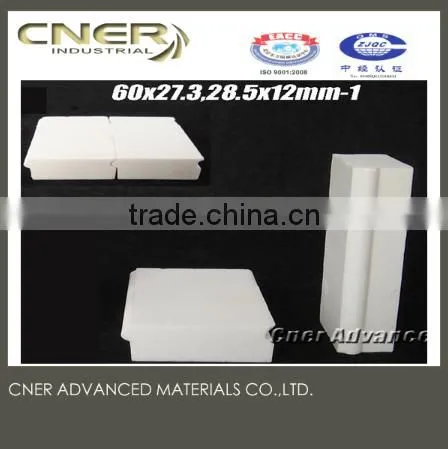

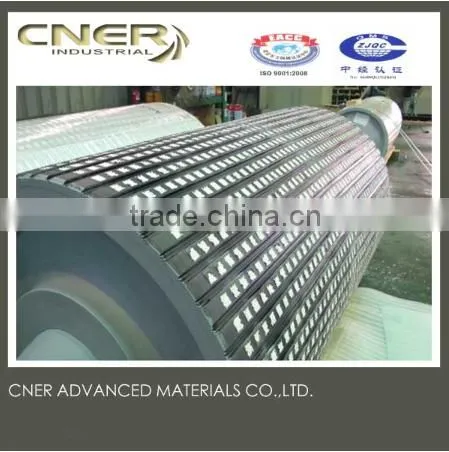

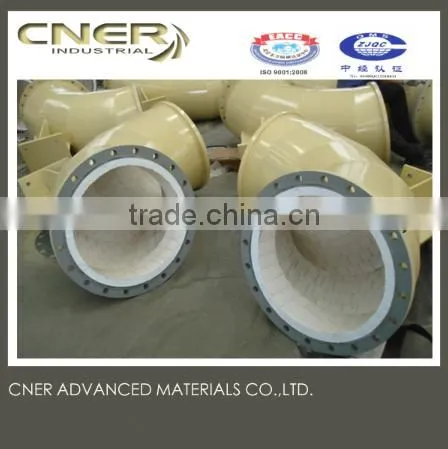

3> Products photos:
4> Certificate:
5> FAQ
Q: 1. Can I have a sample order?
A:Yes,we welcome sample order to test the product quality. Kindly let us know the detailed information
Q: 2. Do you have any MOQ limit?
A:According to different type of products, the MOQ limit is different.we looking forward to your inquiry.
Q:3. What is the lead time?
A: Mass production will take 15-25days, it will also depends on the order volume.
Q: 4.How about the quality of your products?
A: All of our products are conforms to the strict quality control during each processing phase.Also we have strict quality inspection procedure.
Q: 5. Can we visit your company?
A: No problem,we welcome to your arrival at any time.
