1>.Product description:
1. Ceramic Rubber Liner is compounded by rubber sheet, flat or spherical ceramic tiles and
steel plate through hot vulcanizing process.It is fixed to equipment surface by means of bolts
connection. There are two types of ceramic surface:flat and spherical.Ceramic Rubber Liner is
high wearable,high cut-resistant, and super impact-resistant.
2.Features:
High wear and cut resistance
High impact resistance
3.Technical parameters:
3.1.Aluminum Oxide content of ceramic:92±1%;specific gravity of ceramic :3.6±0.1;hardness of ceramic:>mohs hardness 9;color: white.
3.2.Rubber:NR; Peeling strength:≥25 Mpa
3.3.Steel plate:Q235A
3.4.Selection principles:
The impact surface of direct blanking point should adopt spherical ceramic rubber liner,
other abrasive surface could use flat ceramic rubber liner.
3.5.We can supply concrete working drawing.
4.Selection of standard ceramic liner:
|
Surface shape of ceramic |
Note |
|
spherical |
flat |
||
Iterm of ceramic surface |
17.9mm×17.9mm×10mm |
17.9mm×17.9mm×7.5mm |
|
Item of adhesive liner |
250mm×250mm×15mm |
250mm×250mm×12.5mm |
Adopt import adhesive and special adhesive bonding technology. |
Item of Bolt-Connection liner |
250mm×250mm×21mm |
250mm×250mm×8.5mm |
Thickhess of steel plate :6mm;number of connecting bolts:2; exposed screw bolt length: 35mm. |
Note:We make products according to customers' requirements.

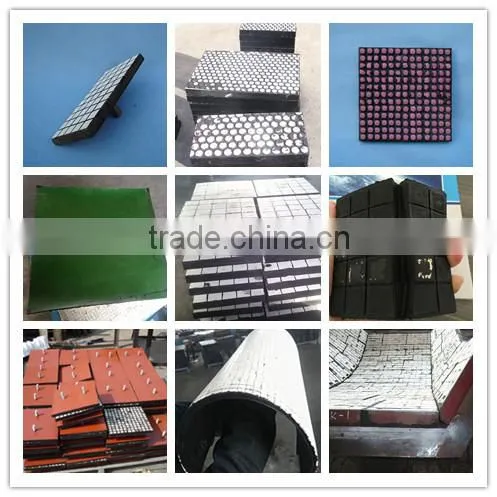

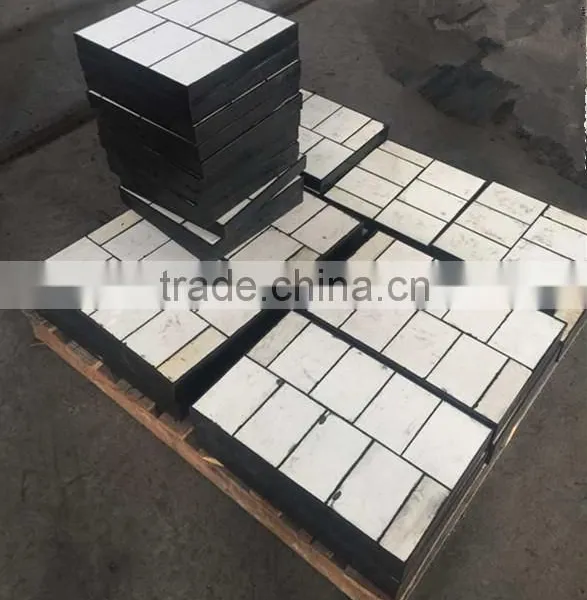

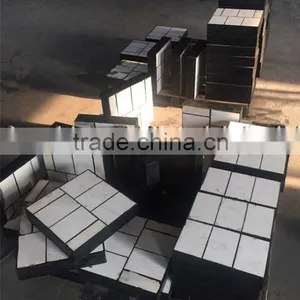

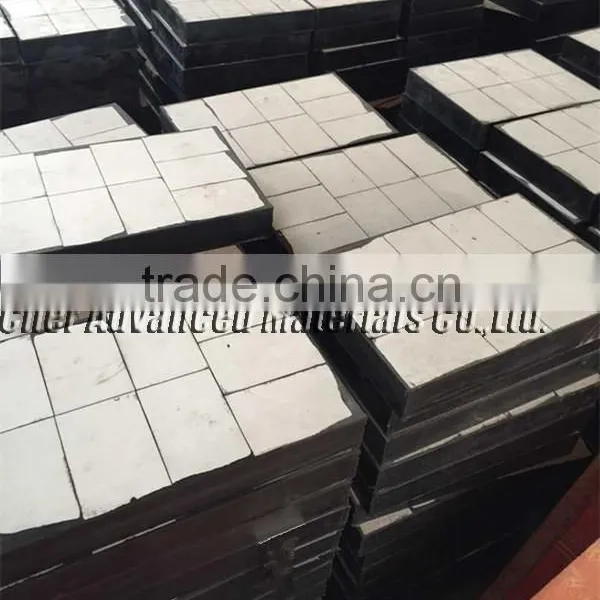

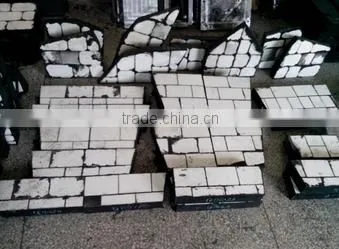

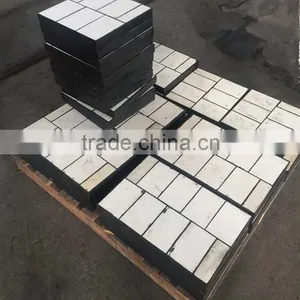

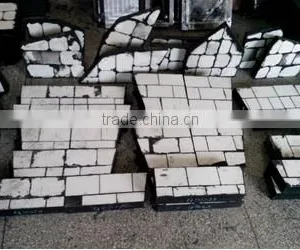

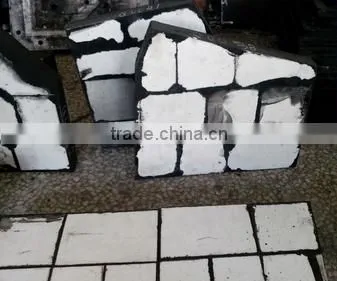

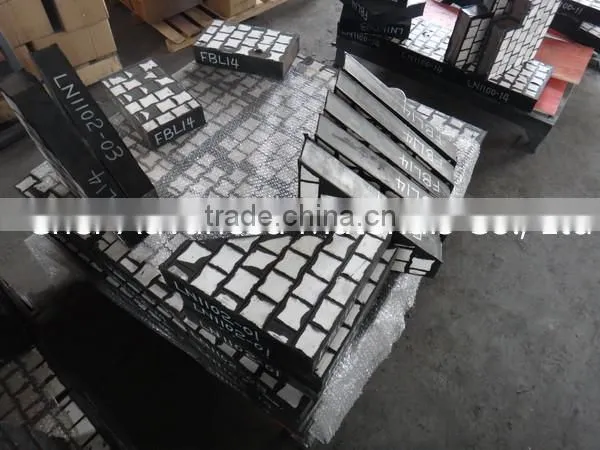

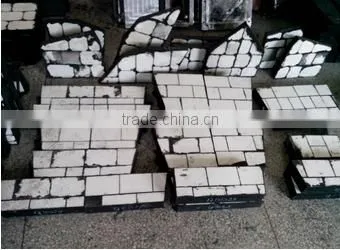

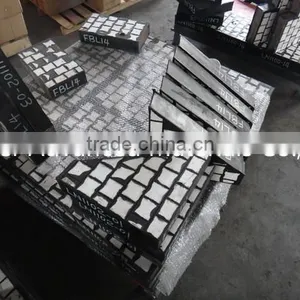

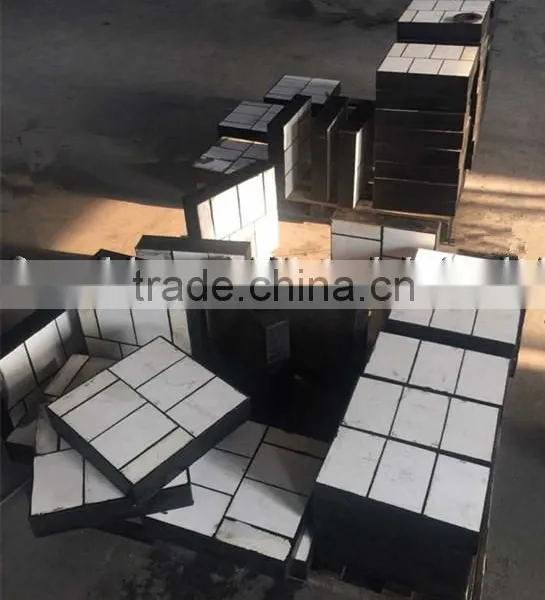

2> Production Photos:
3> Inspection Report of Rubber:
| No. | Item | Test Result |
| 1 | Shore hardness |
65 |
| 2 | Tensile Strength(MPa) | 19 MPa |
| 3 | Tensile elongation(%) | 589.08% |
| 4 | Bond strength of rubber and ceramic (MPa) | 18 MPa |
| 5 | Bond strength of rubber and steel(MPa) | 17 MPa |

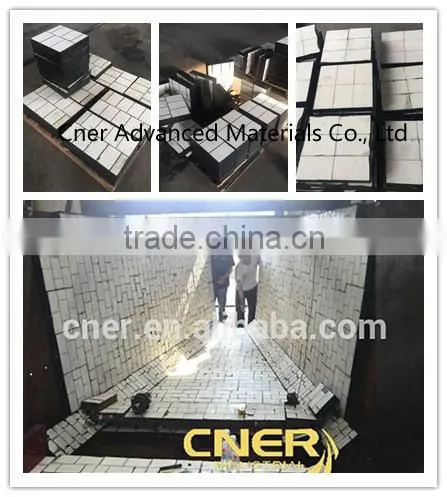

4>. Applications:
Wear Resistant Rubber Ceramic Panels is new generation composite panels, a co mbination of wear resistant alumina ceramic cylinders/ceramic tiles vulcanized in resilient rubber base. The alumina ceramic surface provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics. Rubber also helps to substantially reduce the vibrations, sounds, and the impact shock generated from impacting rocks. Laid out in zigzag and brick pattern, ceramic tiles/cylinders is an excellent feature for handling large material volumes at different angles without developing a wear pattern. As excellent impact and wear resistant material,The panel is suitable for feeders, chutes, bins, transfer points, in conveyor systems, screen feed plates, mill discharge chutes, bunker etc. The major applicable industries are Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces.
5>.Certification:
6>. FAQ
Q: 1. Can I have a sample order?
A:Yes,we welcome sample order to test the product quality. Kindly let us know the detailed information
Q: 2. Do you have any MOQ limit?
A:According to different type of products the MOQ limit is different.we looking forward to your inquiry.
Q:3. What is the lead time?
A: Mass production will take 15-25days, it will also depends on the order volume.
Q: 4.How about the quality of your products?
A: All of our products are conforms to the strict quality control during each processing phase.Also we have strict quality inspection procedure.
Q: 5. Can we visit your company?
A: No problem,we welcome to your arrival at any time.
