SCP230/12D Mast climb work platform
- 0 per Month
- T/T
-
CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
-
China Supplier Single-Arm Rack Floating Crane for Bulk Cargo
-
Barge Mounted Crane for Bauxite Discharging Transfer From Vessel to Barge
-
Port Grab Crane Coal Bauxite Sand Stone Unloading Crane
-
Fixed Type Lattice Boom Port Crane Heavy Duty
-
Lattice Boom Port Fixed Crane Widely Usage with Customized Color
Product Details
| Max. Lifting Height: | 150Meters | Brand Name: | TDT | Certification: | CE |
| Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

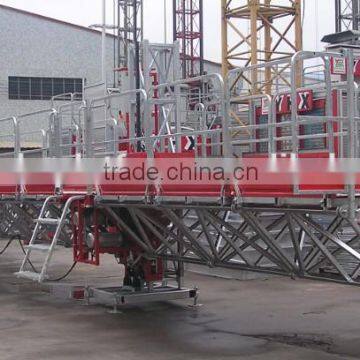

SCP230/12D Mast climb work platform
1500-3600kgs capacity; 250m max working height. 30m max working platfrom length
Safety devices of the Mast Climbing work platform MC-3615 : -Self braking motors. -Hot-dip galvanized structural elements for a long duration. -Double safety limit switches up and down -Safety interlocks on access gates -Audio travel alarm -Base leveling screw jacks with safety locks -Safety top mast section with interrupted rack -Phase control and over charge electrical protection -Twin mast automatic self leveling device -Emergency No power manual descent device -Emergency Stop Button -Emergency parachute Brake.
Technical Specification: -Max Weight 250m -Platform width 1,3m -Extensions length 1m -Distance between ties 6m/9m -Mast Section height and weight 1,5m 41 KG -Length/weight platform sections 1,5m 103Kg/1m 70 Kg -Weight of drive unit with base 762 Kg -Lifting Speed 6m/min -Three-phase power supply 50/60 Hz 230/400 V

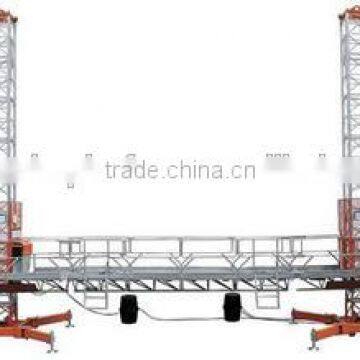

PLATFORM TYPE | TWIN MAST MC-36/15e ASCLIMBER | SINGLE MAST MC-36/15e ASCLIMBER |
Maximum height | 332.18 ft | 332.18 ft |
Maximum distance from ground to first anchoring | 19.68 ft | 19.68 ft |
Maximum total capacity | 7936.6 lb | 3307 lb |
Maximum distance between anchors | 29.52 ft | 19.68 ft |
Maximum length of working area | 98.75 ft | 32.15 ft |
Width of working area | 4,43 ft | 4,43 ft |
Maximum extension towards wall | 3,12 ft | 3,12 ft |
Motor power (BN 100LA - FD 15) | 4x2,2 KW | 2x2,2 KW |
Elevation speed | 20.3 ft/min | 20.3 ft/min |
Geared motor electrical consumption | 2x5,4A | 5,4A |
Consumption upon elevation start | 2x24,3A | 24,3A |
Power supply | 400V-50Hz | 400V-50Hz |
Maximum allowed wind speed in service – w/o anchors | 28.4 mi/h | 28.4 mi/h |
Maximum allowed wind speed in service | 34.6 mi/h | 34.6 Km/h |
Maximum force against rails | 198.5 lb | 198.5 lb |
Maximum wind speed during mounting/dismounting | 28.4 mi/h | 28.4 mi/h |
Maximum wind speed when out of service | 102.6 mi/h | 102.6 mi/h |
Leq Acoustic level | 60 dB(A) | 60 dB(A) |
