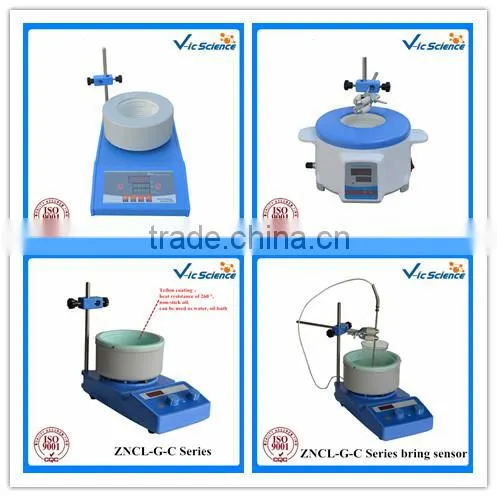

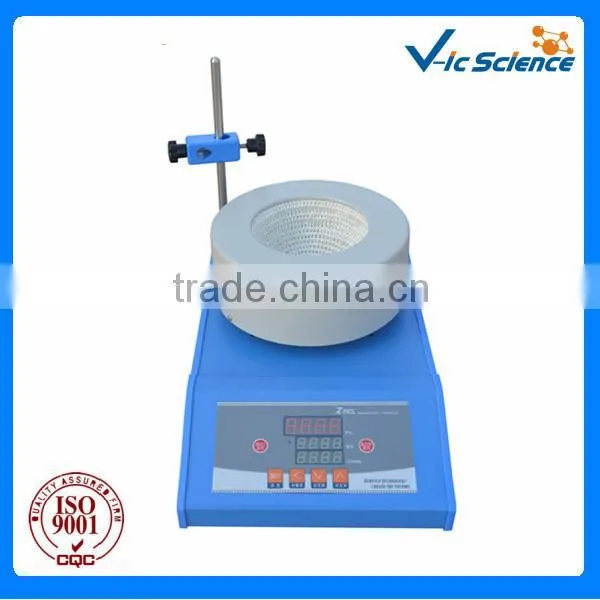

ZNCL-T Intelligent Magnetic Stirring Electric Furnace

Name: ZNCL-T Intelligent Magnetic Stirring Electric Furnace
Brand: Vic Science
SKU: 131857583

US$ 188 - 488 MOQ: 1 Set

Key Specifications

Brand Name:

Vic Science

Model Number:

ZNCL-T 2000ml

Place of Origin:

Henan, China

Xinxiang Vic Science & Education Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Vic Science

Model Number ZNCL-T 2000ml

Place of Origin Henan, China

Intelligent magnetic stirring electric furnace

1. Product features:

1.	Using the heating mantle to warm up with features of big heating area,blance and swift warming up,maximum temperature 380°C.
2.	Temperature control adopts uzzy PID control algorithm ,with double screen digital display , self adjustment function ,high precision ,small temperature difference ,160-240V wide voltage power supply.
3.	Can heat and stir the standard and off-standard 50-10000ml reaction flasks and other canisters.
4.	The shell adopts one-time forming flame retardant strengthen PBT injection moulding shell, with thermostability,and good insulation property.
5.	30°cant control panel is suitable for standing and sitting viewing angle.

2.Product detailed parameters:

Model	ZNCL-T100	ZNCL-T250	ZNCL-T500	ZNCL-T1000	ZNCL-T2000	ZNCL-T3000	ZNCL-T5000	ZNCL-10000
Voltage	220V 50 HZ
Accuracy	±1°C	±1°C	±1°C	±1°C	±1°C	±1°C	±1°C	±1°C
Range of temperature Control	room temperature-380°C
Range of speed	0-2000 r / min
Capacity of mixing(ml)	100ml	250ml	500ml	1000ml	2000ml	3000ml	5000ml	10000ml
Working time	Continuous
SIZE (mm)	260155155	260155155	260155155	325215175	430x270x305	430x270x305	500x330x305	500x330x305
Net weight(g)	2500 ±50g	2500 ±50g	2600 ±50g	2800 ±50g	3000g±100g	3200g±100g	3500g±200g	4500g±300g
Packing detail(mm)	310205205	310205205	310205205	375265225	480x320x355	480x320x355	550x380x355	550x380x355
Power(w)	130	216	230	530	650	730	1100	2100
Motor power	8W,DC14V	8W,DC14V	8W,DC14V	8W,DC14V	40W,DC40V	40W,DC40V	40W,DC40V	40W,DC40V
Range of boiling time (Minute)	7—12	7—12	7—12	7—12	10—15	10—15	15—20	20—25
