High efficiency thickener for minerals dewatering
- 150 Set / Sets per Month
- Qingdao Shanghai or customized
- High efficiency mining thickener for minerals dewatering
- Hot selling high quality thickening equipment NZ(S) center drive thickener with factory price
- High Capacity Thickening Process Sedimentation Tank , Thickener
- Center Drive Mining Thickener Tank
- China Top Quality Best Price Agitator Thickener Tank
- High performance of river gold mining thickener
Product Details
Condition: | New | Motor Type: | AC Motor | Power(W): | 5.5 |
Production Capacity: | 552 | Place of Origin: | Shandong, China | Brand Name: | Zhaoxin |
Model Number: | NZ | Dimension(L*W*H): | depends on the model | Certification: | ISO9001:2008 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude package for main machines and standard package for spare parts or customized
Product Description

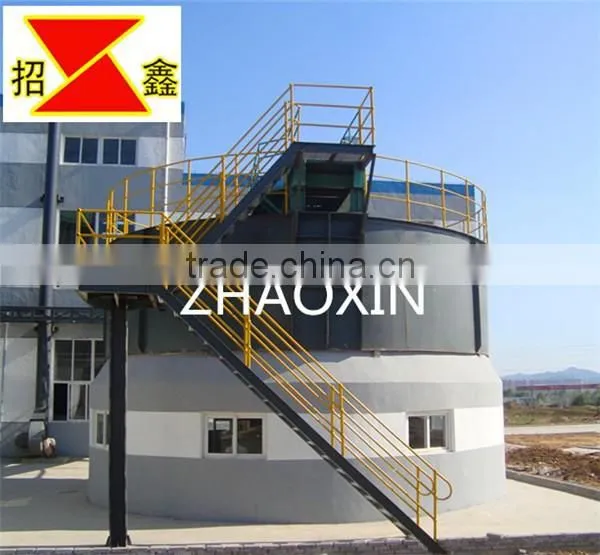

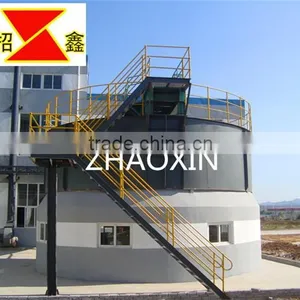

mining thickener equipment Center Drive Thickener
I. Introduction
1.TNZ-3.6, 6, 9 and 12m concentrators are mono-layer center driving concentrators whose tanks are respectively 3.6m, 6m, 9m and 12m in diameter and which are 3.6m in diameter and 1.8m in height. They are mainly used for dehydration treatment of wet concentrate during beneficiation process. This machine is used in the first stage of dehydration process, i.e. concentration. 2.Usually, concentrated products containing 30% to 60% of water can be obtained. Such machine is usually placed between dry concentration equipment and filtration equipment. Sometimes, it is used as plant for dehydration before concentration.
II. Structure and Working Principle of Concentrator
The center driving concentrator is machine composed of open-end cylindrical groove 1. racking 2. vertical axis 3. rake 4. discharge hopper 5. feed port 6. overflow port 7. (9m concentrator will be customized by the users during design of tank) 8. signal device 9. lifting device 10. motor 11. reducing mechanism, etc.
Its power is output by the motor (10) which is transmitted to the vertical axis through the reducing mechanism (11) and drives the gyration of the rake mounted below the vertical axis, so as to serve the purpose of concentration of such machine.
The pulp is fed into the tank of the concentrator through the feed hopper (6) by special-purpose pipe or trough. After concentrated, the pulp flows through the overflow groove above the trough and is discharged to proper place by special-purpose pipe. The concentrated product falls on the bottom of the trough and is scraped by the slowly rotating rake to the discharge hopper in the center of the trough (5), and is then discharged to proper place by the pipe connected with the hopper (5).
III. Technical Specification of TNZ-3.6, TNZ-6, TNZ-9 and TNZ-12 Concentrator
No. | Item | Data | TNZ-6 Type (3.6) | TNZ-9 Type | TNZ-12 Type | |
1 | Trough | Diameter | mm | φ6000 (φ3600) | φ9000 | φ12000 |
Depth | mm | 3000(1800) | 3000 | 3500 | ||
2 | Rake | Rotational speed | RPM | 0.3(0.4) | 0.26 | 0.19 |
3 | Production | Capacity | Ton/day | 14-62(24) | 32-150 | ≤250 |
4 | Within the trough | Pulp capacity | m3 | 84(174) | 190.5 | 395 |
5 | Precipitation | Area | m2 | 28(10.2) | 63.5 | 113 |
6 | Overall dimension | Circumference | mm | 6170(3917) | 10000 | 15500 |
Height | mm | 5153(3194) | 5337 | 6625 | ||
7 | Weight | Concentration tank | Kg | 5330(1777) | (Cement pit) |
|
Concentrator (including driving parts) | kg | 8575(2875) | 5165 | 8880 | ||
8 | Power | Installation power | KW | 1.5(1.1) | 3 | 3 |
Required power | KW |
|
|
| ||
9 | Driving device | Motor | KW | Y100L2-4 (Y90L-6) | Y132S-6 | Y132S-6 |
10 | Auxiliary drive | Speed reducer | KW | PYH-120-II i=31 (WXJ-120-31-Ⅰ) | PM350 II-4E i=23.34 | JEQ-400-V--4E I=20.49 |
Cylindrical gear | KW | E1=18 E2=50 i=2.78 | E1=20 E2=40 i=2 | E1=46 E2=46 i=2.875 | ||
11 | Rake driving unit | Single thread worms | KW | m=12(m=12) | m=12 |
|
Turbine | KW | m=12 E=56 (m=12 E=52) | m=12 E=79 |
| ||
12 | Rake | Lifting height | mm | 325(350) | 350 | 250 |
13 | Driving shaft | Diameter | mm | φ85(φ60) | φ90 | φ110 |
14 | Overflow discharge pipe | Inner diameter | mm | 150 | User-defined | User-defined |
15 | Discharge mouth | Inner diameter | mm | 200(80) | 200 | φ140 |
