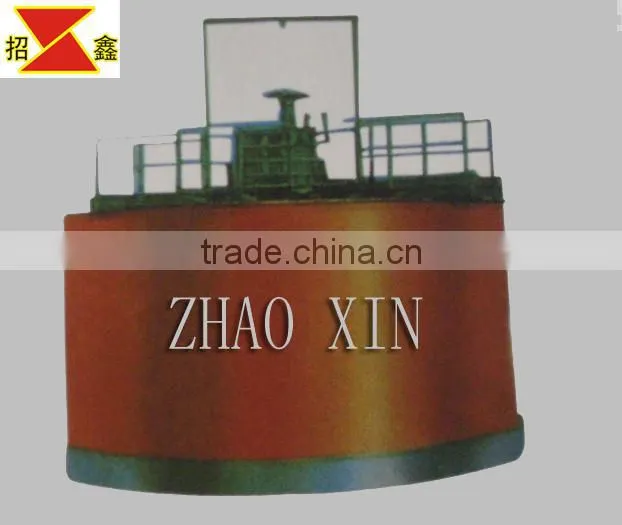

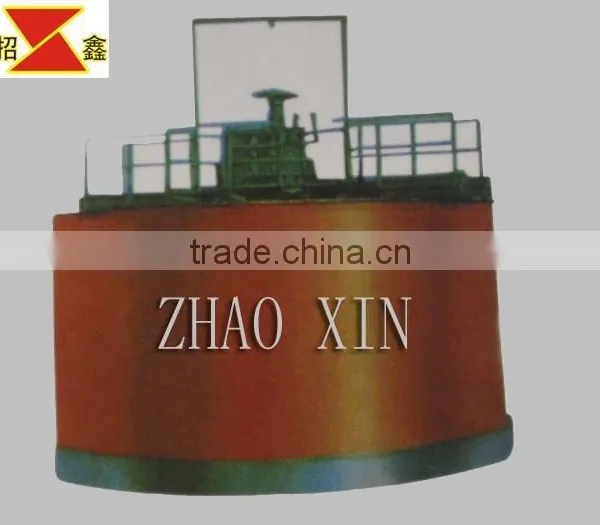

NZ(S) center drive thickener
1.1 Product Features
NZ(S)(also named TNZ)thickener is a center-drive thickener, which is a traditional thickening equipment with earlier application. The thickeners with a diameter less than 12m is of manual handle type, and thickeners with a diameter over 12m adopt electric handle devices. Large-scale thickener is usually arranged with a concrete tank, with overload indicating or alarming devices. This machine has the features like simple structure, lower wearing and convenient maintenance.
1.2 Notes for Selection
1.2.1 For corrosive ore pulp, an anticorrosive thickener is available, which shall require a special order.
1.2.2 Considering the factors like transportation and construction period, the customer shall specify whether the thickener requires a thickening tank or not.
Technical parameter list of NZ (S) thickener
|
Model |
pond for concentration |
(m2) Sediment area |
(r/min) Speed of frame |
(t/d) Production capacity |
Transmission Motor |
(r/min) Speed |
(mm) Dimension (L×W×H) |
(kg) Weight |
||
|
(m) diameter |
(m) Depth |
Model |
(kw) Power |
|||||||
NZ-1.8 |
1.8 |
1.8 |
2.55 |
0.5 |
1.3~5.6 |
Y90L-6 |
1.1 |
910 |
2000×1960×2900 |
1490 |
NZ-3.6 |
3.6 |
1.8 |
10.2 |
0.4 |
5~24 |
Y90L-6 |
1.1 |
910 |
3917×3787×3194 |
2875 |
NZ-6 |
6 |
3 |
28 |
0.3 |
14~62 |
Y90S-4 |
1.1 |
1430 |
6170×5170×5153 |
8575 |
NZ-9 |
9 |
3 |
63.5 |
0.26 |
32~150 |
Y132S-6 |
3 |
960 |
10000×10000×5337 |
5370 |
NZ-12 |
12 |
3.5 |
113 |
0.19 |
≤250 |
Y132S-6 |
3 |
960 |
15500×12000×6625 |
8880 |
NZ-15 |
15 |
3.6 |
176 |
0.113 |
≤390 |
Y132M2-6 |
5.5 |
940 |
17240×16000×7500 |
10557 |
NZ-18 |
18 |
3.6 |
250 |
0.1 |
≤552 |
Y132M2-6 |
5.5 |
940 |
19700×18860×7650 |
12338 |
Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.

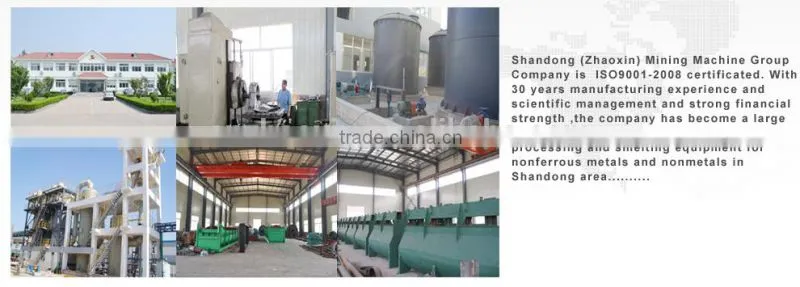

Shandong (Zhaoxin) Mining Machine Group Company is ISO9001-2008 certificated. With 30 years manufacturing experience and scientific management and strong financial strength ,the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area .Zhaoxin machinery has exported to 20 and more countries.The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment , there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover , the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Certificates
Application:
-Mining and mineral process
-Iron ore processing plant
-Sump sewage transfer
-Submersible liquid
-Coal washing plant
-Gold mining company
-Dredging process
-Gravel & sand process
-Trash handle
-Tailing handle
-Mud pump
If you have any problems, please feel free to contact us. We would do our best to solve them as soon as possible. Welcome to negotiate the price, you can gain the maximum efficiency with the minimum investment.
