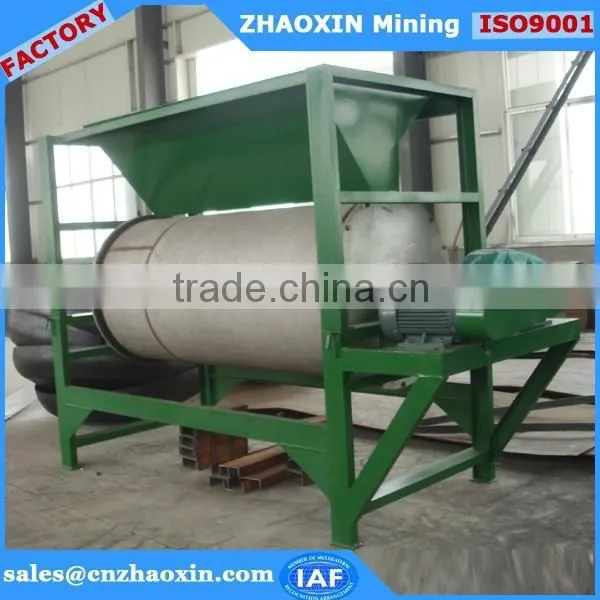

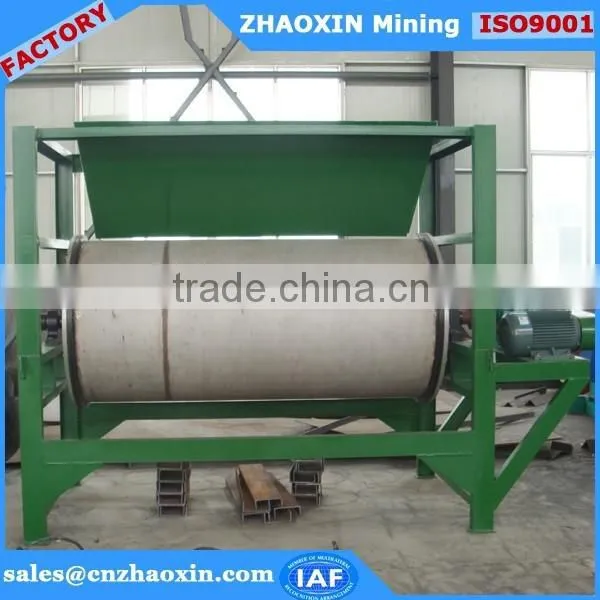

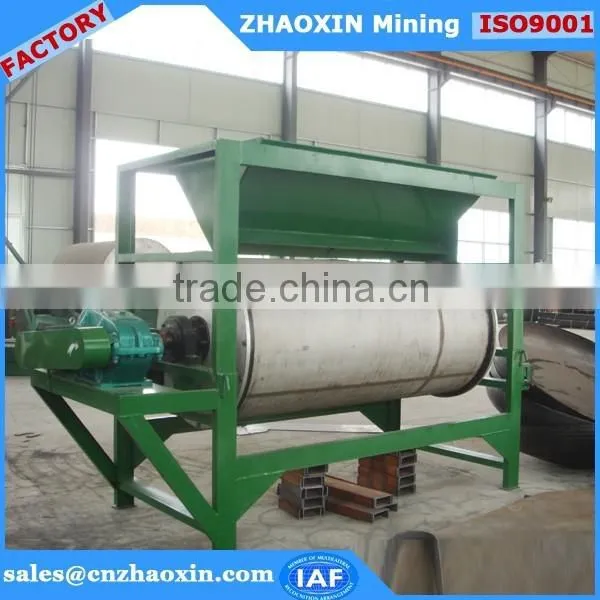

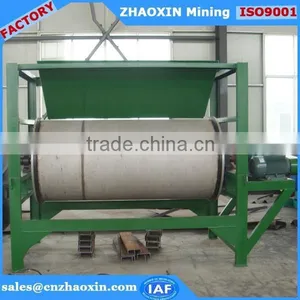

iron ore magnetic separator dry type
Features of iron ore separator dry type
1. Dry magnetic separator is a dry type midfield magnetic cylinder.
2. Magnetic field intensity on drum surface amounts to more than 3000GS, 3500GS.
3. Dry magnetic separator is widely used in processing sand ore, dividing the ore into two types: magnetic type and non magnetic type.
Technical parameter of iron ore separator dry type
| Diameter of the drum (mm) | Width of the drum(mm) | Length of drum(mm) | Average magnetic field intensity on the surface of the drum(Gs) | Rotation speed of the drum(r/min) | Powder material of the eliminate iron powder(t/h) | Powder material of the impurity iron powder(t/h) | Weight(kg) | |
| CTZ-32/40 | 320 | 400 | 500 | 3000 | 20-30 | 0.8 | 10 | 120 |
| CTZ-32/50 | 320 | 500 | 600 | 3000 | 1 | 15 | 150 | |
| CTZ-40/50 | 400 | 500 | 600 | 3000 | 2 | 20 | 240 | |
| CTZ-50/50 | 500 | 500 | 600 | 3000 | 3.5 | 30 | 360 | |
| CTZ-32/65 | 320 | 650 | 750 | 3000 | 2 | 20 | 210 | |
| CTZ-40/65 | 400 | 650 | 750 | 3000 | 2.8 | 30 | 350 | |
| CTZ-50/65 | 500 | 650 | 3000 | 4.5 | 40 | 420 | ||
| CTZ-63/65 | 630 | 650 | 3000 | 7 | 45 | 430 | ||
| CTZ-40/80 | 400 | 800 | 950 | 3000 | 8 | 55 | 470 | |
| CTZ-50/80 | 500 | 800 | 3000 | 10 | 65 | 600 | ||
| CTZ-63/80 | 630 | 800 | 3000 | 10 | 80 | 800 | ||
| CTZ-80/80 | 800 | 800 | 4000 | 12 | 100 | 980 | ||
| CTZ-63/100 | 630 | 1000 | 1150 | 3500 | 12 | 120 | 1200 | |
| CTZ-80/100 | 800 | 1000 | 1150 | 4000 | 15 | 140 | 1300 | |
| CTZ-100/120 | 1000 | 1200 | 1400 | 4000 | 20 | 180 | 1580 | |
| CTZ-125/140 | 1250 | 1400 | 1600 | 4000 | 30 | 250 | 1950 |

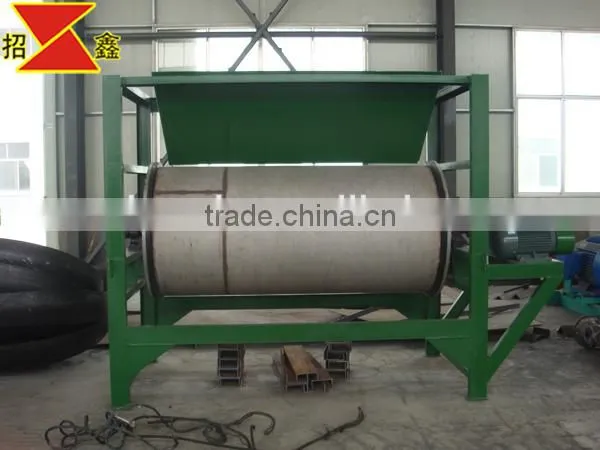

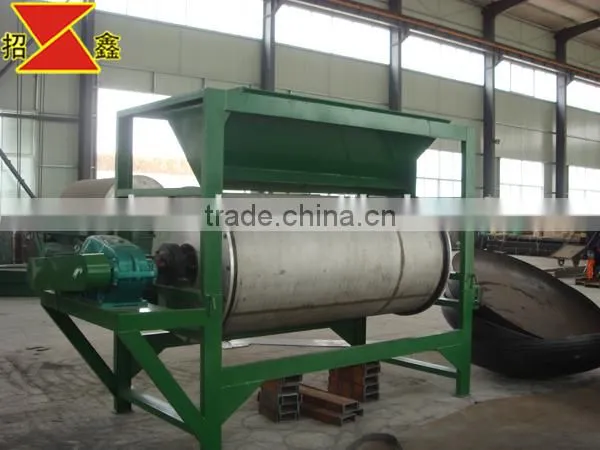

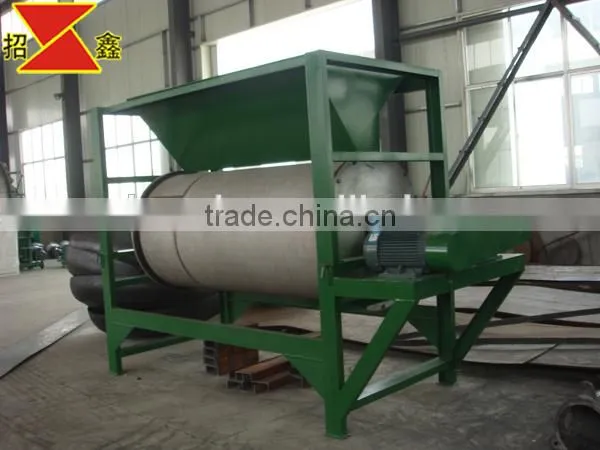

iron ore separator dry type
Safe shipment of iron ore separator dry type
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. Depends on detailed product. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our product, please feel free to contact us.
