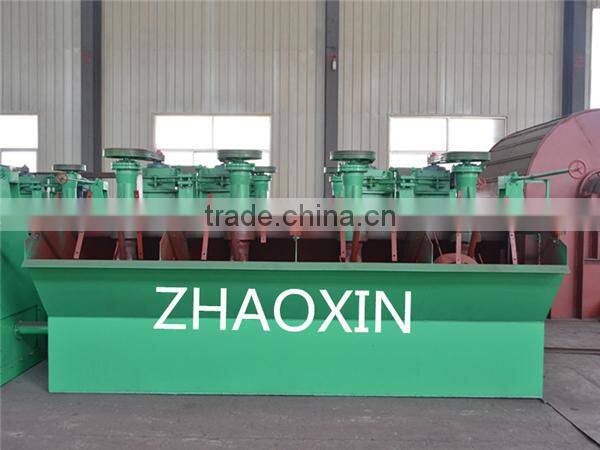

2015 hot sale high efficiency flotation equipment JJF flotation machine from China
I. Product features
This product is arranged with a false bottom and a diversion duct, without precipitation
into the tank. There is no need to discharge the ore while shutting down the machine. The
umbrella-shaped holed dispersing hood of the stator is used as the stabilizer, ensuring
the stability of the liquid level and froth layer. The impeller is cylindrical, with low immerse
depth, low peripheral velocity, low energy consumption and high recovery rate, which is
1-2% higher than that of common type. It has a large production capacity and reliable
performance.
This product has the ability of imbibing the air spontaneously but hasn’t the ability of
imbibing the ore pulp spontaneously. While using it separately, terrace arrangement with
300-400mm drop height is required. The return of foam depends on the foam pump.
Usually, JJF type and SF type flotation machines combine an integral unit. SF type acts
as an ore pulp imbibing tank, while JJF acts as a direct flow tank. In such a way, a
horizontal arrangement is realized, which needs neither a drop height nor a foam pump.
II. Note for selection
While placing your order, in addition to specifying the model and quantity, make sure to provide the flotation circuit and the following Configuration scheme and feeding mode; quantity of the scrapers and mode of drive(right drive or left drive); quantities of feeding chambers, intermediate chambers, and crude ore chambers ;other special requirements
No electric control cabinet will be supplied.
The flashboard will be made according to the manufacturer's drawings. And the electric driven flashboard will be adopted for large-scale floatation machine.

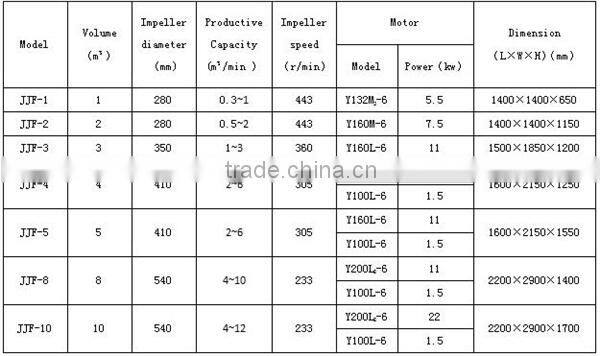

III. Technical Parameter List
We can provide various types of flotation machine, such as XJK, SF, BF, JJF,BS-K, XCF-KYF etc. Welcome to send us e-mails to get more information about our company and products. We spare no efforts in endeavoring to be of service to you.
Packaging Details:nude package for main machines and standard package for spare parts or customized
Delivery Detail: 7 to 28 working days after receipt of the advance payment
Before sales:
Guide customer to choose the most suitable type of equipments. Provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sales:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After sales:
Company can send technical persons for guiding to install, debug and train the workers.
We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Shandong(Zhaoxin) Mining Machinery Group Company as Shandong(Zhaoxin) Heavy Machinery Co., Ltd with 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals in Shandong area.
Welcome to visit our factory!!!
Q: About payment
A: Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
Q: How to get an accurate quotation?
A: Please kindly advise the following information to facilitate us to quote accordingly:
a. stone type; b. the capacity(tons/hour); c. input size; d. output size, or more of your requirement.
Q: About instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your
problems.
If you have any questions about our products or services, pls don’t hesitate to let us know.
