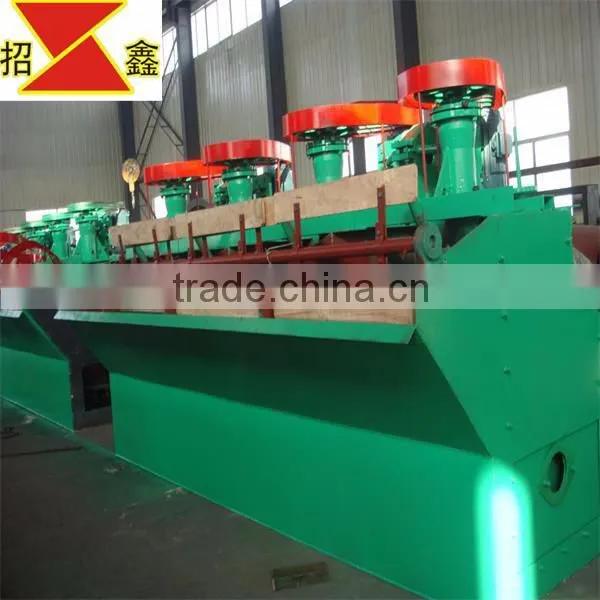

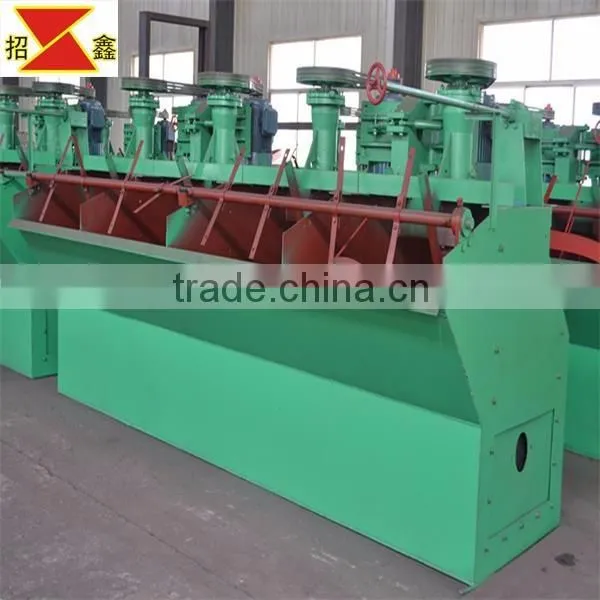

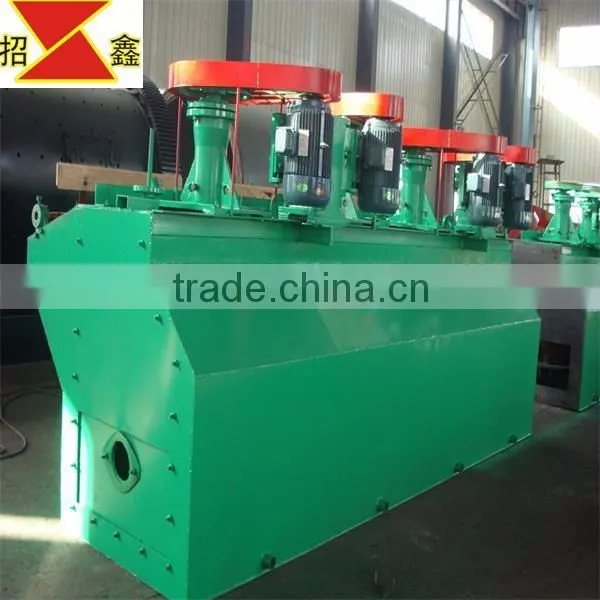

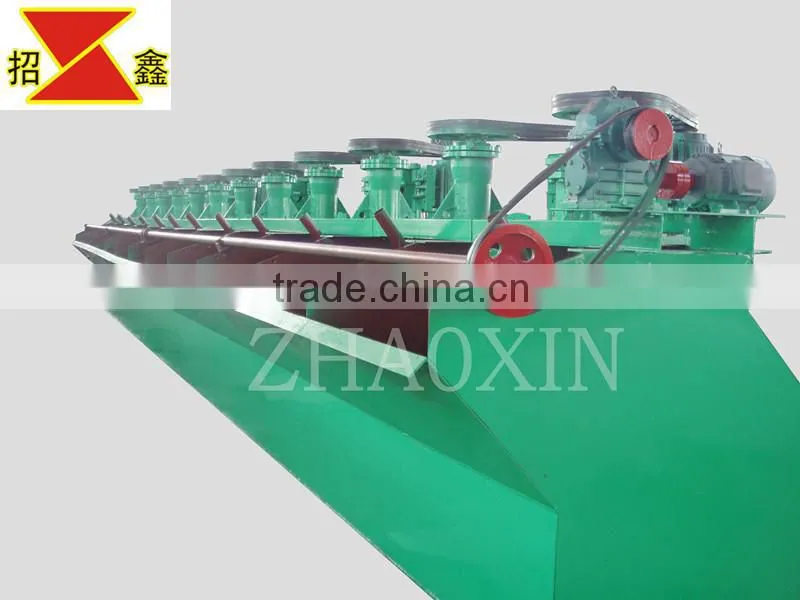

XJK Flotation Machine
Features of flotation machine

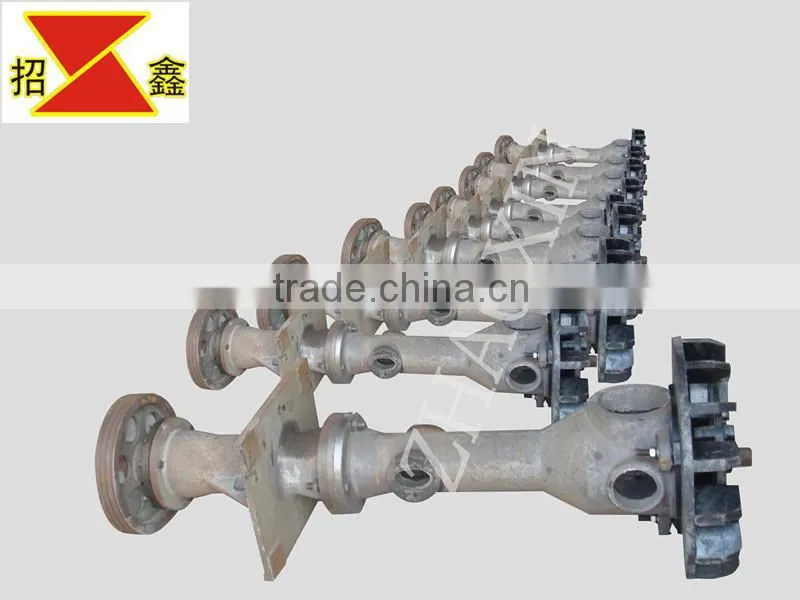

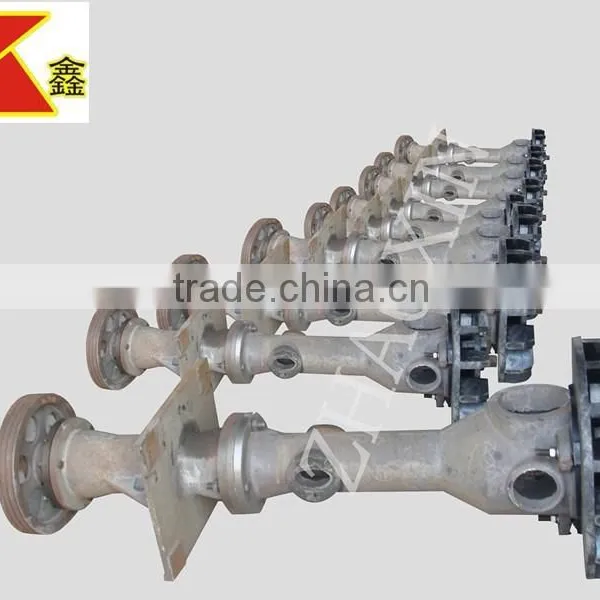

As a gold mining flotation machine initially introduced into China from the previous Soviet Union, this product can imbite the air and ore pulp spontaneously, and it's easy for the return of middlings to realize gravity flow, with no auxiliary equipment required. Its configuration is in good order; with easy and simple operation and maintenance. However, it has the disadvantages like small air injection amount and high electricity consumption. Rubber parts are adopted for its impeller and cover plate.
XJK(A) Gold Mining Flotation Machine
Notes for selection
While placing your order, in addition to specifying the model and quantity, make sure to provide the flotation circuit and the flollowings.Configuration scheme and feeding mode; Quantity of the scrapers and mode of drive(right drive or left drive); Quantities of feeding chambers, intermediate chambers, and crude ore chambers; Others special requirements.A motor startup device will be equipped while producing.
SF Gold Mining Flotation machine
Technical parameters of gold mining flotation machine
| Model | volume( m³ ) | Impeller Dia(mm) | Productive capacity( m³ /min) | Impeller rotational (r/min) | Motor model | Power | Motor model | Power | Dimension(L*W*H) | Weight(kg) |
| XJK- 0.13 | 0.13 | 200 | 0.05-0.16 | 593 | Y90L-4 | 1.5 | Y80M2-4 | 0.75 | 504*520*700 | 266 |
| XJK- 0.23 | 0.23 | 250 | 0.12-0.28 | 504 | Y100L2-4 | 3 | Y80M2-4 | 0.75 | 604*620*820 | 389 |
| XJK- 0.35 | 0.35 | 300 | 0.15-0.5 | 500 | Y90L-4 | 1.5 | Y80M2-4 | 0.75 | 700*700*906 | 430 |
| XJK- 0.62 | 0.62 | 350 | 0.3-0.9 | 400 | Y132S-6 | 3 | Y90L-6 | 1.1 | 820*900*1156 | 630 |
| XJK- 1.1 | 1.1 | 500 | 0.6-1.6 | 330 | Y132M2-6 | 5.5 | Y90L-6 | 1.1 | 1100*1100*1269 | 1300 |
| XJK- 2.8 | 2.8 | 600 | 1.5-3.5 | 280 | Y160L-6 | 11.0 | Y100L-6 | 1.5 | 1750*1600*1450 | 2325 |
| XJK- 5.8 | 5.8 | 750 | 3.0-7.0 | 240 | Y200L-6 | 22 | Y100L-6 | 1.5 | 2200*2200*1200 | 3533 |
Before sales:Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection: Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install,debug and train the workers.
We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Shandong (Zhaoxin) Mining Machine Group Company is ISO9001-2008 certificated. With 30 years manufacturing experience and scientific management and strong financial strength ,the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area .Zhaoxin machinery has exported to 20 and more countries.The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment , there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover , the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
