Good quality jaw stone crusher
Introduction of jaw crusher
This type of jaw crusher has a long history and belongs to traditional crusher equipment. Its motor drives the eccentric shaft to rotate via V-belt pulley, and movable jaw to carry out periodical complex pendular movement to generate crush capacity. There are two types: coarse crusher and fine crusher.
With the features like simple structure, low price, reliable operation, and convenient adjustment of discharging opening, it is very suitable for crushing the damp ore and the ore with a large content of clay, with relatively coarse crushing grain size. We have made the following optimized design for the models such as PE400-600, PE250-750, PE600-900, which has been recognized after practical application.
Deep chamber design, high reduction ratio, high crushing efficiency and fine crushing grain size.
Improved rotary speed of eccentric shaft and high productive capacity.
Technical parameter of jaw crusher
| Model | Inlet size(mm) | Max feed size(mm) | Capacity(t/h) | Discharge size(mm) | Motor | Overall dimension | Weight(exclude motor) | ||
| Model | Power | ||||||||
| Length | Width | KW | mm | kg | |||||
| PE150×250 | 250 | 150 | 125 | 1~3 | 10~40 | Y132S-4 | 5.5 | 875×745×935 | 1160 |
| PE250×400 | 400 | 250 | 200 | 5~20 | 20~80 | Y180L-6 | 15 | 1410×1310×1386 | 2572 |
| PEX150×750 | 750 | 150 | 120 | 8~35 | 10~40 | Y160L-4 | 15 | 1280×1610×1081 | 3350 |
| PEX200×1000 | 1000 | 200 | 160 | 12~50 | 10~40 | Y200L-6 | 22 | 1530×1810×1250 | 4930 |
| PE400×600 | 600 | 400 | 350 | 14~36 | 40~100 | Y250M-6 | 30 | 1700×1732×1658 | 5800 |
| PEX250×750 | 750 | 250 | 210 | 15~45 | 15~50 | Y225M-6 | 30 | 1695×1920×1648 | 5000 |
| PEX250×1000 | 1000 | 250 | 210 | 15~50 | 20~50 | Y250M-6 | 30 | 1550×1990×1370 | 6800 |
| PEX250×1200 | 1200 | 250 | 210 | 20~70 | 20~60 | Y280S-6 | 45 | 1670×2190×1430 | 9000 |
| PEX300×1300 | 1300 | 300 | 250 | 20~90 | 20~80 | Y280M-6 | 55 | 1780×2400×1720 | 11000 |
| PE500×750 | 750 | 500 | 400 | 30~80 | 50~120 | Y280M-6 | 55 | 1900×1876×1821 | 9000 |
| PE600×900 | 900 | 600 | 480 | 56~192 | 75~200 | Y315S-6 | 75 | 2280×2245×2320 | 18900 |
| PE750×1060 | 1060 | 750 | 630 | 110~242 | 80~140 | Y315M-8 | 90 | 2531×2370×2783 | 29600 |
| PE900×1200 | 1200 | 900 | 650 | 180~350 | 100~250 | JR126-6 | 110 | 5000×4471×3280 | 55000 |

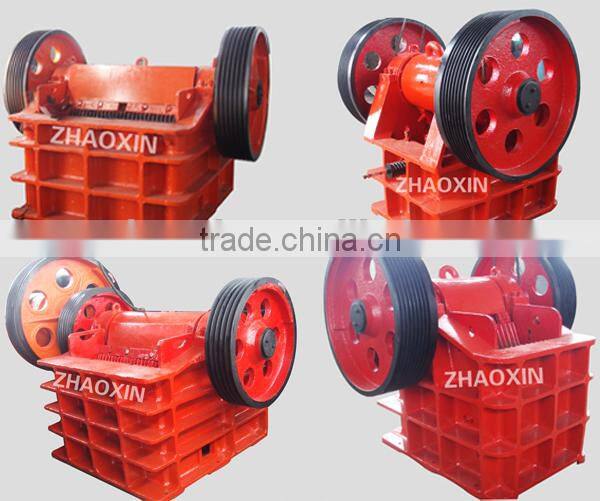

jaw stone crusher

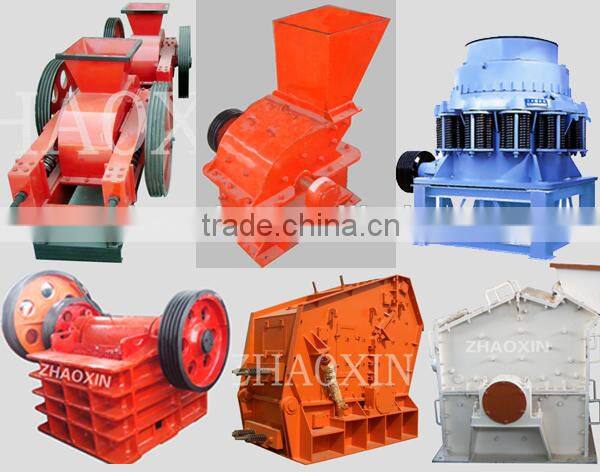

All kinds of crushers
Safe shipment of jaw stone crusher
Before sales:Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.
We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Our workshop
Welcome to visit our factory!
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. We will advise the detailed delivery time upon received your specific inquiry.
Q: How to get an accurate quotation?
A: Please kindly advise the following information to facilitate us to quote accordingly:
a. stone type&size; b. the capacity(tons/hour); c. input size; d. output size, or more of your requirement.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our product, please feel free to contact us.
