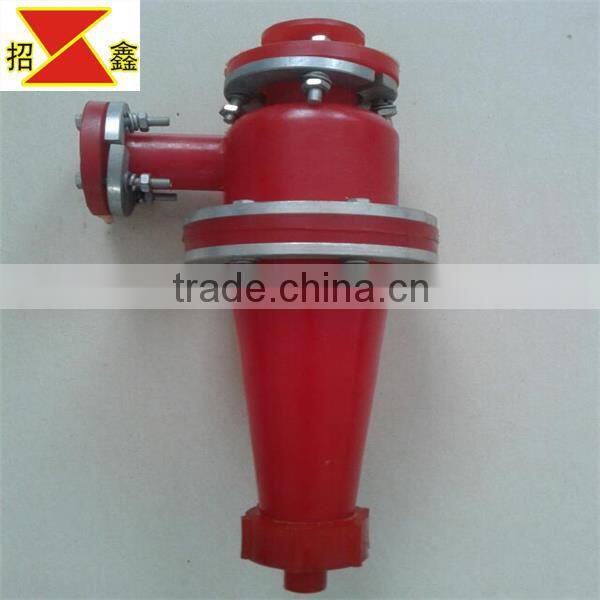

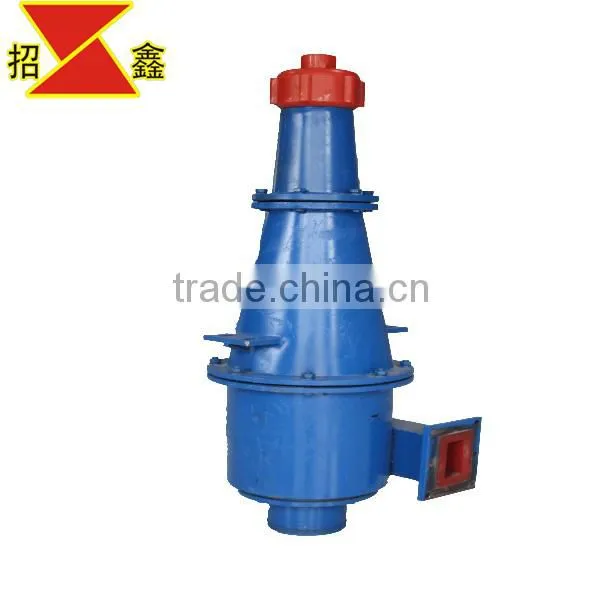

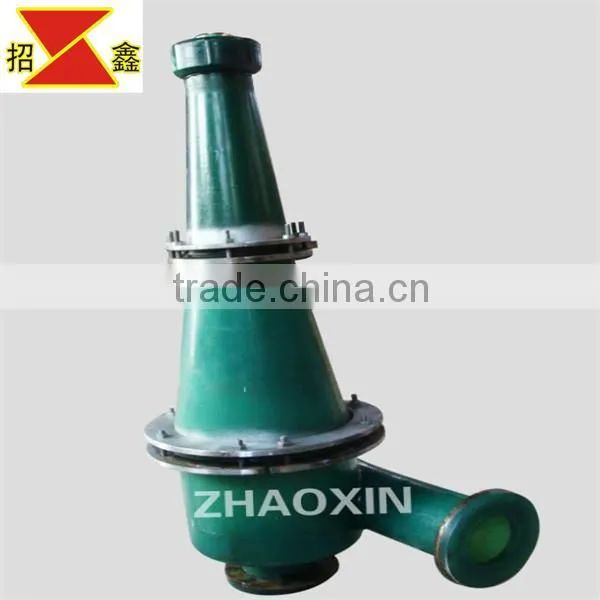

FX Hydrocyclone
Brief introduction of hydrocyclone
Hydro cyclone is a kind of equipment for classifying the ore pulp by use of centrifugal force. It has no motion and dynamic parts, but it requires matching with corresponding slurry pump. It is mainly used in ore dressing industry for classifying, sorting, thickening and desliming.
Hydro cyclone has the features like low equipment cost, easy mounting and dismantling, convenient maintenance, small floor space required, low capital expenditure, large processing capacity of unit volume, fine classifying grain size, high classifying efficiency, small quantity and short time of staying of the ore pulp in the cyclone, and easy operation of shutdown.
Used for classifying the ore pulp in the grinding loop, a combined unit is usually selected by connecting several units of cyclone in parallel. Its classifying fineness and processing capacity are greatly affected by the diameter of upper cylinder, pressure at the inlet of ore pulp, and the concentration of ore pulp. Therefore, it has a large fluctuation of process.
Polyurethane is also called polycarbamate (PU), it is formed by the interaction of organic isocyanate and polyatomic alcohol compound.

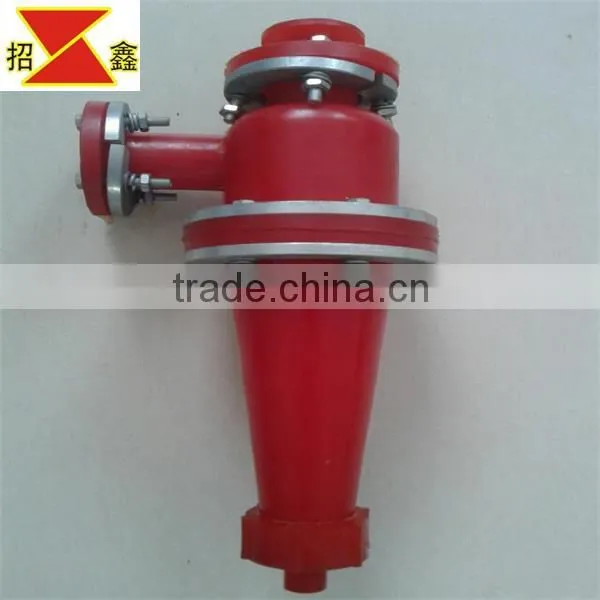

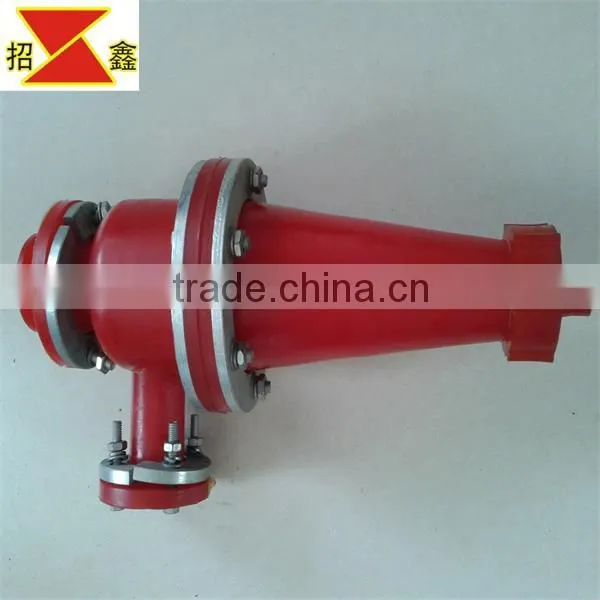

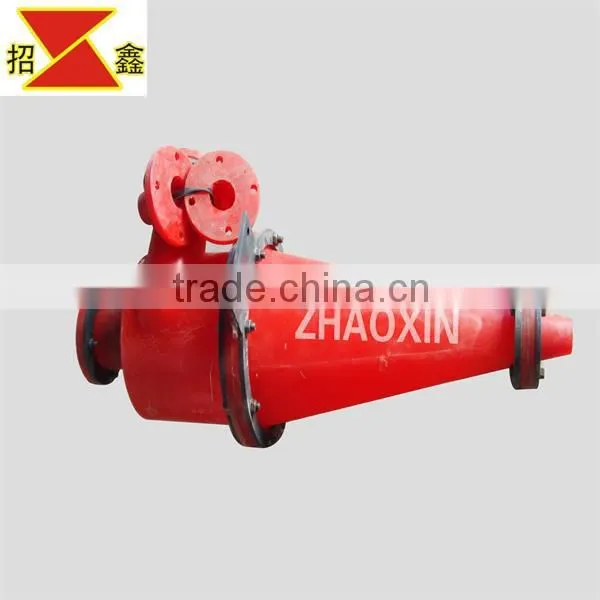

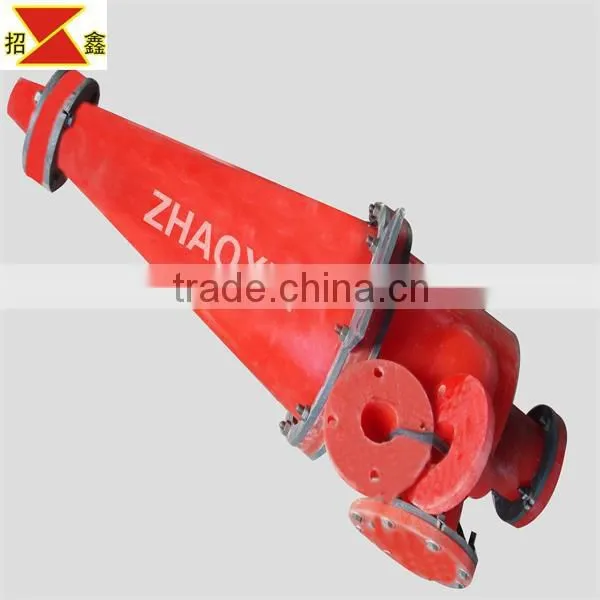

Our company’s production of polyurethane hydrocyclone is pouring by the polyurethane elastomeric material, it has the advantages of high corrosion resistance, high strength, high elastic, light weight, ageing resistance, easy maintenance and so on.
Recently years, the polyurethane hydrocyclone is widely used in petroleum exploitation, non-ferrous, black and non-metallic classification work and many other departments. It can take off the mud and water from the slurry material. It is one of the important equipments of taking off sand or mud device in the oil field, classification work and tailing damming, dealing with and recovery the coal slurry in the coal field.
Technical parameter of hydrocyclone
Model |
Diameter |
Max |
Feeding Pressure |
Productive |
Classification |
Dimension |
Weight |
||
FX75 |
75 |
0.6 |
0.06-0.4 |
2--5 |
5-40 |
240 |
230 |
800 |
4.5 |
FX100 |
100 |
1 |
0.06-0.35 |
5--12 |
20--100 |
268 |
215 |
1000 |
5.5 |
FX125 |
125 |
1 |
0.06-0.35 |
8--15 |
20-100 |
210 |
185 |
620 |
10 |
FX150 |
150 |
1.5 |
0.06-0.35 |
11--20 |
30-74 |
280 |
295 |
690 |
20 |
FX200 |
200 |
2 |
0.06-0.35 |
25-40 |
40--100 |
435 |
360 |
1050 |
60 |
FX250 |
250 |
3 |
0.06-0.35 |
40--60 |
40--100 |
540 |
480 |
1180 |
72 |
FX300 |
300 |
5 |
0.04-0.3 |
45-85 |
50-150 |
665 |
585 |
1310 |
108 |
FX350 |
350 |
6 |
0.04-0.3 |
60--100 |
50-150 |
775 |
605 |
1765 |
182 |
FX500 |
500 |
10 |
0.03-0.3 |
140--220 |
74-200 |
850 |
790 |
2050 |
495 |
FX660 |
660 |
16 |
0.03-0.2 |
250-350 |
74-220 |
1250 |
890 |
2650 |
995 |
Notes for Selection
-We can carry out non-standard design and production as required by the customer.
-If there is no special requirement, the material of hydro cyclone is gray casting.
-Other materials are available for the customer’s selection, such as polyurethane, steel casing lined with polyurethane, wear resistant rubber, KM compound material, silicon carbide, alumina ceramics, and high chrome alloy, etc. Please specify the material while placing your order.
Delivery site of the crusher machine
If you don't know which model to choose, pls tell me more infromations as belows:
1.what is your material ?
2.what is the size of your raw material?
3.what is the capacity per hour you want to crush?
4. what is the size of the output you need?
Certificates & Honor
Shandong (Zhaoxin) Mining Machine Group Company is ISO9001:2008 certificated. With 30 years manufacturing experience and scientific management and strong financial strength ,the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area .Zhaoxin machinery has exported to 20 and more countries .The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If you have any problems, please feel free to contact us. We would do our best to solve them as soon as possible. Welcome to negotiate the price, you can gain the maximum efficiency with the minimum investment.
