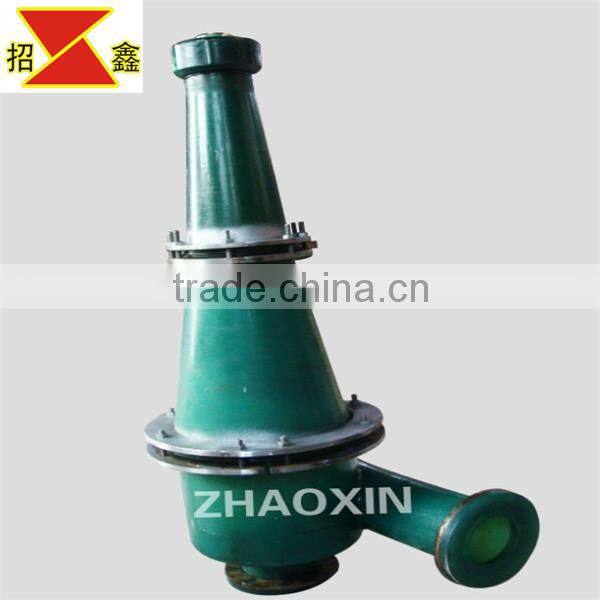

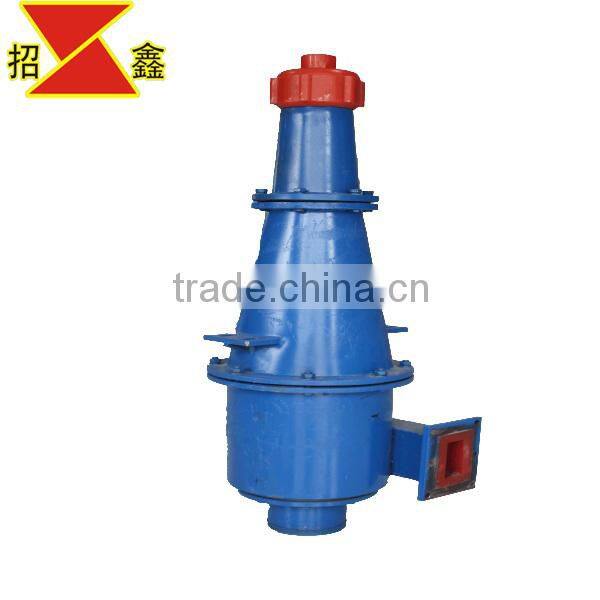

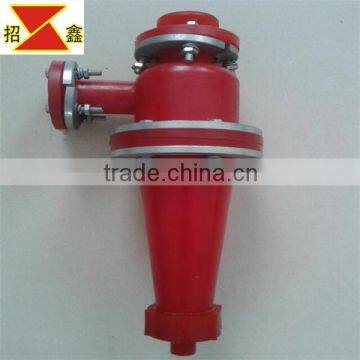

FX Hydrocyclone
Features:
Hydrocyclone is a kind of equipment for calssifying the ore pulp by use of centrifugal force. It has no motion and dynamic partsm but it requires matching with corresponding slurry pump.It is mainly used in ore dressing industry for classifying, sorting, thickening and desliming.
Hydrocyclone has the features like low equipment cost, easy mounting and dismantling, convenient maintenance, small floor space required, low capital expenditure, large processing capacity of unit volume, fine classifying grain size, high classifying efficiency, small quantity and short time of staying of the ore pulp in the cyclone, and easy operation of shutdown.
Used for classifying the ore pulp in the grinding loop, a combined unit is usually selected by connecting several units of cyclone in parallel. Its classifying fineness and processing capacity are greatly affected by the diameter of upper cylinder, pressure at the inlet of ore pulp, and the concentration of ore pulp. Therefore, it has a large fluctuation of process.
Notes for selection
1.We can carry out non-standard design and production as required by the customer.
2.If there is no special rquirement, the material of hydrocyclone is gray casting.
3.Other materials are available for the customer's selection, such as polyurethane, steel casing lined with polyurethane, wear resistant rubber, KM compound material, silicon carbide, alumina ceramics, and high chrome alloy, etc. Please specigy the material while placing your order.
Technical parameter of hydrocyclone
Model |
Diameter |
Max |
Feeding Pressure |
Productive |
Classification |
Dimension |
Weight |
||
FX75 |
75 |
0.6 |
0.06-0.4 |
2--5 |
5-40 |
240 |
230 |
800 |
4.5 |
FX100 |
100 |
1 |
0.06-0.35 |
5--12 |
20--100 |
268 |
215 |
1000 |
5.5 |
FX125 |
125 |
1 |
0.06-0.35 |
8--15 |
20-100 |
210 |
185 |
620 |
10 |
FX150 |
150 |
1.5 |
0.06-0.35 |
11--20 |
30-74 |
280 |
295 |
690 |
20 |
FX200 |
200 |
2 |
0.06-0.35 |
25-40 |
40--100 |
435 |
360 |
1050 |
60 |
FX250 |
250 |
3 |
0.06-0.35 |
40--60 |
40--100 |
540 |
480 |
1180 |
72 |
FX300 |
300 |
5 |
0.04-0.3 |
45-85 |
50-150 |
665 |
585 |
1310 |
108 |
FX350 |
350 |
6 |
0.04-0.3 |
60--100 |
50-150 |
775 |
605 |
1765 |
182 |
FX500 |
500 |
10 |
0.03-0.3 |
140--220 |
74-200 |
850 |
790 |
2050 |
495 |
FX660 |
660 |
16 |
0.03-0.2 |
250-350 |
74-220 |
1250 |
890 |
2650 |
995 |
Notes for Selection
-We can carry out non-standard design and production as required by the customer.
-If there is no special requirement, the material of hydro cyclone is gray casting.
-Other materials are available for the customer’s selection, such as polyurethane, steel casing lined with polyurethane, wear resistant rubber, KM compound material, silicon carbide, alumina ceramics, and high chrome alloy, etc. Please specify the material while placing your order.
Certificates and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If you have any problems, please feel free to contact us. We would do our best to solve them as soon as possible. Welcome to negotiate the price, you can gain the maximum efficiency with the minimum investment.
