High Efficiency Mining Stirring Trough Machine Elevated Agitating Tank
Features of elevated agitating tank
1. This agitating tank for ore beneficiation is designed for solving the problem of insufficient elevation difference of gravity flow of ore pulp in the equipment configuration under the condition of setting up the plant at the level ground, and with less supplement.
2. This agitating tank for ore beneficiation can promote the height of ore pulp by more than 1m.
3. The water slurry ore pulp at the lower part enters into the agitating tank under pumping action of centrifugal impeller, so as to achieve the elevation.
Technical parameter of elevated agitating tank
| Model | Effective volume(m³) | Rotating speed | Diameter of impeller(mm) | Motor model | Motor power(kw) | Weight(kg) |
| XBT-750X1000 | 0.42 | 572 | 300 | Y100L2-4 | 3 | 681 |
| XBT-1500X1800 | 2.8 | 480 | 450 | Y160L-6 | 11 | 1022 |
| XBT-2000X2500 | 6 | 362 | 550 | Y280S-6 | 15 | 2400 |
| XBT-2500X3000 | 12 | 305 | 650 | Y225M-8 | 22 | 4700 |

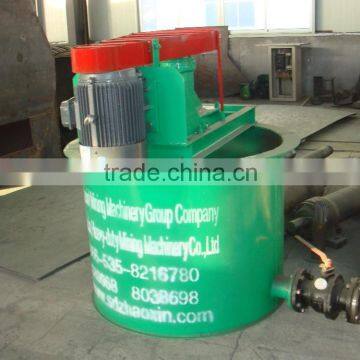

Parts of elevated agitating tank

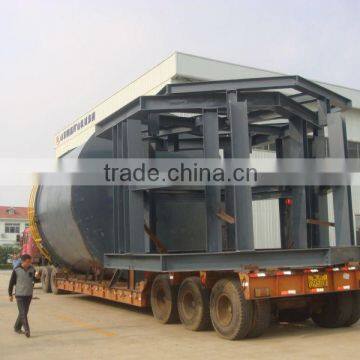

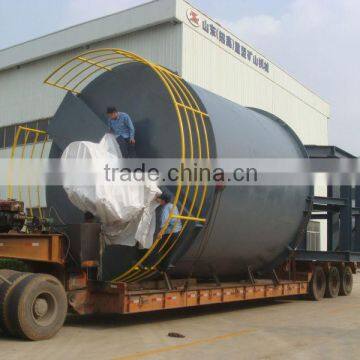

Safe shipment of elevated agitating tank
Before sales: Guide customer to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.
We will provide one-year warranty to make sure your machine work well. We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Our workshop
Welcome to visit our factory!!
Q: About payment A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. Depends on detailed product. We will advise the detailed delivery time upon received your specific inquiry.
Q: How to get an accurate quotation?
A: Please kindly advise the following information to facilitate us to quote accordingly:
a. stone type; b. the capacity(tons/hour); c. input size; d. output size, or more of your requirement.
Q: About instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our products, please feel free to contact us.
