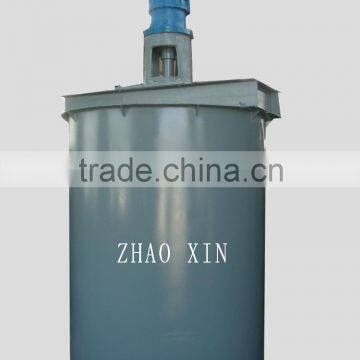

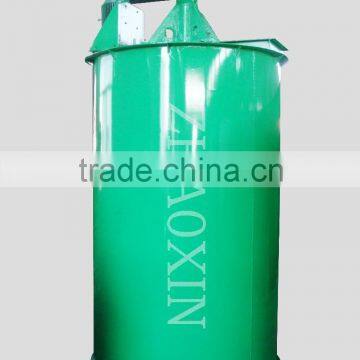

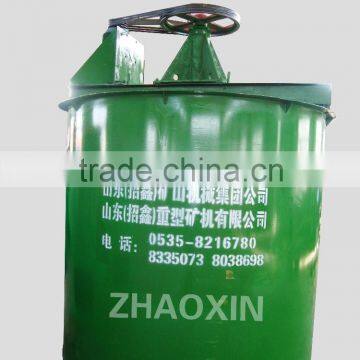

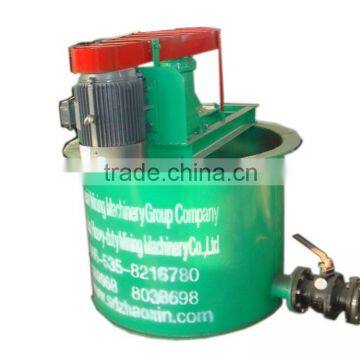

High Efficient RJ Single Impeller Mixing Tank with Agitator
Features of Mixing Tank Agitator
Located at the bottom opening of the cycling cylinder, its impeller feeds the ore pulp and chemical reagent into the cylinder with a suction orifice for agitating. After testing, the new designed impeller is different from the original agitating tank, with high agitating efficiency.
Technical parameter of Mixing Tank Agitator
Standard Model | Internal Size of trough | Effective Volume m3 | Stirrer | Motor | Dimension | Weight | ||||
Diameter | Height | Dia- | Speed | Model | Power | Height(mm | Length | (kg) | ||
(mm) | mm | meter | (r/min) | (KW) | mm |
| ||||
|
| (mm) |
|
|
|
| ||||
RJ05 | 500 | 500 | 0.078 | 150 | 690 | Y802-4 | 0.75 | 874 | 720 | 110 |
RJ07 | 750 | 750 | 0.26 | 240 | 530 | Y90L-4 | 1.5 | 1241 | 939 | 228 |
RJ10 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 1665 | 1300 | 350 |
RJ12 | 1200 | 1200 | 1.14 | 400 | 320 | Y132S-6 | 3 | 1858 | 1540 | 765 |
RJ15 | 1500 | 1500 | 2.2 | 400 | 320 | Y132S-6 | 3 | 2386 | 1690 | 1360 |
RJ20 | 2000 | 2000 | 5.5 | 550 | 230 | Y132M2-6 | 5.5 | 3046 | 2381 | 1655 |
RJ25 | 2500 | 2500 | 11 | 625 | 230 | Y160M-6 | 7.5 | 3546 | 2881 | 2766 |
RJ30 | 3000 | 3000 | 19.1 | 900 | 210 | Y225S-8 | 18.5 | 4325 | 3266 | 4296 |
Parts of Mixing Tank Agitator
Safe shipment of agitator mixer
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. Depends on detailed product. We will advise the detailed delivery time upon received your specific inquiry.
Q: About instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our product, please feel free to contact us.
