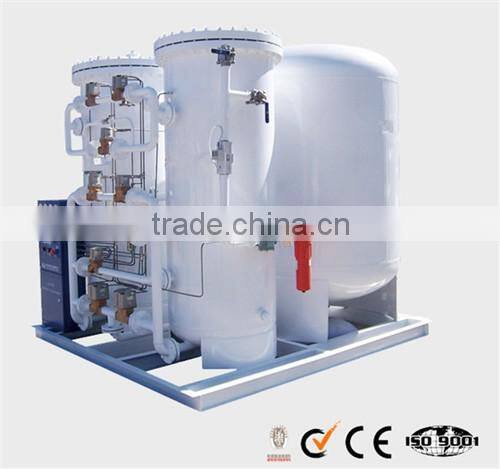

Patented energy saving oxygen plant  PSA oxygen generator with best price

Sunny  oxygen plant  PSA oxygen generator, an on site oxygen generation system, is especially designed for hospital oxygen supply. The system will end your expensive reliance on traditional bulk liquid oxygen or cylinders oxygen without compromise on safety and reliability.

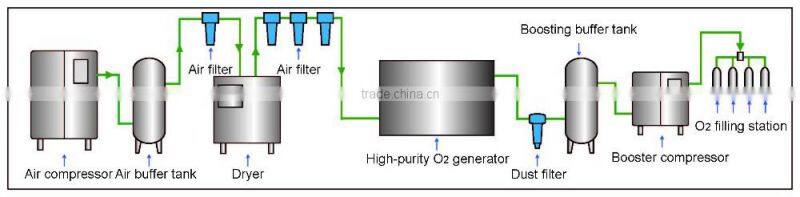

 Sunny hospital oxygen system consist of air compressor, dryer, air filters, PSA oxygen generator, oxygen monitoring system and oxygen back up system.

Condition: New
Place of Origin: Beijing China (Mainland)
Brand Name: Sunny Young
Model Number: SYOG-25
Oxygen  Production Rate: 25 Nm3/h
Voltage: 220V or as customerized

Power (W): 0.1KW
Certification: ISO9001
Warranty: 18months
After-sales Service Provided: Overseas service center available
Type: Skid-mounted
Dew point: -45ºC - -60ºC
Purity: 93~95%

The principles of pressure swing adsorption (PSA) High purity  oxygen plant  PSA oxygen generator are adsorption and diffusion. Each gas has a characteristic adsorption rate that when adsorbed by Zeolite Molecular Sieve (ZMS). ZMS has large surface area containing volume of micro pores and passageways. Nitrogen has a higher adsorption rate than oxygen. When compressed air enters ZMS, oxygen molecules are able to pass through this large surface. And nitrogen molecules are adsorbed to the surface area. As the ZMS is saturated with nitrogen, it should be depressurized to regenerate for next cycle. We use two towers filled with ZMS to produce a continuous stream of nitrogen. During depressurization, the oxygen of lower purity than required is transferred to another tower, which is called pressure equalization. Pressure equalization donates to higher efficiency and less energy consumption.

 oxygen plant  PSA oxygen generator

SUNNY YOUNG Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, SUNNY YOUNG sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions. We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. SUNNY YOUNG is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us. SUNNY YOUNG is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service.

COMPANY BUSINESS:

PSA On-site N2 generators

General purpose nitrogen generators

High purity nitrogen generators

Membrane N2generators

Nitrogen Purification Equipment

 oxygen plant  PSA oxygen generator

Industrial oxygen generators

Medical oxygen generators

Membrane O2 generators

Spare parts&Cosumables of N2/ O2 generators

Equipment selection and matching, technician training, installation and commissioning.

Regarding  oxygen plant  PSA oxygen generator , pls feel free to contact with me

Skype:yelling2016

Thank you

FAQ:

1. Are you manufacturer or Trade Company?

We are OEM professional High efficient Skid mounted oxygen plant cost factory, founded in 1997.

2. What's the order High efficient Skid mounted oxygen plant cost process?

a. Inquiry---provide us all clear requirements.

b. Quotation---official quotation form with all clear specifications.

c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.

d. Contract confirmation---provide correct contract details.

e. Payment terms--- T/T 30% in advanced, balanced before shipment.

f. Production---mass production

g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.

h. Installation and commissioning

3.What terms of payment you use?

T/T, L/C  etc.

4. How to get a prompt quotation?

When you send the inquiry to us, pls kindly send it with below technical  information.

 1) O2 flow rate:    _____Nm3/hr

 2) O2  purity:                 _____%

 3) O2 discharge pressure:    _____Bar

 4) Voltages and Frequency :   ______V/PH/HZ

 5) Application:
