o2 cylinder filling system
- 20 Set / Sets per Month
- tianjin
- T/T Credit Card PayPal
- oxygen cylinder filling plants
- medical oxygen generator portable for clinic and ambulance 80LPM
- industrial oxygen generator for mining
- energy-saving chemical oxygen generator made in china
- PSA On-site Oxygen Plant/ PSA Oxygen Generator For Glass
- PSA On-site Oxygen Plant/ PSA Oxygen Generator For Pulp and Paper
Product Details
Condition: | New | Place of Origin: | Beijing, China | Brand Name: | SUNNY YOUNG |
Model Number: | SYCFS-20 | Usage: | Oxygen | Production Rate: | 100% |
Voltage: | 220V | Power(W): | 0.1KW | Weight: | 1000KG |
Dimension(L*W*H): | 1950*1850*2100MM | Certification: | ISO | Warranty: | 18 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case
Product Description

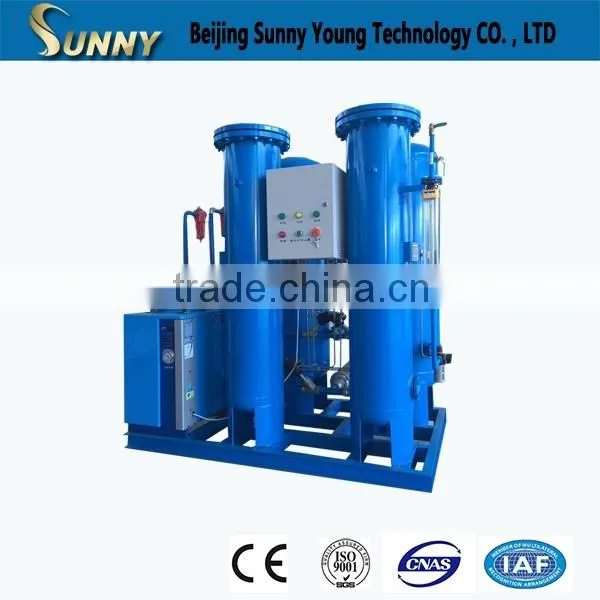

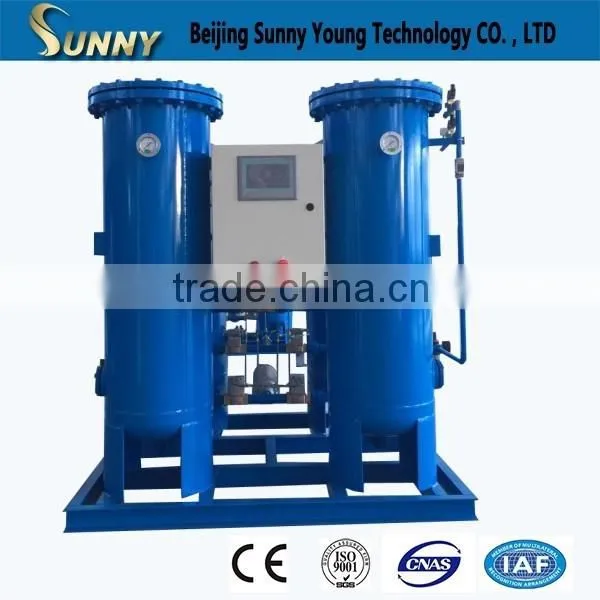

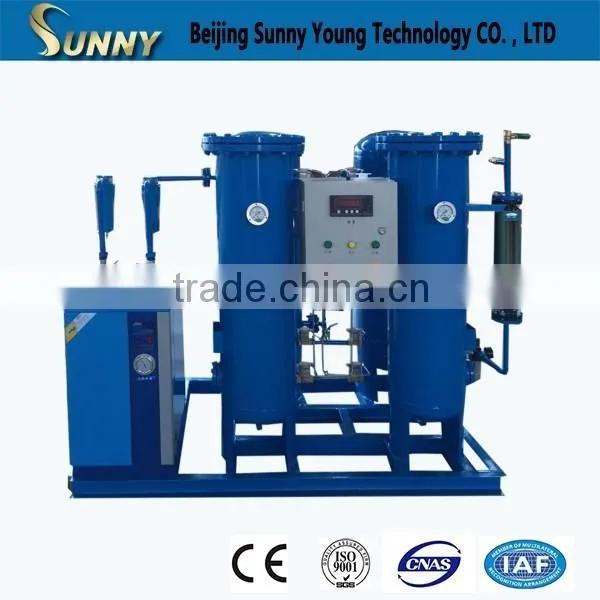

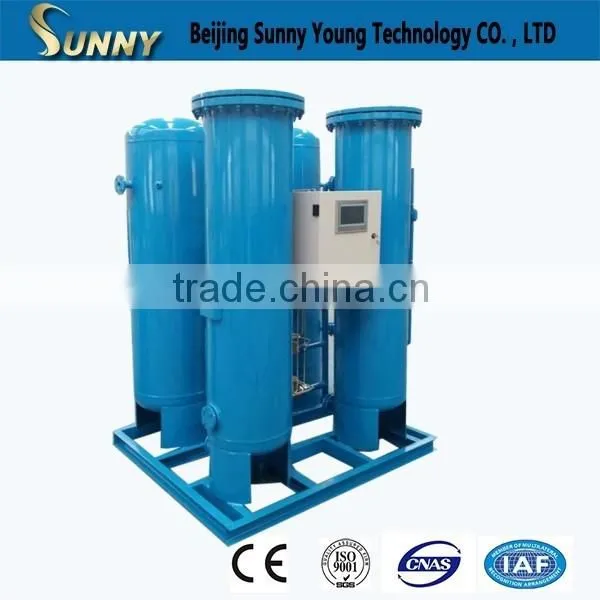

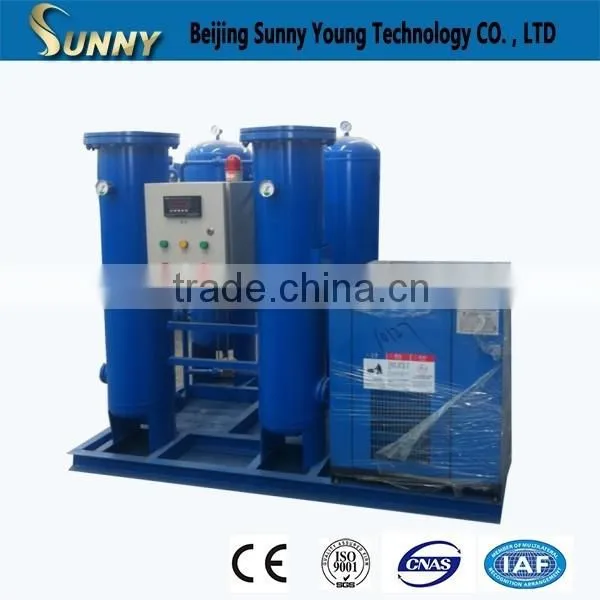

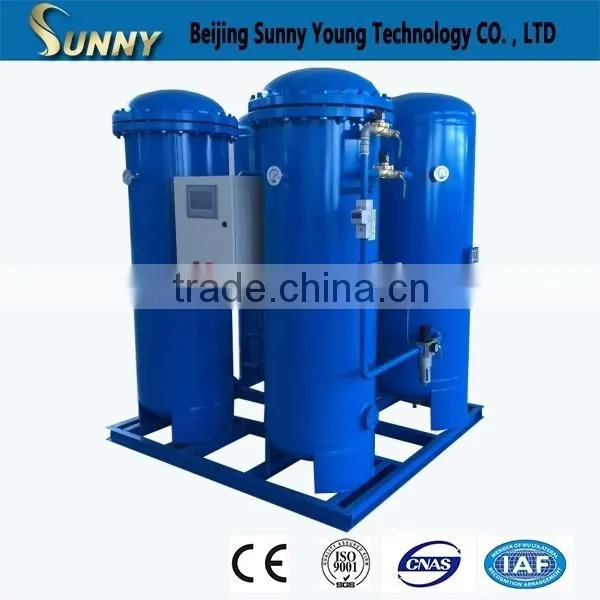

o2 cylinder filling system

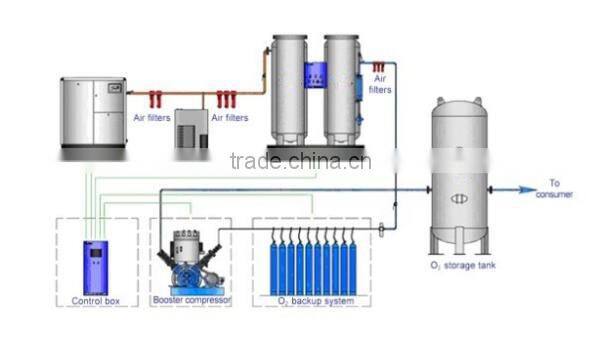

Newly developed compact oxygen generation and filling plant provides one-stop service for your oxygen needs. Once the compressed air with filtration system is available, the plant is ready for oxygen production and oxygen bottle filling.

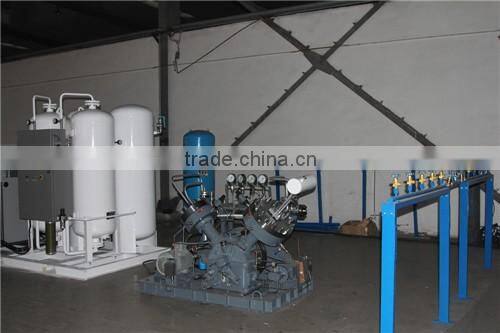

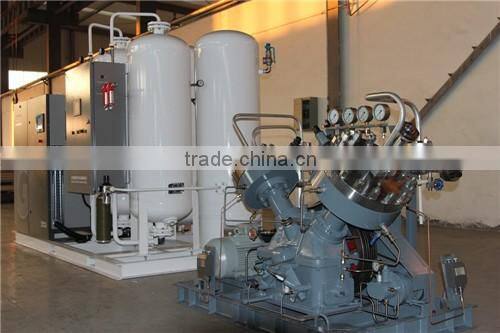

Oxygen filling station in one skid with the PSA oxygen generator and oxygen compressor, no need separated room for the oxygen filling station - easy installation with convenience operation. However, if the separated room for oxygen filling station would be needed by local regulations, the filling station could be easily removed from the skid and put in the room.
Time-proven Sunny Young PSA technology makes the plant more economic, more convenient and more reliable. All parts are from famous brands with reliable performance. Unique design makes the plant cost-saving - high production rate with minimum power consumption.
The o2 cylinder filling system is one of the best solutions for the small gas businesses; it is affordable and offers a new profit center for your O2 business.
Name
| Purity
| Warranty | Power consumption | Maintenance cost | Installation | Sipping Cost |
Sunny Young o2 cylinder filling system | 95% | 24months | Lower ( because of enough ZMS, we can choose the smaller air compressor, the purchase cost and power consumption will be lower than same manufacturers) | Low (we supply all spare parts without any profit ) | All components can be skid-mounted, it can save much time and cost of installation. | If the payment term is CIF, we will use the logistics company which is recommended and approved by Alibaba Group, they have the lowest price and best service, We never do not make money on the freight. |
Other o2 cylinder filling system | 93+/-3% | 12months | High ( In order to save the production cost, they will cut down the quantity of ZMS, then choosing the larger air compressor) | It will be about 2.5times of cost | Connection one by one |
|
- High Reliability: Proven PSA technology, simple engineering design, few moving parts and international standardized manufacturing techniques ensure minimal maintenance and maximum reliability.
- Low Cost: Patented REFLUX high-efficiency control system reduces air consumption, saves electric power.
- Convenience: Unattended operation controlled by PLC automatically. Optional touch-screen control, display and alarm system makes the generator to be operated by one touch. It displays working parameters, reminds filter elements replacing and instructs trouble shooting. It enables remote control.
- Easy Installation: Skid mounted for easy installation and move.
- Longer Service-life: Exclusive bed containment system extends Zeolite Molecular Sieve (ZMS) bed life to more than ten years.
- Minimal Maintenance: The generator has highly-reliable valves and no other moving parts. Filter elements are easily replaced.
The principles of pressure swing adsorption (PSA) o2 cylinder filling system are adsorption and diffusion. Each gas has a characteristic adsorption rate that when adsorbed by Zeolite Molecular Sieve (ZMS). ZMS has large surface area containing volume of micro pores and passageways. Nitrogen has a higher adsorption rate than oxygen. When compressed air enters ZMS, oxygen molecules are able to pass through this large surface. And nitrogen molecules are adsorbed to the surface area. As the ZMS is saturated with nitrogen, it should be depressurized to regenerate for next cycle. We use two towers filled with ZMS to produce a continuous stream of nitrogen. During depressurization, the oxygen of lower purity than required is transferred to another tower, which is called pressure equalization. Pressure equalization donates to higher efficiency and less energy consumption.
SUNNY YOUNG Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, SUNNY YOUNG sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions. We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. SUNNY YOUNG is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us. SUNNY YOUNG is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service.
COMPANY BUSINESS:
PSA On-site N2generators
General purpose nitrogen generators
High purity nitrogen generators
Membrane N2generators
Nitrogen Purification Equipment
PSA O2 generators
Industrial oxygen generators
Medical oxygen generators
o2 cylinder filling system
Membrane O2 generators
Spare parts&Cosumables of N2/ O2 generators
Equipment selection and matching, technician training, installation and commissioning.
o2 cylinder filling system capacity chart
Model | O2 flow | Filling pressure | O2 purity | Capacity | |
SYCFS-3 | 3 | 100~300 | 90~95 | 12 | |
SYCFS-5 | 5 | 20 | |||
SYCFS-10 | 10 | 40 | |||
SYCFS-15 | 15 | 60 | |||
SYCFS-20 | 20 | 80 | |||
SYCFS-25 | 25 | 100 | |||
SYCFS-50 | 50 | 200 | |||
SYCFS-80 | 80 | 320 | |||
O2 cylinder volume is 40L. | |||||
If you need more details about o2 cylinder filling system, pls feel free to contacy with me , i will response in the shortest time.
Thank you.
FAQ:
1. Are you manufacturer or Trade Company?
We are OEM professional High efficient Skid mounted o2 cylinder filling system
2. What's the order High efficient Skid mounted oxygen plant cost process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6): How many pcs cylinders do you want to fill per day.
Package and delivery for o2 cylinder filling system
Company Profile
SUNNY YOUNG Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, SUNNY YOUNG sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. Sunny Young is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us.
SUNNY YOUNG is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service.
