Specifications
-- no noise-- safety
-- Efficient and clean
-- Long serve life (15-20 years)
-- CE
Working Condition:
The diameter of wind wheel: 2.5m
Blades number: 5
Blades length: 1650mm
Rated rotate speed: 50(r/min)
Rated wind speed: 10 m/s
Start up wind speed: 2.5m/s
Working wind speed: 3-25(m/s)
Security wind speed: 40m/s
Rated power: 2KW
The max power: 2.5KW
Output voltage(DC): 48V/96V
The height of tower: 8m
The top part weight: 252kg
Guy cable tower type(mm): 114*6
Output control system: charger control, inverter
Battery reference: 12v150ah 4pcs/12V100ah 8pcs
Summary:
The vertical axle start up by breeze,the advanced "C"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power:
Refrigerator, washing machine, water pump (350), rice cooker, color TV, lighting, electric fan, charger etc.

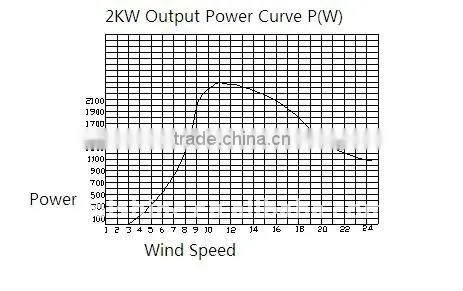

Power diagram:

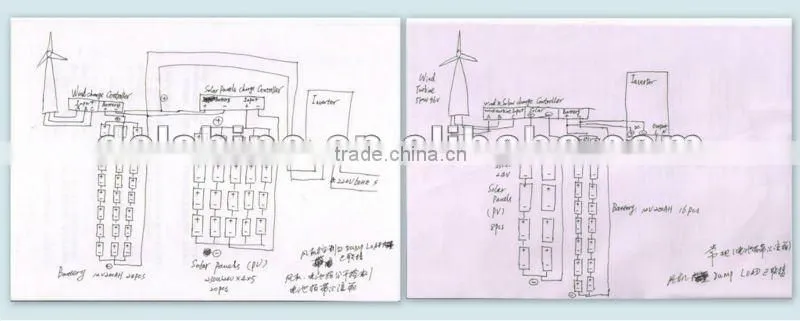

Solar and wind system:
Connecting with the net:
Certificate:

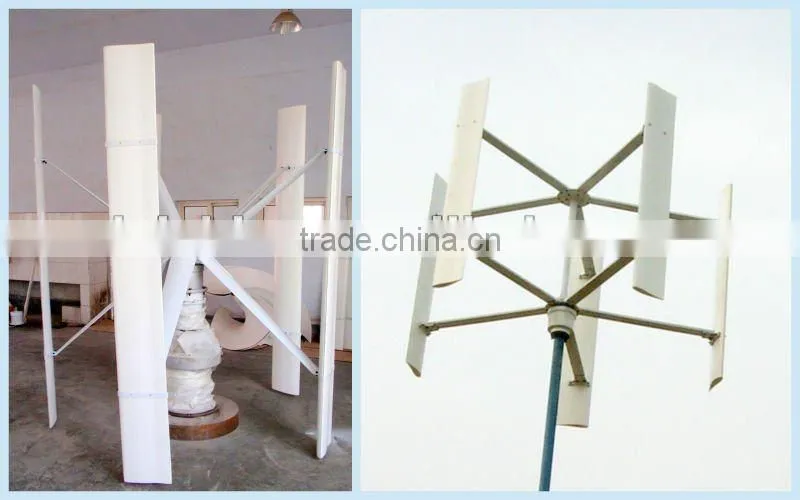

Wind turbine:
