Specifications
1) Low noise and safety2) Efficient and clean
3) Long serve life (15-20 years)
4) CE certificate
Parameter:
Rated power | 1kw | Class of insulation | B |
Max power | 1.2kw | Material of enclosure | 20# seamless tube |
Blades diameter | 3.2m | Material of magnet steel | neodymium-iron-boron 38sh |
Max start torsional moment n/m | 0.4 | Material of stator | QZY-2/180/470 |
Rated revolution (r/min) | 360 | Corrosion prevention | Zinc coated,painting |
Rated wind speed | 8(m/s) | Blades shape | 3 FRP blades |
Star wind speed | 2.5(m/s) | Over speed protection | Yaw automatically ,electromagnetism protection |
Working wind speed | 3-25(m/s) | Suggest batteries | 4pcs 12v150ah |
Security wind speed | 50(m/s) | Service life | > 15 years |
Ideal wind speed | 4-12(m/s) | Support loads | Small refrigerator,washing machine,water pump(550),electric cooker,color TV,lighting,electric fan,charging,warming,computor,electric tools below 600w. |
Output voltage(DC) | 48v | ||
Output frequency | / | ||
Height of tower(m) | 6 | ||
Top weight (kg) | 60 | ||
Output Control system | Wind solar hybrid controller,inverter | ||
Mated solar panel | 48v200w-400w |
|
|
Summary:
The vertical axle start up by breeze,the advanced "H"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.

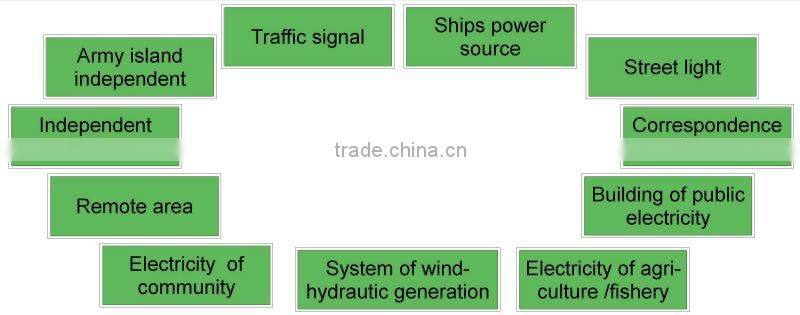

Application:
Small refrigerator, washing machine, water pump (350), rice cooker, color TV, lighting, electric fan, charger etc.
Power diagram:

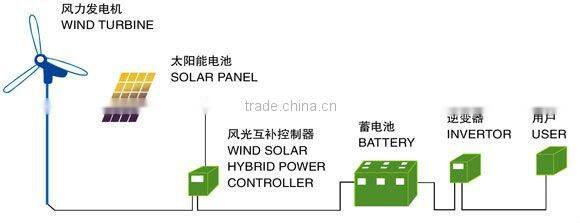

Solar and wind system:
Connecting with the net:
Certificate:
Wind turbine:
