Specifications
-- no noise-- safety
-- Efficient and clean
-- Long serve life (15-20 years)
-- CE

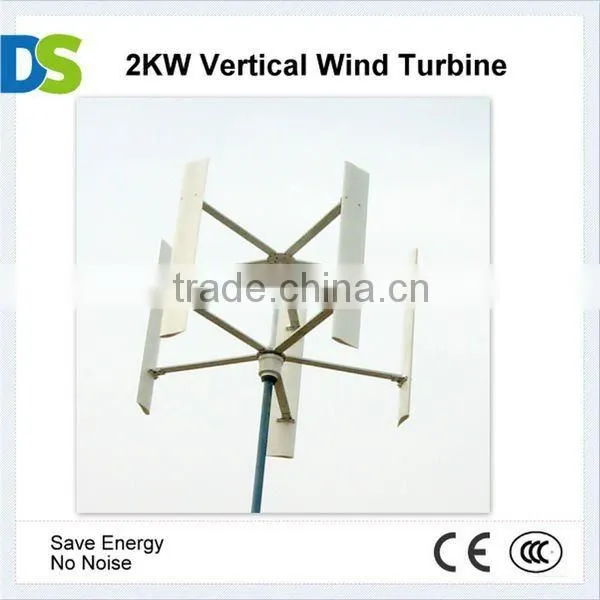

Name:C 2KW Vertical Wind Turbine
Working Condition:
The diameter of wind wheel: 2.5m
Blades number: 5
Blades length: 1650mm
Rated rotate speed: 50(r/min)
Rated wind speed: 10 m/s
Start up wind speed: 2.5m/s
Working wind speed: 3-25(m/s)
Security wind speed: 40m/s
Rated power: 2KW
The max power: 2.5KW
Output voltage(DC): 48V/96V
The height of tower: 8m
The top part weight: 252kg
Guy cable tower type(mm): 114*6
Output control system: charger control, inverter
Battery reference: 12v150ah 4pcs/12V100ah 8pcs
Summary
The vertical axle start up by breeze,the advanced "v"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power
Refrigerator, washing machine, water pump (350), rice cooker, color TV, lighting, electric fan, charger etc.
Power diagram
