Specifications
1) Low noise and safety2) Efficient and clean
3) Long serve life (15-20 years)
4) CE certificate
Parameter:
Rated power |
2kw |
Class of insulation |
B |
Max power |
2.5kw |
Material of enclosure |
20# seamless tube |
Blades diameter |
3.8m |
Material of magnet steel |
neodymium-iron-boron 38sh |
Max start torsional moment n/m |
0.8 |
Material of stator |
QZY-2/180/470 |
Rated revolution (r/min) |
320 |
Corrosion prevention |
Zinc coated,painting |
Rated wind speed |
8(m/s) |
Blades shape |
3 FRP blades |
Star wind speed |
2.5(m/s) |
Over speed protection |
Yaw automatically ,electromagnetism protection |
Working wind speed |
3-25(m/s) |
Suggest batteries |
6pcs 12v200ah |
Security wind speed |
50(m/s) |
Service life |
> 15 years |
Ideal wind speed |
4-14(m/s) |
Support loads |
refrigerator,washing machine,water pump,electric cooker,color TV,lighting,electric fan,charging,warming,induction cooker,computor,electric tools below 1kw. |
Output voltage(DC) |
72v |
||
Height of tower(m) |
6 |
||
Top weight (kg) |
90 |
||
Output Control system |
Wind solar hybrid controller,inverter |
||
Mated solar panel |
72v600w-800w |
|
|
Summary:
The vertical axle start up by breeze,the advanced "H"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power:
Small refrigerator, washing machine, water pump (350), rice cooker, color TV, lighting, electric fan, charger etc.
Power diagram:
Wind and solar system:
Connecting with the net:
Certificate:

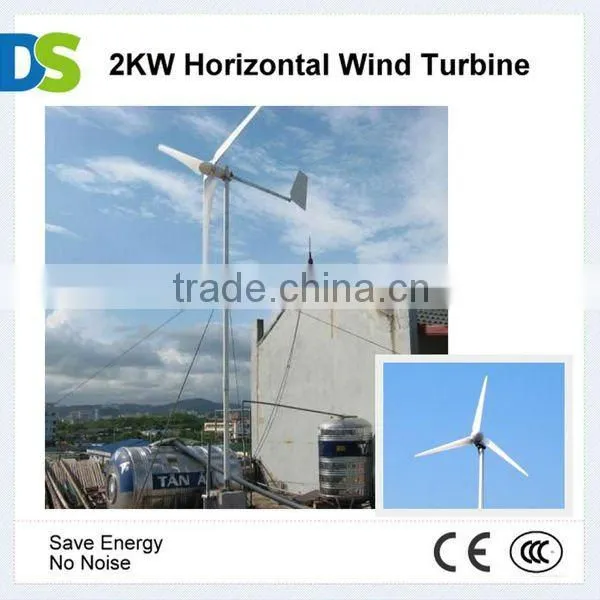

Wind turbine:
:
