Help CenterV 10KW Wind Turbine
Related Products
Specifications
-- no noise-- safety
-- Efficient and clean
-- Long serve life (15-20 years)
-- CE
Working Condition:
The diameter of wind wheel: 4.2m
Blades number: 9
Blades length: 3600mm
Rated rotate speed: 50(r/min)
Rated wind speed: 11 m/s
Start up wind speed: 3m/s
Working wind speed: 3-30(m/s)
Security wind speed: 50m/s
Rated power: 10KW
The max power: 13KW
Output voltage(DC): 220V
The height of tower: 12m
The top part weight: 590kg
Guy cable tower type(mm): 245*6
Output control system: charger control, inverter
Battery reference: 12V150ah, 30 pcs
Summary:
The vertical axle start up by breeze,the advanced "V"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power:
Air-conditioning, refrigerator, washing machine, water pump, rice cooker color TV, lighting, electric fan, charger etc.

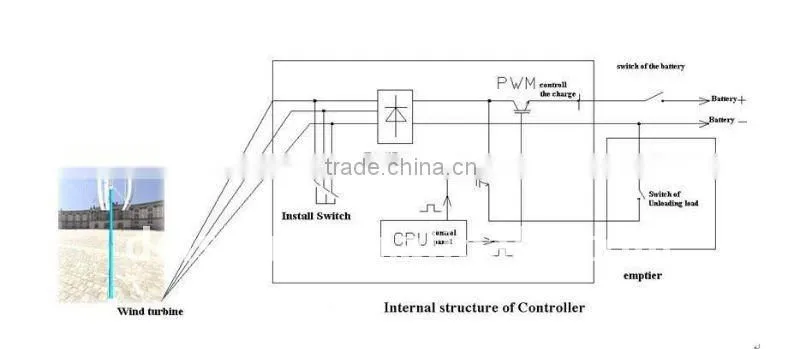

Power diagram:
