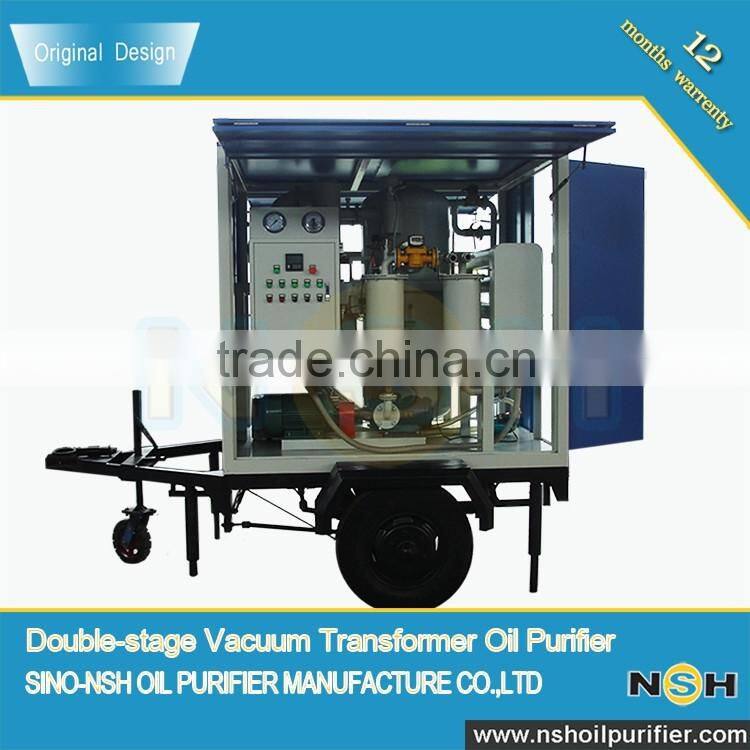

Vacuum Insulation Oil Purifier, Transformer Oil Recycling equipment
Custom Technical Specification
Description
NSH VFD series utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
Technical Specification
Item |
Unit |
VFD-30 |
VFD-50 |
VFD-80 |
VFD-100 |
VFD-150 |
VFD-200 |
VFD-300 |
|
Flow Rate |
L/H |
1800 |
3000 |
4800 |
6000 |
9000 |
12000 |
18000 |
|
Vacuum Range |
Mpa |
_0.092 ~ -0.099 |
|||||||
Working Pressure |
Mpa |
≤ 0.3 |
|||||||
Max Vacuum Range |
Pa |
≤ 50 |
|||||||
Temperature Range |
centidegree |
45 ~80 |
|||||||
Breakdown Voltage |
kV |
≥ 75 |
|||||||
Impurity Size |
μ m |
≤ 5 |
|||||||
Dielectric Loss |
tgδ |
≤ 0.005 |
|||||||
Interfacial Tension |
mN/m |
≥ 40 |
|||||||
Water Content |
PPM |
≤ 5 |
|||||||
Gas Content |
% |
≤ 0.1 |
|||||||
Power Supply |
V |
380V/50Hz( or as needed) |
|||||||
Working Noise |
dB(A) |
≤ 72 |
≤ 78 |
||||||
Heating Power |
Kw |
30 |
48 |
72 |
90 |
120 |
180 |
240 |
|
Total Power |
Kw |
33 |
52 |
77 |
96 |
128 |
188 |
252 |
|
Pipeline Diameter |
mm |
DN20 |
DN25 |
DN32 |
DN32 |
DN40 |
DN50 |
DN65 |
|
Net Weight |
Kg |
600 |
800 |
1000 |
1300 |
1800 |
2100 |
2400 |
|
Size |
length |
mm |
1500 |
1600 |
1700 |
1900 |
2200 |
2300 |
2350 |
width |
mm |
1100 |
1400 |
1500 |
1600 |
1700 |
1750 |
1850 |
|
high |
mm |
1750 |
1800 |
1850 |
1900 |
2100 |
2250 |
2250 |
|
Relative Series
VFD sieres: Insulation Oil Purifier Series
TF sieres: Turbine Oil Purifier Series
LV sieres: Lubrication Oil Purifier Series
GER sieres: Used Engine Oil Regeneration System
VFD series:
Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
GER series:
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
TF series:
Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series:
Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
More information about us you may be interested in ~
We pacakage the machine in a wooden case, suit to long distance sea transportation. Usually, the shipping time would be 20 to 30 days.
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992. NSH is located at Chongqing China where the third biggest river of the world, Yangtze, passes through it. The transportation is very convenient. Our vision is to be a first class company in the world; we will work hard to pursue it step by step.
We are Manufacture with high and new technology and own letter patent. The qualtiy of the products are guaranteed.
So far, we have a lot of clients from many countries in Middle East area, South Asia area, Southern East Asia area as well as Europe and Africa and America. You, as our potential client, are warmly welcome.
